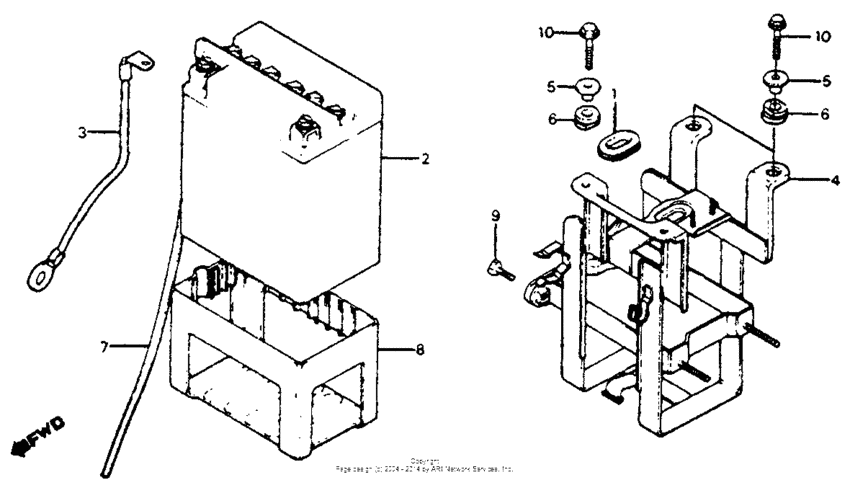

Battery Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
2
|
2
31500-425-672AH Battery assy |
31500-425-672AH |
US $85.56 |
||
|
3
|
3
32601-MA3-840
Cable
|
32601-MA3-840 |
— | ||
|
4
|
4
50320-MA5-670
Box comp.,battery
|
50320-MA5-670 |
— | ||
|
5
|
5
50324-425-010 Collar (6.3x13) |
50324-425-010 |
from US $4 |
||
|
6
|
6
50328-425-000 Rubber a, battery box |
50328-425-000 |
from US $3.58 |
||
|
7
|
7
50328-461-770
Tube,battery
|
50328-461-770 |
— | ||
|
8
|
8
50334-461-770
Cushion,battery
|
50334-461-770 |
— | ||
|
9
|
9
92301-06012-0A BoltRECESSED, 6X12 |
92301-06012-0A |
from US $0.52 |
||
|
10
|
10
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
