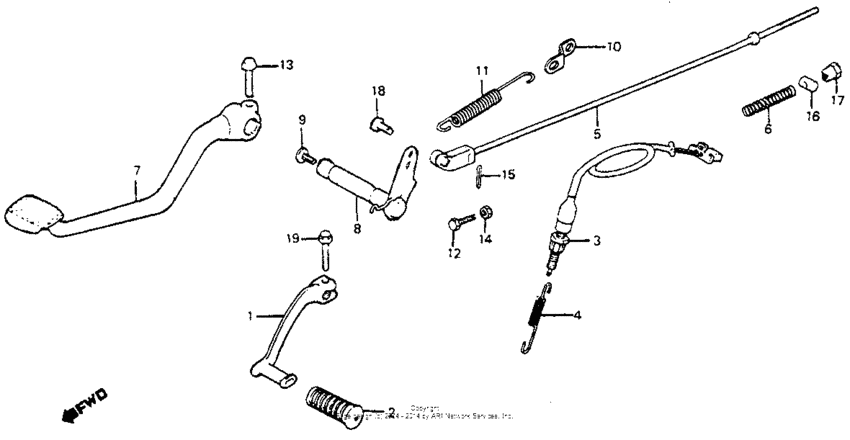

Brake pedal + gearshift pedal Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24701-ME1-670
Pedal,gear change
|
24701-ME1-670 |
— | ||
|
2
|
2
24781-419-000 Rubber |
24781-419-000 |
from US $5.18 |
||
|
3
|
3
35350-KA2-405 Switch, rr. stop |
35350-KA2-405 |
from US $17 |
||
|
4
|
4
35357-ME1-670
Spring,stop sw.
|
35357-ME1-670 |
— | ||
|
5
|
5
43450-425-000
Rod,rr.brake
|
43450-425-000 |
— | ||
|
6
|
6
43472-460-840
Spring,brake rod
|
43472-460-840 |
— | ||
|
7
|
7
46500-ME1-670
Pedal,rr.brake
|
46500-ME1-670 |
— | ||
|
8
|
8
46510-ME1-670
Spindle, rr. brake
|
46510-ME1-670 |
— | ||
|
9
|
9
46511-460-840
Cap,rr.brk spindl
|
46511-460-840 |
— | ||
|
10
|
10
46513-ME1-670
Plate
|
46513-ME1-670 |
— | ||
|
11
|
11
46514-425-010
Spg,brake pedal
|
46514-425-010 |
— | ||
|
12
|
12
90183-438-000 Bolt (8x26) |
90183-438-000 |
from US $4.40 |
||
|
13
|
13
92140-06040
Bolt,hex,6x40
|
92140-06040 |
— | ||
|
14
|
14
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
15
|
15
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
16
|
16
9501532001 Joint b, brake arm |
9501532001 |
from US $0.74 |
||
|
17
|
17
9501542000 Nut b, brake rod adjusting |
9501542000 |
from US $1.48 |
||
|
18
|
18
9501552000 Pin b, brake rod joint |
9501552000 |
from US $1.48 |
||
|
19
|
19
96001-0602002 Bolt, flange, 6x20 |
96001-0602002 |
from US $0.78 |
