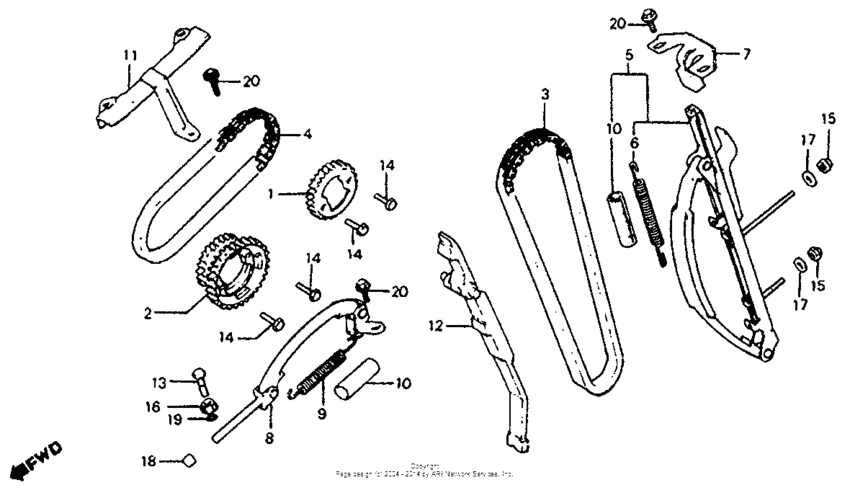

Cam chain + tensioner Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-MA3-000
Sprocket,in.cam
|
14321-MA3-000 |
— | ||
|
2
|
2
14322-425-020
Sprocket,ex.cam
|
14322-425-020 |
— | ||
|
3
|
3
14401-425-024
Chain a,cam
|
14401-425-024 |
— | ||
|
4
|
4
14402-438-014
Chain b,cam
|
14402-438-014 |
— | ||
|
5
|
5
14500-425-020 Tensioner,cam chain |
14500-425-020 |
US $198.56 |
||
|
6
|
6
14514-425-010
Spg.b,tensioner
|
14514-425-010 |
— | ||
|
7
|
7
14521-425-010
Pl,tensioner set
|
14521-425-010 |
— | ||
|
8
|
8
14530-MG5-670
Tens.b,cam chain
|
14530-MG5-670 |
— | ||
|
9
|
9
14538-425-000 Spg b,tensioner |
14538-425-000 |
from US $6.81 |
||
|
10
|
10
14539-425-000 Tube,tension.spg. |
14539-425-000 |
US $6.81 |
||
|
11
|
11
14541-425-020
Guide b,cam chain
|
14541-425-020 |
— | ||
|
12
|
12
14620-425-010 Guide,cam chain |
14620-425-010 |
US $40.39 |
||
|
13
|
13
90021-ME1-670
Bolt
|
90021-ME1-670 |
— | ||
|
14
|
14
90081-425-000
Bolt,knock,7x14
|
90081-425-000 |
— | ||
|
15
|
15
90201-415-000 Nut, cap, 6mm |
90201-415-000 |
from US $3.03 |
||
|
16
|
16
90202-ME1-670
Nut, flange (10mm)
|
90202-ME1-670 |
— | ||
|
17
|
17
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.04 |
||
|
18
|
18
91208-422-003 Plug,selg.11.5x7 |
91208-422-003 |
from US $7.31 |
||
|
19
|
19
91301-PC9-003 O-ring7.7X2.3 (ARAI) |
91301-PC9-003 |
from US $2 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
