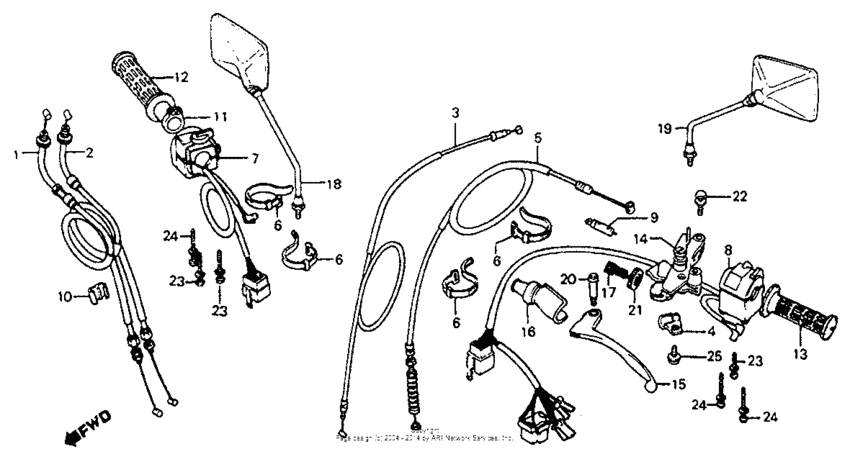

Control levers + switches + cables Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17910-425-405
Cable A, Throttle
|
17910-425-405 |
— | ||
|
2
|
2
17920-425-030
Cable b,throttle
|
17920-425-030 |
— | ||
|
3
|
3
17950-ME1-670
Cable comp.,choke
|
17950-ME1-670 |
— | ||
|
4
|
4
17963-422-000
Holder,choke
|
17963-422-000 |
— | ||
|
5
|
5
22870-ME1-670 Cable comp,clutch |
22870-ME1-670 |
US $34.41 |
||
|
6
|
6
32161-404-000 Band b1, wire |
32161-404-000 |
from US $1.73 |
||
|
7
|
7
35130-MA1-670
Sw.,start.kill
|
35130-MA1-670 |
— | ||
|
8
|
8
35200-ME1-670
Sw.assy,winker
|
35200-ME1-670 |
— | ||
|
9
|
9
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
10
|
10
46465-422-000
Clip,cable
|
46465-422-000 |
— | ||
|
11
|
11
53141-300-010 Pipe, throttle grip |
53141-300-010 |
from US $13.87 |
||
|
12
|
12
53165-390-780 Grip,r.handle |
53165-390-780 |
from US $13.46 |
||
|
13
|
13
53166-390-780 Grip,l.handle |
53166-390-780 |
from US $13.46 |
||
|
14
|
14
53170-MA2-000
Brkt,hndl.lever
|
53170-MA2-000 |
— | ||
|
15
|
15
53178-MA6-000 Lev,l.strg.hndl |
53178-MA6-000 |
US $16.73 |
||
|
16
|
16
53180-422-020 Cover,hndl.lever |
53180-422-020 |
US $16.33 |
||
|
17
|
17
53192-422-000
Bolt,cable adj.
|
53192-422-000 |
— | ||
|
18
|
18
88110-ME1-670
Mirror,r.back
|
88110-ME1-670 |
— | ||
|
19
|
19
88120-ME1-670
Mirror,l.back
|
88120-ME1-670 |
— | ||
|
20
|
20
90113-438-000 Bolt, l |
90113-438-000 |
from US $3.87 |
||
|
21
|
21
90321-422-000
Nut,fixing
|
90321-422-000 |
— | ||
|
22
|
22
93401-0602507 Bolt-washer (6x25) |
93401-0602507 |
US $0.59 |
||
|
23
|
23
93891-0503007 Screw-washer (5x30) |
93891-0503007 |
from US $0.52 |
||
|
24
|
24
93891-050-450-7 Screw-washer, 5x45 |
93891-050-450-7 |
from US $0.59 |
||
|
25
|
25
93893-050-180-7 Screw-washer,5x18 |
93893-050-180-7 |
US $0.52 |
