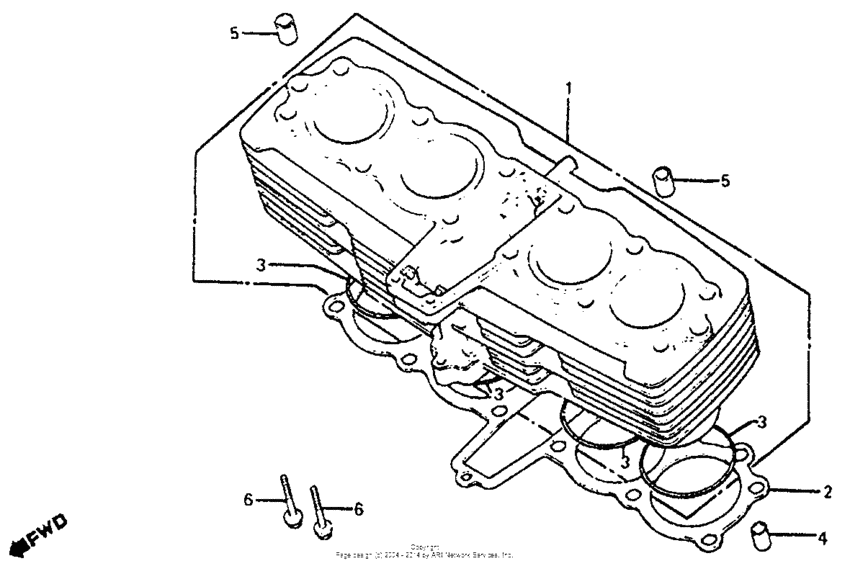

Cylinder Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-MA5-770
Cylinder
|
12100-MA5-770 |
— | ||
|
2
|
2
12191-425-306 Gasket, cylinder |
12191-425-306 |
US $22.98 |
||
|
3
|
3
91302-425-000 O-ring,66.8x2 |
91302-425-000 |
from US $6.66 |
||
|
4
|
4
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
5
|
5
94301-12200 Dowel pin12X20 |
94301-12200 |
from US $1.04 |
||
|
6
|
6
95701-0603207 Bolt, flange, 6x32 |
95701-0603207 |
from US $0.59 |
