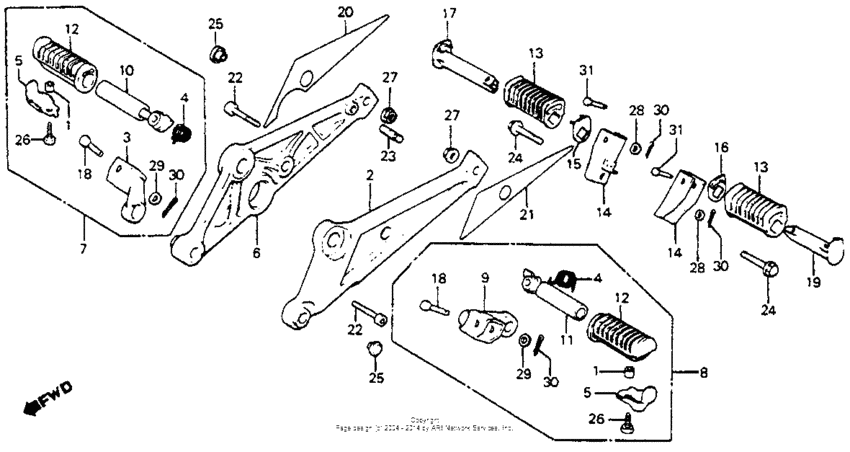

Footpegs Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37243-323-000 Collar,meter set |
37243-323-000 |
US $3.33 |
||
|
2
|
2
50610-ME1-670
Holder, l. footpeg
|
50610-ME1-670 |
— | ||
|
3
|
3
50615-ME1-670
Bar, r. footpeg
|
50615-ME1-670 |
— | ||
|
4
|
4
50617-ME1-670
Spg.,step return
|
50617-ME1-670 |
— | ||
|
5
|
5
50619-KC2-770
Stopper,step rubb
|
50619-KC2-770 |
— | ||
|
6
|
6
50620-ME1-670
Holder, r. footpeg
|
50620-ME1-670 |
— | ||
|
7
|
7
50630-ME1-670
Step assy.,r.main
|
50630-ME1-670 |
— | ||
|
8
|
8
50640-ME1-670 Step assy.,l.main |
50640-ME1-670 |
US $78.25 |
||
|
9
|
9
50641-ME1-670
Bar, l. footpeg
|
50641-ME1-670 |
— | ||
|
10
|
10
50642-ME1-670
Arm comp.,r.step
|
50642-ME1-670 |
— | ||
|
11
|
11
50650-ME1-670
Arm, l. footpeg
|
50650-ME1-670 |
— | ||
|
12
|
12
50661-425-670 Rubber,step |
50661-425-670 |
from US $12.58 |
||
|
13
|
13
50710-461-770 Rubber |
50710-461-770 |
from US $10.18 |
||
|
14
|
14
50711-ME1-670
Brkt,pillion step
|
50711-ME1-670 |
— | ||
|
15
|
15
50712-438-730 Washer, r |
50712-438-730 |
US $8.01 |
||
|
16
|
16
50713-438-730 Washer, l |
50713-438-730 |
US $8.01 |
||
|
17
|
17
50715-460-840
Bar,r.pilli.step
|
50715-460-840 |
— | ||
|
18
|
18
50716-445-000
Pin,step joint
|
50716-445-000 |
— | ||
|
19
|
19
50718-460-840
Bar,l.pilli.step
|
50718-460-840 |
— | ||
|
20
|
20
87504-ME1-670
Mark,muff caution
|
87504-ME1-670 |
— | ||
|
21
|
21
87507-ME1-670
Mark
|
87507-ME1-670 |
— | ||
|
22
|
22
90109-ME1-670
Bolt, socket (10x20)
|
90109-ME1-670 |
— | ||
|
23
|
23
90117-426-000
Bolt,rr.brake spg
|
90117-426-000 |
— | ||
|
24
|
24
90182-438-000
Bolt,flange 10x40
|
90182-438-000 |
— | ||
|
25
|
25
91456-ME1-670 Cap (10mm) |
91456-ME1-670 |
from US $2.59 |
||
|
26
|
26
92101-06018-0A Bolt, hex., 6x18 |
92101-06018-0A |
from US $0.44 |
||
|
27
|
27
94050-10000 NutFLANGE, 10MM |
94050-10000 |
from US $0.74 |
||
|
28
|
28
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
29
|
29
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
30
|
30
9420116250 Pin, cotter (1.6x25) |
9420116250 |
from US $0.44 |
||
|
31
|
31
9501581000 Pin a, pillion step |
9501581000 |
from US $1.48 |
