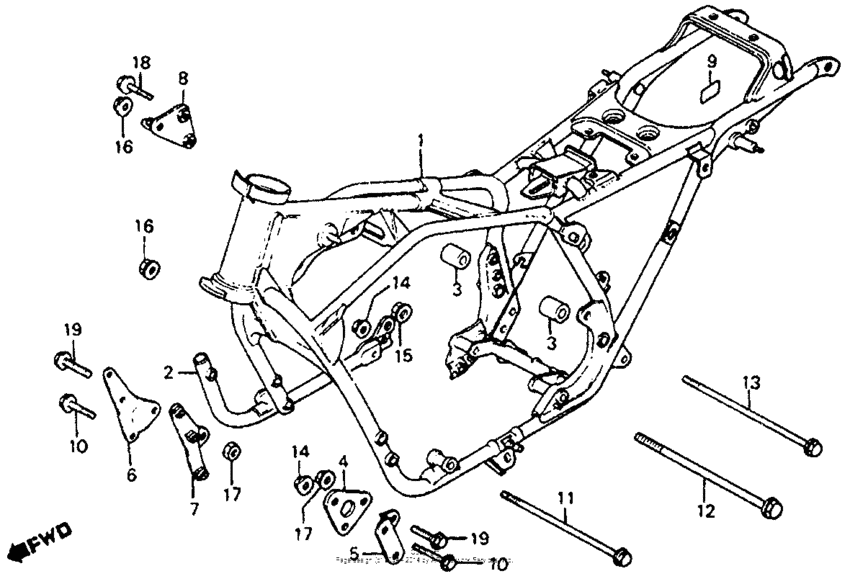

Frame Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
50100-ME1-670ZA
Frame *pb116m*
|
50100-ME1-670ZA |
— | ||
|
1
|
1
50100-ME1-771ZA
Frame *nh1*
|
50100-ME1-771ZA |
— | ||
|
2
|
2
50122-ME1-670ZA
Pipe, joint *pb116m*
|
50122-ME1-670ZA |
— | ||
|
2
|
2
50122-ME1-670ZB
Pipe, joint *b100mu*
|
50122-ME1-670ZB |
— | ||
|
3
|
3
50327-ME1-670
Collar, r. engine
|
50327-ME1-670 |
— | ||
|
4
|
4
50351-438-000ZA
Pl,fr.hang.*nh-1*
|
50351-438-000ZA |
— | ||
|
5
|
5
50352-438-000ZA
Pl,fr.hang.*nh-1*
|
50352-438-000ZA |
— | ||
|
6
|
6
50353-438-000ZA
Pl,hanger *nh-1*
|
50353-438-000ZA |
— | ||
|
7
|
7
50354-438-010ZA
Pl,hanger *nh-1*
|
50354-438-010ZA |
— | ||
|
8
|
8
50356-425-020ZA
Brkt,hanger*nh-1*
|
50356-425-020ZA |
— | ||
|
9
|
9
87506-438-670
Mark,bat.caution
|
87506-438-670 |
— | ||
|
10
|
10
90156-KA6-770
Bolt, flange (8x62)
|
90156-KA6-770 |
— | ||
|
11
|
11
90152-ME1-670
Bolt, flg (10x330)
|
90152-ME1-670 |
— | ||
|
12
|
12
90157-ME1-670
Bolt (12x287)
|
90157-ME1-670 |
— | ||
|
13
|
13
90158-ME1-670
Bolt, flg (10x284)
|
90158-ME1-670 |
— | ||
|
14
|
14
90208-425-870 Nut, flange, 8mm |
90208-425-870 |
from US $2.89 |
||
|
15
|
15
90212-438-000
Nut,fla.cap 12mm
|
90212-438-000 |
— | ||
|
16
|
16
90303-428-900 Nut, flange (10mm) |
90303-428-900 |
from US $1.89 |
||
|
17
|
17
9403010070 Nut, hex. (10mm) |
9403010070 |
from US $0.52 |
||
|
18
|
18
95801-080-550-7 Bolt, flange (8x55) |
95801-080-550-7 |
from US $0.81 |
||
|
19
|
19
95801-100-600-7 Bolt, flange (10x60) |
95801-100-600-7 |
from US $0.89 |
