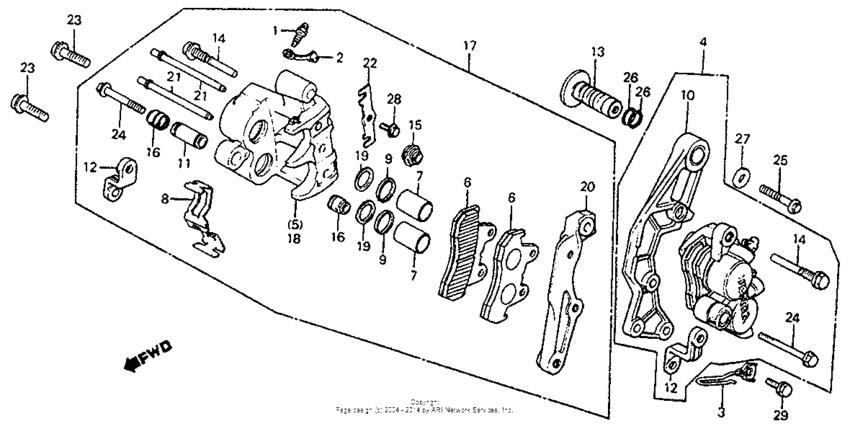

Front brake caliper Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
451A0-MC7-670 Set brake pad |
451A0-MC7-670 |
US $51.17 |
||
|
1
|
1
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
2
|
2
43353-461-771 CapBLEEDER |
43353-461-771 |
from US $1.40 |
||
|
3
|
3
44832-ME1-670
Clamp
|
44832-ME1-670 |
— | ||
|
4
|
4
45100-MA5-772 Caliper assy,l.fr |
45100-MA5-772 |
US $360.81 |
||
|
4
|
4
45100-ME1-673
Caliper, l. fr.
|
45100-ME1-673 |
— | ||
|
5
|
5
45101-MA3-006
Caliper comp.,l.
|
45101-MA3-006 |
— | ||
|
5
|
5
45101-MA5-771
Caliper, l.
|
45101-MA5-771 |
— | ||
|
6
|
6
45105-KL8-014 Pad comp.,fr.(jb) |
45105-KL8-014 |
from US $37.04 |
||
|
7
|
7
45107-MA3-006 Piston |
45107-MA3-006 |
from US $32.64 |
||
|
8
|
8
45108-MA3-006 Spring, pad |
45108-MA3-006 |
from US $7.40 |
||
|
8
|
8
45108-MA5-771
Spring, pad
|
45108-MA5-771 |
— | ||
|
9
|
9
45109-166-006 Dust seal |
45109-166-006 |
from US $4 |
||
|
10
|
10
45110-MA5-771
Bracket, l. fr.
|
45110-MA5-771 |
— | ||
|
10
|
10
45110-ME1-671
Bracket,l.fr
|
45110-ME1-671 |
— | ||
|
11
|
11
45111-MA3-006 Sleeve |
45111-MA3-006 |
from US $8.73 |
||
|
11
|
11
45111-MA5-771
Sleeve
|
45111-MA5-771 |
— | ||
|
12
|
12
45113-ME1-670
Bridge,caliper
|
45113-ME1-670 |
— | ||
|
13
|
13
45114-MB7-610
Sleeve,fr.caliper
|
45114-MB7-610 |
— | ||
|
14
|
14
45131-MA3-006 Pin, bolt |
45131-MA3-006 |
from US $11.99 |
||
|
15
|
15
45133-MA3-006 Boot b |
45133-MA3-006 |
from US $2.54 |
||
|
15
|
15
45133-MA5-771
Boot, pin
|
45133-MA5-771 |
— | ||
|
16
|
16
45133-166-016 Boot, pin |
45133-166-016 |
from US $3.18 |
||
|
16
|
16
45134-MA5-771 Boot, bolt |
45134-MA5-771 |
from US $5.03 |
||
|
17
|
17
45200-MA5-406
Caliper, r. fr.
|
45200-MA5-406 |
— | ||
|
17
|
17
45200-ME1-673
Caliper assy.,r,f
|
45200-ME1-673 |
— | ||
|
18
|
18
45201-MA3-006
Caliper comp.,r.
|
45201-MA3-006 |
— | ||
|
18
|
18
45201-MA5-771
Body, r. caliper
|
45201-MA5-771 |
— | ||
|
19
|
19
45209-166-006 SealPISTON |
45209-166-006 |
from US $4.07 |
||
|
19
|
19
45209-183-003 SealPISTON |
45209-183-003 |
from US $6.96 |
||
|
20
|
20
45210-MA5-006
Bracket,r.fr.
|
45210-MA5-006 |
— | ||
|
20
|
20
45210-MA5-771
Bracket, r
|
45210-MA5-771 |
— | ||
|
21
|
21
45215-MA3-006 Pin (4.0mm) |
45215-MA3-006 |
from US $7.40 |
||
|
21
|
21
45215-MA5-771
Pin, pad retaining
|
45215-MA5-771 |
— | ||
|
22
|
22
45217-MA3-006 Plate |
45217-MA3-006 |
from US $4.24 |
||
|
22
|
22
45217-MA5-771
Plate
|
45217-MA5-771 |
— | ||
|
23
|
23
90164-460-840
Bolt, socket (10x40)
|
90164-460-840 |
— | ||
|
24
|
24
90180-MN8-006 Bolt, flange (8x49) |
90180-MN8-006 |
from US $2.41 |
||
|
24
|
24
90180-MA3-660 Bolt, flange, 8x55 |
90180-MA3-660 |
from US $5.40 |
||
|
25
|
25
90154-KT7-000
Bolt, flange (10x53)
|
90154-KT7-000 |
— | ||
|
26
|
26
91347-PY3-000 O-ring16.8X1.9 |
91347-PY3-000 |
from US $1.67 |
||
|
27
|
27
9410210000 Washer, plain, 10mm |
9410210000 |
from US $0.44 |
||
|
28
|
28
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
29
|
29
95701-0802007 Bolt, flange, 8x20 |
95701-0802007 |
from US $0.59 |
