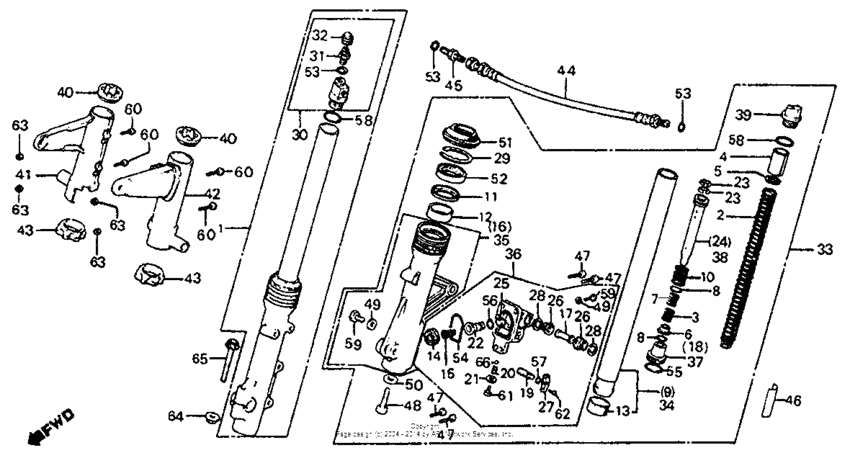

Front shock absorber Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-ME1-671
S/abs assy., r. fr.
|
51400-ME1-671 |
— | ||
|
2
|
2
51401-ME1-671
Spring,fr.cushion
|
51401-ME1-671 |
— | ||
|
3
|
3
51402-MA6-003 Spg.b,fr.cushion |
51402-MA6-003 |
US $37.54 |
||
|
4
|
4
51402-ME1-671
Collar, spring
|
51402-ME1-671 |
— | ||
|
5
|
5
51403-MA0-771 Seat, spring |
51403-MA0-771 |
from US $3.55 |
||
|
6
|
6
51403-MA6-003
Valve, oil lock
|
51403-MA6-003 |
— | ||
|
7
|
7
51404-MA6-003
Spring
|
51404-MA6-003 |
— | ||
|
8
|
8
51405-MC7-003 Ring, stopper |
51405-MC7-003 |
from US $2.24 |
||
|
9
|
9
51410-ME1-671
Pipe comp,fr.fork
|
51410-ME1-671 |
— | ||
|
10
|
10
51412-ME1-671
Spg,fr.fork rebou
|
51412-ME1-671 |
— | ||
|
11
|
11
51412-461-003 Ring, back-up |
51412-461-003 |
from US $4.28 |
||
|
12
|
12
51414-MN4-003 Bush, guide |
51414-MN4-003 |
from US $7.55 |
||
|
13
|
13
51415-461-003 Bush,slider |
51415-461-003 |
from US $12.49 |
||
|
14
|
14
51417-MJ0-013 Packing |
51417-MJ0-013 |
US $5.77 |
||
|
15
|
15
51418-ME1-671
Spring,piston
|
51418-ME1-671 |
— | ||
|
16
|
16
51421-ME1-671
Case,r.bottom
|
51421-ME1-671 |
— | ||
|
17
|
17
51423-MC7-003
Collar,piston
|
51423-MC7-003 |
— | ||
|
18
|
18
51432-MA6-003
Piece,oil lock
|
51432-MA6-003 |
— | ||
|
19
|
19
51433-MC7-003
Rod,adjuster
|
51433-MC7-003 |
— | ||
|
20
|
20
51434-MC7-003
Spring, click
|
51434-MC7-003 |
— | ||
|
21
|
21
51435-MC7-003 Washer (5mm) |
51435-MC7-003 |
from US $2.59 |
||
|
22
|
22
51436-MC7-013
Piston
|
51436-MC7-013 |
— | ||
|
22
|
22
51436-ME1-671
Piston
|
51436-ME1-671 |
— | ||
|
23
|
23
51437-MA0-771 Ring,piston |
51437-MA0-771 |
US $7.84 |
||
|
24
|
24
51440-ME1-671
Pipe, seat
|
51440-ME1-671 |
— | ||
|
25
|
25
51441-MC7-003 Rubber, stopper |
51441-MC7-003 |
from US $2.96 |
||
|
26
|
26
51442-MC7-003 Boot, piston case |
51442-MC7-003 |
from US $9.62 |
||
|
27
|
27
51444-MC7-505
Washer b, side
|
51444-MC7-505 |
— | ||
|
28
|
28
51445-MC7-003 Holder, boot |
51445-MC7-003 |
from US $6.79 |
||
|
29
|
29
51447-461-003 Circlip (50mm) |
51447-461-003 |
from US $3.78 |
||
|
30
|
30
51450-460-841
Bolt assy,fr.fork
|
51450-460-841 |
— | ||
|
31
|
31
51456-469-013 Valve, air |
51456-469-013 |
US $41.09 |
||
|
32
|
32
51457-469-000
Cap assy., air valve
|
51457-469-000 |
— | ||
|
33
|
33
51500-ME1-671
S/abs assy., l. fr.
|
51500-ME1-671 |
— | ||
|
34
|
34
51510-ME1-671
Pipe comp.,l.fr.
|
51510-ME1-671 |
— | ||
|
35
|
35
51521-ME1-671
Case,l.bottom
|
51521-ME1-671 |
— | ||
|
36
|
36
51530-ME1-671
Case comp.,piston
|
51530-ME1-671 |
— | ||
|
37
|
37
51532-ME1-671
Piece b,oil lock
|
51532-ME1-671 |
— | ||
|
38
|
38
51540-ME1-671
Pipe b, seat
|
51540-ME1-671 |
— | ||
|
39
|
39
51555-460-841
Bolt,l.fr.fork
|
51555-460-841 |
— | ||
|
40
|
40
51601-461-000
Up.rub,fork cover
|
51601-461-000 |
— | ||
|
41
|
41
51602-461-750
Cover,r.fr.fork
|
51602-461-750 |
— | ||
|
42
|
42
51606-461-750
Cover,l.fr.fork
|
51606-461-750 |
— | ||
|
43
|
43
51622-323-000 Cushion b,cover |
51622-323-000 |
US $9.28 |
||
|
44
|
44
53137-ME1-671
Hose, fr. fork joint
|
53137-ME1-671 |
— | ||
|
45
|
45
53139-463-000 Connector |
53139-463-000 |
US $26.38 |
||
|
46
|
46
87517-MA4-670
Label, fr.
|
87517-MA4-670 |
— | ||
|
47
|
47
96700-0601817 Bolt, socket (6x18) |
96700-0601817 |
US $0.59 |
||
|
48
|
48
90116-ME1-671
Bolt, socket (8mm)
|
90116-ME1-671 |
— | ||
|
49
|
49
90543-273-000 Gasket, fr. |
90543-273-000 |
from US $2.15 |
||
|
50
|
50
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
51
|
51
91254-KAZ-003 Dust seal |
91254-KAZ-003 |
from US $14.21 |
||
|
52
|
52
91255-461-003 Oil seal,37x50x11 |
91255-461-003 |
from US $17.14 |
||
|
53
|
53
91305-323-000 O-ring, 5.8x1.9 |
91305-323-000 |
from US $2.22 |
||
|
53
|
53
91318-ME5-003 O-ring, 5.6x1.9 (arai) |
91318-ME5-003 |
from US $3.18 |
||
|
54
|
54
91302-657-000 O-ring53.8X3.1 |
91302-657-000 |
from US $3.99 |
||
|
55
|
55
91306-MC7-003 O-ring e,33.5x2 |
91306-MC7-003 |
from US $3.67 |
||
|
56
|
56
91311-PH7-003 O-ring13.8X2.4 (NOK) |
91311-PH7-003 |
from US $1.55 |
||
|
57
|
57
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
58
|
58
91344-PC9-004 O-ring29X2.4 (NOK) |
91344-PC9-004 |
from US $2.44 |
||
|
59
|
59
92101-06008-0A Bolt, hex., 6x8 |
92101-06008-0A |
from US $0.44 |
||
|
60
|
60
93500-040-200-B Screw,cross,4x20 |
93500-040-200-B |
US $0.52 |
||
|
61
|
61
93500-050-100-A ScrewPAN, 5X10 |
93500-050-100-A |
from US $0.37 |
||
|
62
|
62
93600-040-101-B Screw,flat,4x10 |
93600-040-101-B |
US $0.52 |
||
|
63
|
63
94001-040-200-S Nut, hex., 4mm |
94001-040-200-S |
US $0.44 |
||
|
64
|
64
94050-08000 NutFLANGE, 8MM |
94050-08000 |
from US $0.52 |
||
|
65
|
65
95701-080-500-0 BoltFLANGE, 8X50 |
95701-080-500-0 |
from US $0.81 |
||
|
66
|
66
9621105000 Ball, steel, #5 (5/32) |
9621105000 |
from US $0.15 |
