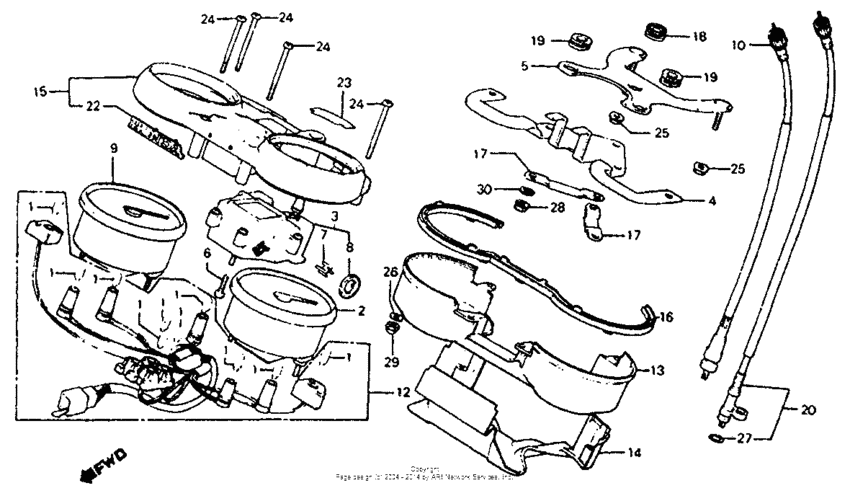

Instruments Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
37237-SA5-003 Bulb14V 3.4W) (NS |
37237-SA5-003 |
from US $2.15 |
||
|
2
|
2
37200-MA4-673
Speedometer assy
|
37200-MA4-673 |
— | ||
|
3
|
3
37210-425-671
Odometer assy
|
37210-425-671 |
— | ||
|
4
|
4
37211-425-009
Stay a,meter set
|
37211-425-009 |
— | ||
|
5
|
5
37212-ME1-671
Stay b
|
37212-ME1-671 |
— | ||
|
6
|
6
37213-425-000
Screw,pan,4x20
|
37213-425-000 |
— | ||
|
7
|
7
37214-425-009
Joint.odometer
|
37214-425-009 |
— | ||
|
8
|
8
37215-425-000
Rub,sub comb.met
|
37215-425-000 |
— | ||
|
9
|
9
37250-ME1-671
Tachometer assy.
|
37250-ME1-671 |
— | ||
|
10
|
10
37260-ME8-000
Cable,tachometer
|
37260-ME8-000 |
— | ||
|
12
|
12
37612-ME1-671
Cord comp
|
37612-ME1-671 |
— | ||
|
13
|
13
37617-460-841
Cover,meter lwr
|
37617-460-841 |
— | ||
|
14
|
14
37618-460-841 Cover,meter lwr |
37618-460-841 |
US $19.74 |
||
|
15
|
15
37620-460-841
Cover,meter upper
|
37620-460-841 |
— | ||
|
16
|
16
37621-425-009
Ring,meter cover
|
37621-425-009 |
— | ||
|
17
|
17
37622-425-009
Clamp,cord
|
37622-425-009 |
— | ||
|
18
|
18
37630-425-009
Rubber,cushion
|
37630-425-009 |
— | ||
|
19
|
19
37631-425-009
Rubber,cushion
|
37631-425-009 |
— | ||
|
20
|
20
44830-ME5-405 Cable, speedometer |
44830-ME5-405 |
from US $36.86 |
||
|
22
|
22
87106-425-009
Emblem,meter top
|
87106-425-009 |
— | ||
|
23
|
23
87523-410-790
Label,brk.caution
|
87523-410-790 |
— | ||
|
24
|
24
90150-425-000
Screw,pan,4x45
|
90150-425-000 |
— | ||
|
25
|
25
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
26
|
26
90545-323-700 Washer, 6.5x18 |
90545-323-700 |
from US $2.74 |
||
|
27
|
27
91306-PJ4-000 O-ring6.8X1.9 |
91306-PJ4-000 |
from US $1.78 |
||
|
28
|
28
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
29
|
29
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
30
|
30
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
