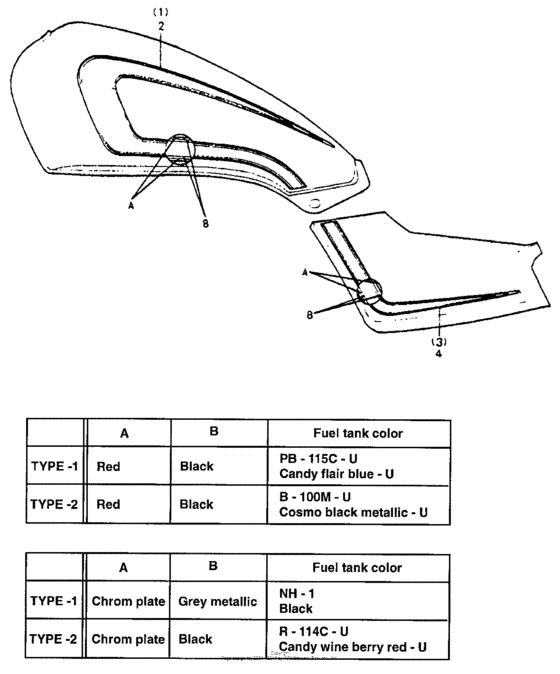

Stripe Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17508-ME1-770ZA
Stripe.r *type-1*
|
17508-ME1-770ZA |
— | ||
|
1
|
1
17508-ME1-770ZB
Stripe.r.*type-2*
|
17508-ME1-770ZB |
— | ||
|
2
|
2
17509-ME1-770ZA
Stripe.l.*type-1*
|
17509-ME1-770ZA |
— | ||
|
2
|
2
17509-ME1-770ZB
Strip,l.*type-2*
|
17509-ME1-770ZB |
— | ||
|
3
|
3
87403-ME1-770ZA
Stripe, r. (type1)
|
87403-ME1-770ZA |
— | ||
|
3
|
3
87403-ME1-770ZB
Stripe,r.*type-2*
|
87403-ME1-770ZB |
— | ||
|
4
|
4
87503-ME1-770ZA
Stripe, l. (type1)
|
87503-ME1-770ZA |
— | ||
|
4
|
4
87503-ME1-770ZB
Stripe,l.*type-2*
|
87503-ME1-770ZB |
— |
