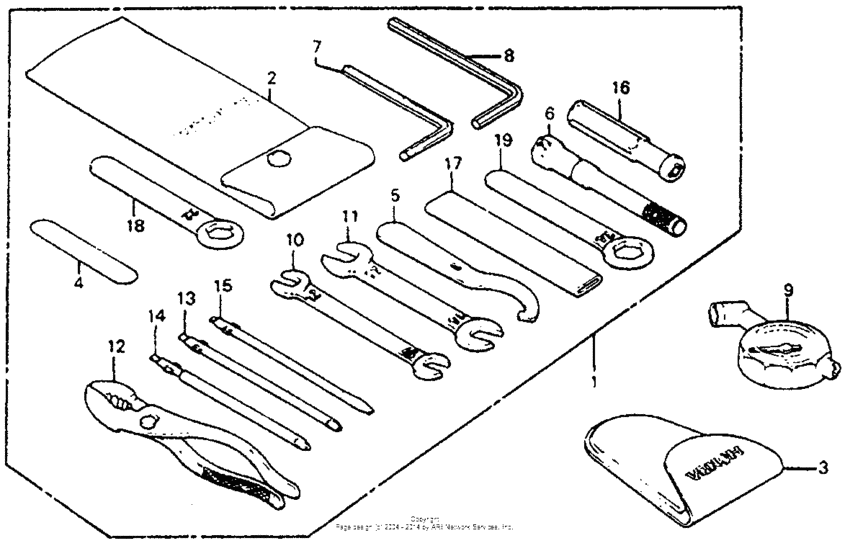

Tools Diagram Honda CB750 Nighthawk
- Year
- 1983
- Model code
- CB750SC A
- Sales region
- USA
- Frame
- JH2RC012*DM100001 - JH2RC012*DM102116
- Engine Capacity
- 750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
89010-ME1-670
Tool set
|
89010-ME1-670 |
— | ||
|
2
|
2
89101-ME5-670
Bag, tool
|
89101-ME5-670 |
— | ||
|
2
|
2
89101-371-013 Bag, tool |
89101-371-013 |
US $6.72 |
||
|
3
|
3
89102-469-003 Bag, air pres ga |
89102-469-003 |
from US $8.73 |
||
|
4
|
4
89103-371-000 Gauge, feeler (0.7) |
89103-371-000 |
from US $3.70 |
||
|
5
|
5
89215-404-670 Wrench, pin |
89215-404-670 |
from US $10.46 |
||
|
6
|
6
89216-323-000
Wrench,plug
|
89216-323-000 |
— | ||
|
7
|
7
89221-371-000 Wrench, hex., 6mm |
89221-371-000 |
from US $7.02 |
||
|
8
|
8
89222-371-000
Wrench, hex. (8mm)
|
89222-371-000 |
— | ||
|
9
|
9
89301-MN5-003 Gauge, air pressure |
89301-MN5-003 |
from US $35.33 |
||
|
10
|
10
99001-10120 Spanner |
99001-10120 |
from US $3.55 |
||
|
11
|
11
99001-14170 Spanner14X17 |
99001-14170 |
from US $4.59 |
||
|
12
|
12
99002-13500
Pliers
|
99002-13500 |
— | ||
| replacement | |||||
|
12
|
12
89210-GBJ-J10 Pliers, 135 (kowa) |
89210-GBJ-J10 |
from US $8.88 |
||
|
13
|
13
99003-10000 Driver1PLUS SCREW(NO.2) |
99003-10000 |
from US $1.41 |
||
|
14
|
14
9900320000 Driver 2, plus screw (no.3) |
9900320000 |
from US $1.55 |
||
|
15
|
15
99003-30000 Driver 3MINUS SCREW (NO.2) |
99003-30000 |
from US $1.41 |
||
|
16
|
16
99003-50000 GripSCREW DRIVER |
99003-50000 |
from US $1.70 |
||
|
17
|
17
99006-12000 Handle (12mm) |
99006-12000 |
from US $4.29 |
||
|
18
|
18
99006-22000 Wrench, eye (22mm) |
99006-22000 |
from US $5.18 |
||
|
19
|
19
9900624000 Wrench, eye (24mm) |
9900624000 |
from US $5.33 |
||
