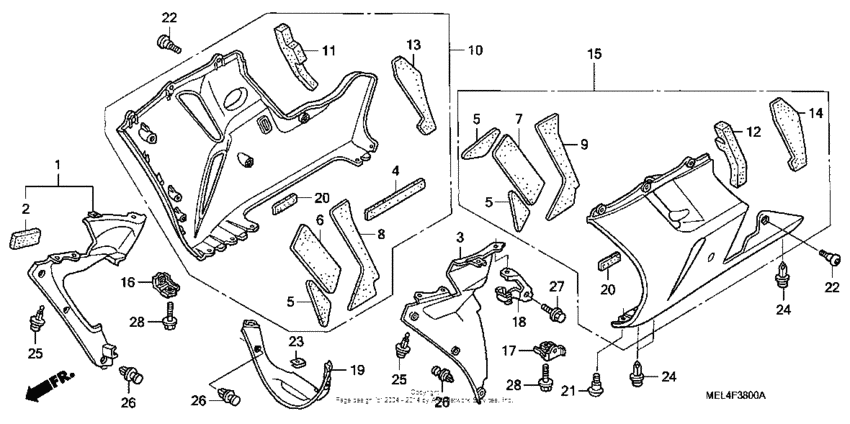

Lower cowl (1) Diagram Honda CBR1000 CBR1000RR Fireblade
- Year
- 2005
- Model code
- CBR1000RR/R 2A
- Sales region
- USA
- Frame
- JH2SC574*5M100001 - JH2SC574*5M199999
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64325-MEL-010 Cowl, r. middle |
64325-MEL-010 |
from US $22.13 |
||
|
2
|
2
64326-MEL-300 Mat, middle cowl |
64326-MEL-300 |
from US $2.87 |
||
|
3
|
3
64375-MEL-010 Cowl, l. middle |
64375-MEL-010 |
US $29.65 |
||
|
4
|
4
64394-MEL-A00 Mat, r. cowl (lower) |
64394-MEL-A00 |
from US $11.54 |
||
|
5
|
5
64395-MEL-A00 Mat a, cowl (lower) |
64395-MEL-A00 |
from US $2.33 |
||
|
6
|
6
64396-MEL-A00 Mat b, r. cowl (lower) |
64396-MEL-A00 |
from US $8.16 |
||
|
7
|
7
64397-MEL-A00 Mat b, l. cowl (lower) |
64397-MEL-A00 |
from US $8.16 |
||
|
8
|
8
64398-MEL-A00 Mat c, r. cowl (lower) |
64398-MEL-A00 |
from US $11.29 |
||
|
9
|
9
64399-MEL-A00 Mat c, l. cowl (lower) |
64399-MEL-A00 |
from US $11.29 |
||
|
10
|
10
64400-MEL-A11ZA Cowl set, r. (type1) |
64400-MEL-A11ZA |
US $624.04 |
||
|
11
|
11
64403-MEL-300 Mat d, r. cowl |
64403-MEL-300 |
from US $6.83 |
||
|
12
|
12
64404-MEL-300 Mat e, l. cowl |
64404-MEL-300 |
from US $6.83 |
||
|
13
|
13
64407-MEL-A00 Mat f, r. cowl (lower) |
64407-MEL-A00 |
from US $6.38 |
||
|
14
|
14
64408-MEL-A00 Mat f, l. cowl (lower) |
64408-MEL-A00 |
from US $6.38 |
||
|
15
|
15
64450-MEL-A11ZA Cowl set, l. (type1) |
64450-MEL-A11ZA |
US $624.04 |
||
|
16
|
16
64541-MEL-000 Stay, r. fr. cowl |
64541-MEL-000 |
from US $5.44 |
||
|
17
|
17
64542-MEL-000 Stay, l. fr. cowl |
64542-MEL-000 |
from US $5.93 |
||
|
18
|
18
64547-MEL-D00 Stay, middle cowl (upper) |
64547-MEL-D00 |
from US $6.85 |
||
|
19
|
19
64560-MEL-000 Cowl (lower) (inner) |
64560-MEL-000 |
from US $22.13 |
||
|
20
|
20
81257-GAZ-300 Insulator |
81257-GAZ-300 |
from US $2.84 |
||
|
21
|
21
90104-MN4-000 Screw (6x19) |
90104-MN4-000 |
from US $2.03 |
||
|
22
|
22
90114-MCJ-000 Screw (6x14) |
90114-MCJ-000 |
from US $2.29 |
||
|
23
|
23
90320-MM5-000 Nut, spring, 6mm |
90320-MM5-000 |
from US $1.87 |
||
|
24
|
24
90683-GR1-003 Clip, body cover |
90683-GR1-003 |
from US $1.35 |
||
|
25
|
25
90683-MBW-003 Clip, body |
90683-MBW-003 |
from US $1.60 |
||
|
26
|
26
91549-MW0-790ZA Clip *nh1* |
91549-MW0-790ZA |
from US $1.60 |
||
|
27
|
27
96300-0601207 Bolt, flange (6x12) |
96300-0601207 |
from US $0.59 |
||
|
28
|
28
96300-0602000 Bolt, flange (6x20) |
96300-0602000 |
from US $0.59 |
