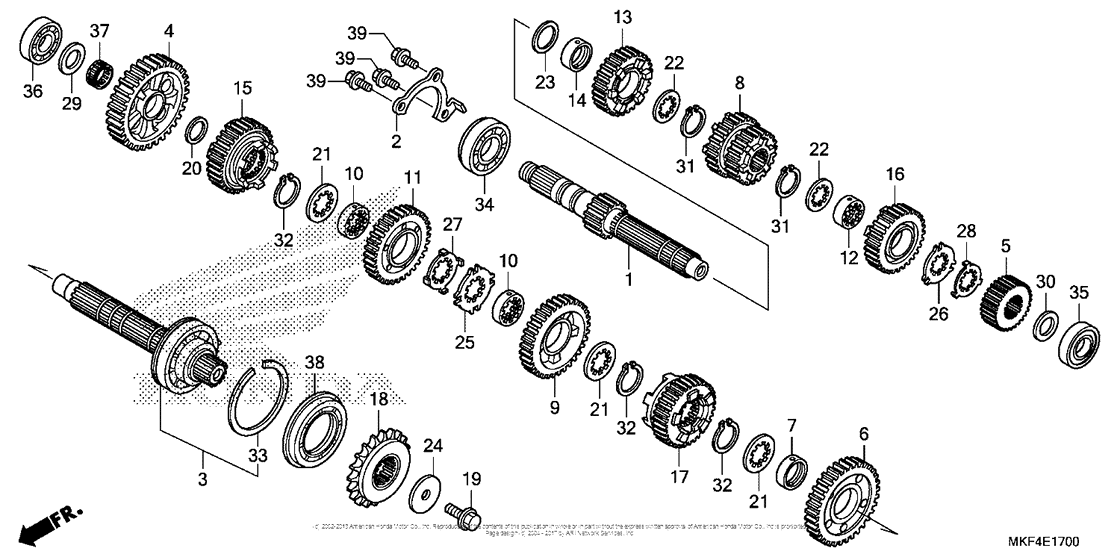

Transmission Diagram Honda CBR1000 CBR1000RR Fireblade
- Year
- 2017
- Model code
- CBR1000RR 2A
- Sales region
- USA
- Frame
- JH2SC770 - HK000001
- Engine Capacity
- 1000
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23211-MKF-D40 MAINSHAFT (14T) |
23211-MKF-D40 |
from US $181.64 |
||
|
2
|
2
23212-MFL-000 Plate |
23212-MFL-000 |
from US $9.18 |
||
|
3
|
3
23220-MFL-000 Countershaft |
23220-MFL-000 |
from US $197.20 |
||
|
4
|
4
23421-MKF-D40 GEAR (32T) |
23421-MKF-D40 |
from US $90.12 |
||
|
5
|
5
23431-MKF-D40 GEAR (18T) |
23431-MKF-D40 |
from US $47.60 |
||
|
6
|
6
23441-MKF-D40 GEAR (32T) |
23441-MKF-D40 |
from US $95.88 |
||
|
7
|
7
23442-MCJ-000 Collar (30x9.5) |
23442-MCJ-000 |
from US $11.40 |
||
|
8
|
8
23451-MKF-D40 GEAR (22T/24T) |
23451-MKF-D40 |
US $130.29 |
||
| replacement | |||||
|
8
|
8
23451-MKF-D70 GEAR (22T/24T) |
23451-MKF-D70 |
from US $114.92 |
||
|
9
|
9
23461-MKF-D40 GEAR (33T) |
23461-MKF-D40 |
US $107.70 |
||
| replacement | |||||
|
9
|
9
23461-MKF-D70 GEAR (33T) |
23461-MKF-D70 |
from US $95.88 |
||
|
10
|
10
23462-MAT-000 Colr, spline (30x11) |
23462-MAT-000 |
from US $13.47 |
||
|
11
|
11
23481-MKF-D40 GEAR (32T) |
23481-MKF-D40 |
from US $94.35 |
||
|
12
|
12
23482-MR7-000 Collar (28x13.5) |
23482-MR7-000 |
from US $14.82 |
||
|
13
|
13
23491-MKF-D40 GEAR (28T) |
23491-MKF-D40 |
from US $88.01 |
||
|
14
|
14
23495-MM5-000 Collar (28x13) |
23495-MM5-000 |
from US $13.02 |
||
|
15
|
15
23501-MKF-D40 GEAR (34T) |
23501-MKF-D40 |
from US $100.68 |
||
|
16
|
16
23511-MKF-D40 GEAR (29T) |
23511-MKF-D40 |
from US $88.01 |
||
|
17
|
17
23521-MKF-D40 GEAR (33T) |
23521-MKF-D40 |
from US $97.24 |
||
|
18
|
18
23801-MEE-D00 Sprocket (16t) |
23801-MEE-D00 |
from US $35.05 |
||
|
19
|
19
90037-422-003 Bolt, special (10mm) |
90037-422-003 |
from US $3.71 |
||
|
20
|
20
90402-HA5-000 Washer, thrust, 24mm |
90402-HA5-000 |
from US $2.95 |
||
|
21
|
21
90452-MAT-000 Washer (30x36x1.5) |
90452-MAT-000 |
from US $1.48 |
||
|
22
|
22
90452-MR7-000 Washer (28x34x1.5) |
90452-MR7-000 |
from US $2.96 |
||
|
23
|
23
90458-729-920 Washer, thrust, 28mm |
90458-729-920 |
from US $2.59 |
||
|
24
|
24
90459-438-000 Washer (10.2mm) |
90459-438-000 |
from US $4.59 |
||
|
25
|
25
90463-MAT-000 Washer (30mm) |
90463-MAT-000 |
from US $2.07 |
||
|
26
|
26
90463-MCJ-000 Washer (28mm) |
90463-MCJ-000 |
from US $5.18 |
||
|
27
|
27
90464-MAT-000 Washer, lock (30mm) |
90464-MAT-000 |
from US $2.95 |
||
|
28
|
28
90464-MCJ-000 Washer, lock (28mm) |
90464-MCJ-000 |
from US $5.18 |
||
|
29
|
29
90469-759-000 Shim j, final reduction third gear (2.0mm) |
90469-759-000 |
US $8.99 |
||
|
30
|
30
90554-MEL-000 Washer (20mm) |
90554-MEL-000 |
from US $2 |
||
|
31
|
31
90603-MN4-000 Circlip (28mm) |
90603-MN4-000 |
from US $2.59 |
||
|
32
|
32
90604-MM5-000 Circlip (30mm) |
90604-MM5-000 |
from US $3.70 |
||
|
33
|
33
90605-MM5-000 Ring, snap (72mm) |
90605-MM5-000 |
from US $5.33 |
||
|
34
|
34
91001-MFL-003 Bearing (28x62x16) |
91001-MFL-003 |
from US $18.36 |
||
|
35
|
35
91002-MFL-003 Bearing (20x47x15.5) |
91002-MFL-003 |
from US $20.13 |
||
|
36
|
36
91003-MFL-003 Bearing (20x52x15) |
91003-MFL-003 |
from US $18.36 |
||
|
37
|
37
91026-MEL-003 Bearing (24x28x10) |
91026-MEL-003 |
from US $11.40 |
||
|
38
|
38
91207-MAT-003 Oil seal (45x72x8) |
91207-MAT-003 |
from US $10.95 |
||
|
39
|
39
90037-RYX-010 BOLT (6X14) (10.9) |
90037-RYX-010 |
from US $1.26 |
||
