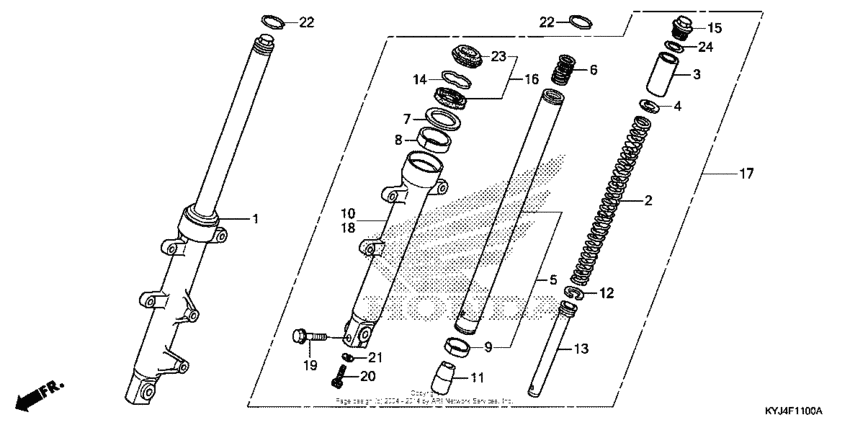

Front fork Diagram Honda CBR250
- Year
- 2011
- Model code
- CBR250RA AC
- Sales region
- USA
- Frame
- MLHMC411*B5000001 - MLHMC411*B5099999
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51400-KYJ-305 Fork assy., r. fr. |
51400-KYJ-305 |
US $305.64 |
||
|
2
|
2
51401-KYJ-901 Spring, fr. fork |
51401-KYJ-901 |
from US $35 |
||
|
3
|
3
51402-KYJ-901 Collar, spring |
51402-KYJ-901 |
from US $2.04 |
||
|
4
|
4
51403-ME4-003 Plate, spring joint |
51403-ME4-003 |
from US $3.11 |
||
|
5
|
5
51410-KYJ-901 Pipe, fr. fork |
51410-KYJ-901 |
from US $194.31 |
||
|
6
|
6
51411-MG1-003 Spring, fr |
51411-MG1-003 |
US $9.66 |
||
|
7
|
7
51412-461-003 Ring, back-up |
51412-461-003 |
from US $4.28 |
||
|
8
|
8
51414-KFB-901 Bush, guide |
51414-KFB-901 |
from US $7.55 |
||
|
9
|
9
51415-KFB-901
Bush, slider
|
51415-KFB-901 |
— | ||
| replacement | |||||
|
9
|
9
51415-KSE-A71 Bush, slider |
51415-KSE-A71 |
from US $9.47 |
||
|
10
|
10
51420-KYJ-921 Case, r. (lower) |
51420-KYJ-921 |
US $123.61 |
||
|
11
|
11
51432-KAZ-003 Piece,oil lock |
51432-KAZ-003 |
from US $10.51 |
||
|
12
|
12
51437-ML7-691 Ring, piston |
51437-ML7-691 |
from US $5.18 |
||
|
13
|
13
51440-KYJ-901 Pipe, seat |
51440-KYJ-901 |
from US $15.88 |
||
|
14
|
14
51447-KR6-003 Ring |
51447-KR6-003 |
from US $2.74 |
||
|
15
|
15
51450-KAS-901 Bolt, fr. fork |
51450-KAS-901 |
from US $24.34 |
||
|
16
|
16
51490-KWL-003 Seal set, fr. fork |
51490-KWL-003 |
from US $17.89 |
||
|
17
|
17
51500-KYJ-305 Fork Assy., L. Fr. |
51500-KYJ-305 |
US $292.77 |
||
|
18
|
18
51520-KYJ-921 Case, l. (lower) |
51520-KYJ-921 |
US $110.30 |
||
|
19
|
19
90109-MR7-000 Bolt, flange (8x45) |
90109-MR7-000 |
from US $1.91 |
||
|
20
|
20
90116-KV3-701 Bolt, socket (8mm) |
90116-KV3-701 |
from US $1.57 |
||
|
21
|
21
90544-283-000 Washer (8mm) |
90544-283-000 |
from US $2.52 |
||
|
22
|
22
90602-ME7-003 Ring,stopper |
90602-ME7-003 |
from US $2.70 |
||
|
23
|
23
91254-KAZ-003 Dust seal |
91254-KAZ-003 |
from US $14.21 |
||
|
24
|
24
91357-ME4-003 O-ring (27.7x3.5) |
91357-ME4-003 |
from US $2.74 |
||
