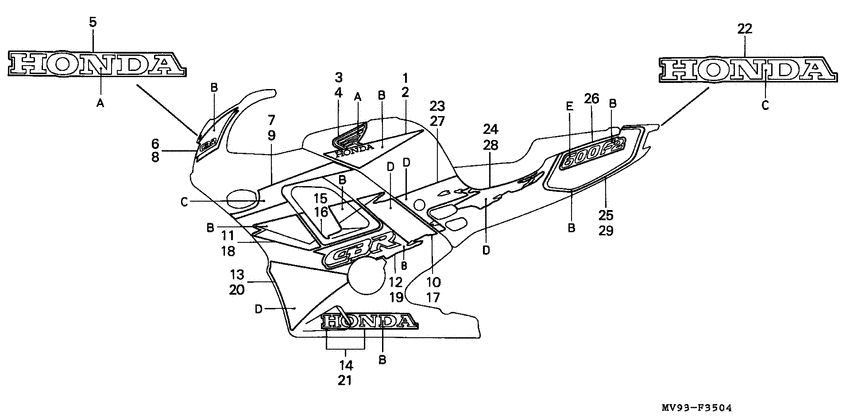

Stripe (CBR600F2R) Diagram Honda CBR600 CBR600F2
- Year
- 1994
- Model code
- CBR600F2R
- Sales region
- Canada
- Frame
- JH2PC252*RM300001 - JH2PC252*RM300340
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17507-MV9-660ZA Stripe, r. (type21) |
17507-MV9-660ZA |
US $69.89 |
||
|
1
|
1
17507-MV9-660ZB Stripe, r. (type22) |
17507-MV9-660ZB |
US $69.89 |
||
|
1
|
1
17507-MV9-660ZC Stripe, r. (type23) |
17507-MV9-660ZC |
US $69.89 |
||
|
2
|
2
17508-MV9-660ZA Stripe, l. (type2) |
17508-MV9-660ZA |
US $69.89 |
||
|
2
|
2
17508-MV9-660ZB Stripe, l. (type22) |
17508-MV9-660ZB |
US $69.89 |
||
|
2
|
2
17508-MV9-660ZC Stripe, l. (type23) |
17508-MV9-660ZC |
US $69.89 |
||
|
3
|
3
17511-MV9-660ZA Mark, r. (type21) |
17511-MV9-660ZA |
US $37.35 |
||
|
3
|
3
17511-MV9-660ZB Mark, r. (type22) |
17511-MV9-660ZB |
US $37.35 |
||
|
4
|
4
17512-MV9-660ZA Mark, l. (type21) |
17512-MV9-660ZA |
US $37.35 |
||
|
4
|
4
17512-MV9-660ZB Mark, l. (type22) |
17512-MV9-660ZB |
US $37.35 |
||
|
5
|
5
64227-MV9-660ZA Mark, fr. (type21) |
64227-MV9-660ZA |
US $13.87 |
||
|
6
|
6
64231-MV9-660ZA Stripe a (type21) |
64231-MV9-660ZA |
US $87.99 |
||
|
6
|
6
64231-MV9-660ZB
Stripe a (type22)
|
64231-MV9-660ZB |
— | ||
|
6
|
6
64231-MV9-660ZC
Stripe a (type23)
|
64231-MV9-660ZC |
— | ||
|
7
|
7
64232-MV9-660ZA
Stripe b (type21)
|
64232-MV9-660ZA |
— | ||
|
7
|
7
64232-MV9-660ZB
Stripe b (type22)
|
64232-MV9-660ZB |
— | ||
|
8
|
8
64241-MV9-660ZA Stripe a (type21) |
64241-MV9-660ZA |
US $85.09 |
||
|
8
|
8
64241-MV9-660ZB
Stripe a (type22)
|
64241-MV9-660ZB |
— | ||
|
8
|
8
64241-MV9-660ZC Stripe a (type23) |
64241-MV9-660ZC |
US $85.09 |
||
|
9
|
9
64242-MV9-660ZA Stripe b (type21) |
64242-MV9-660ZA |
US $109.77 |
||
|
9
|
9
64242-MV9-660ZB
Stripe b (type22)
|
64242-MV9-660ZB |
— | ||
|
10
|
10
64302-MV9-660ZA Stripe d (type21) |
64302-MV9-660ZA |
US $56.24 |
||
|
10
|
10
64302-MV9-660ZB
Stripe d (type22)
|
64302-MV9-660ZB |
— | ||
|
10
|
10
64302-MV9-660ZC
Stripe d (type23)
|
64302-MV9-660ZC |
— | ||
|
11
|
11
64307-MV9-660ZA Stripe a (type21) |
64307-MV9-660ZA |
US $50.41 |
||
|
11
|
11
64307-MV9-660ZB
Stripe a (type22)
|
64307-MV9-660ZB |
— | ||
|
11
|
11
64307-MV9-660ZC
Stripe a (type23)
|
64307-MV9-660ZC |
— | ||
|
12
|
12
64308-MV9-660ZA
Stripe b (type21)
|
64308-MV9-660ZA |
— | ||
|
12
|
12
64308-MV9-660ZB
Stripe b (type22)
|
64308-MV9-660ZB |
— | ||
|
12
|
12
64308-MV9-660ZC Stripe b (type23) |
64308-MV9-660ZC |
US $72.96 |
||
|
13
|
13
64309-MV9-660ZA Stripe c (type21) |
64309-MV9-660ZA |
US $79.10 |
||
|
14
|
14
64311-MV9-920ZA Mark a, r. (type13) |
64311-MV9-920ZA |
US $41.06 |
||
|
14
|
14
64311-MV9-660ZA Mark a, r. (type21) |
64311-MV9-660ZA |
US $43.66 |
||
|
14
|
14
64311-MV9-660ZB
Mark a, r. (type22)
|
64311-MV9-660ZB |
— | ||
|
15
|
15
64312-MV9-660ZA
Stripe, r. (type21)
|
64312-MV9-660ZA |
— | ||
|
15
|
15
64312-MV9-660ZB
Stripe, r. (type22)
|
64312-MV9-660ZB |
— | ||
|
16
|
16
64313-MV9-660ZA Stripe, l. (type21) |
64313-MV9-660ZA |
US $76.72 |
||
|
16
|
16
64313-MV9-660ZB Stripe, l. (type22) |
64313-MV9-660ZB |
US $88.96 |
||
|
17
|
17
64352-MV9-660ZA
Stripe d (type21)
|
64352-MV9-660ZA |
— | ||
|
17
|
17
64352-MV9-660ZB
Stripe d (type22)
|
64352-MV9-660ZB |
— | ||
|
17
|
17
64352-MV9-660ZC
Stripe d (type23)
|
64352-MV9-660ZC |
— | ||
|
18
|
18
64357-MV9-660ZA
Stripe a (type21)
|
64357-MV9-660ZA |
— | ||
|
18
|
18
64357-MV9-660ZB
Stripe a (type22)
|
64357-MV9-660ZB |
— | ||
|
18
|
18
64357-MV9-660ZC
Stripe a (type23)
|
64357-MV9-660ZC |
— | ||
|
19
|
19
64358-MV9-660ZA
Stripe b (type21)
|
64358-MV9-660ZA |
— | ||
|
19
|
19
64358-MV9-660ZB
Stripe b (type22)
|
64358-MV9-660ZB |
— | ||
|
19
|
19
64358-MV9-660ZC
Stripe b (type23)
|
64358-MV9-660ZC |
— | ||
|
20
|
20
64359-MV9-660ZA
Stripe c (type21)
|
64359-MV9-660ZA |
— | ||
|
21
|
21
64361-MV9-920ZA Mark a, l. (type13) |
64361-MV9-920ZA |
US $38.42 |
||
|
21
|
21
64361-MV9-660ZA
Mark a, l. (type21)
|
64361-MV9-660ZA |
— | ||
|
21
|
21
64361-MV9-660ZB
Mark a, l. (type22)
|
64361-MV9-660ZB |
— | ||
|
22
|
22
77215-MV9-660ZA Mark, rr. (type21) |
77215-MV9-660ZA |
US $10.68 |
||
| replacement | |||||
|
22
|
22
77215-MAL-600ZB Mark (type2) |
77215-MAL-600ZB |
US $10.68 |
||
|
22
|
22
77215-MV9-660ZB Mark, rr. (type22) |
77215-MV9-660ZB |
US $10.68 |
||
| replacement | |||||
|
22
|
22
77215-MAL-600ZC Mark (type3) |
77215-MAL-600ZC |
US $10.68 |
||
|
23
|
23
83613-MV9-660ZA
Stripe a (type21)
|
83613-MV9-660ZA |
— | ||
|
23
|
23
83613-MV9-660ZB
Stripe a (type22)
|
83613-MV9-660ZB |
— | ||
|
24
|
24
83614-MV9-660ZA
Stripe b (type21)
|
83614-MV9-660ZA |
— | ||
|
24
|
24
83614-MV9-660ZB Stripe b (type22) |
83614-MV9-660ZB |
US $47.35 |
||
|
25
|
25
83617-MV9-920ZA Stripe e (type13) |
83617-MV9-920ZA |
US $51.14 |
||
|
25
|
25
83617-MV9-660ZA Stripe e (type21) |
83617-MV9-660ZA |
US $54.78 |
||
|
26
|
26
83618-MV9-660ZA
Mark (type21)
|
83618-MV9-660ZA |
— | ||
|
26
|
26
83618-MV9-660ZB
Mark (type22)
|
83618-MV9-660ZB |
— | ||
|
26
|
26
83618-MV9-660ZC
Mark (type23)
|
83618-MV9-660ZC |
— | ||
|
27
|
27
83713-MV9-660ZA Stripe a (type21) |
83713-MV9-660ZA |
US $76.81 |
||
|
27
|
27
83713-MV9-660ZB
Stripe a (type22)
|
83713-MV9-660ZB |
— | ||
|
28
|
28
83714-MV9-660ZA Stripe b (type21) |
83714-MV9-660ZA |
US $47.35 |
||
|
28
|
28
83714-MV9-660ZB Stripe b (type22) |
83714-MV9-660ZB |
US $47.35 |
||
|
29
|
29
83717-MV9-920ZA
Stripe e (type13)
|
83717-MV9-920ZA |
— | ||
|
29
|
29
83717-MV9-660ZA Stripe e (type21) |
83717-MV9-660ZA |
US $54.78 |
||
