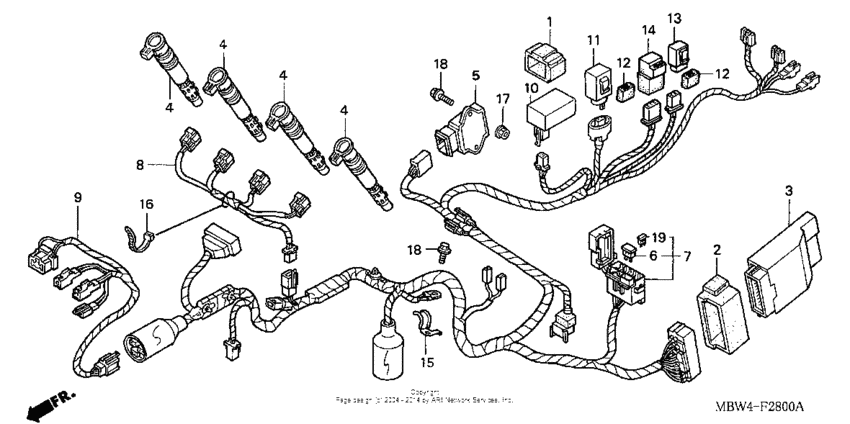

Wire harness ('99-'00) Diagram Honda CBR600 CBR600F4
- Year
- 2000
- Model code
- CBR600F4 A
- Sales region
- USA
- Frame
- JH2PC350*YM100001 - JH2PC350*YM106777
- Engine Capacity
- 600
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30401-GB4-770 Cushion.cdi unit |
30401-GB4-770 |
from US $7.10 |
||
|
2
|
2
30405-MBW-600 Cushion, spark unit |
30405-MBW-600 |
US $13.58 |
||
|
3
|
3
30410-MBW-671
Module, ign cont
|
30410-MBW-671 |
— | ||
|
4
|
4
30700-MBW-611 Coil, cap & ignition |
30700-MBW-611 |
from US $81.60 |
||
|
5
|
5
31600-MV4-010 Rectifier, regulate |
31600-MV4-010 |
from US $104.72 |
||
|
6
|
6
31730-MAS-601 Diode assy., three way (sumitomo) |
31730-MAS-601 |
from US $11.54 |
||
|
7
|
7
32100-MBW-670
Wire harness
|
32100-MBW-670 |
— | ||
|
8
|
8
32102-MBW-610 Sub-harness |
32102-MBW-610 |
US $59.42 |
||
|
9
|
9
32103-MBW-670 Sub-harness, fr. |
32103-MBW-670 |
US $19.91 |
||
|
10
|
10
36100-MN4-008 Relay, fuel cut |
36100-MN4-008 |
from US $67.12 |
||
|
11
|
11
38301-KK9-952 Relay, Turn Signal (FR-3303) |
38301-KK9-952 |
from US $72.08 |
||
|
12
|
12
38306-KK4-000 Suspension, winker relay (mitsuba) |
38306-KK4-000 |
from US $3.18 |
||
|
13
|
13
38365-MN5-811 Relay comp. (10a) |
38365-MN5-811 |
from US $20.25 |
||
|
14
|
14
39793-SV4-003 Relay assyPOWER (5P) (MITSUBA) |
39793-SV4-003 |
from US $38.02 |
||
|
15
|
15
50180-MBW-000 Clamp, harness |
50180-MBW-000 |
US $4.68 |
||
|
16
|
16
90652-KT1-771 Band, wire (black) |
90652-KT1-771 |
from US $2.29 |
||
|
17
|
17
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
18
|
18
96001-060-160-0 BoltFLANGE, 6X16 |
96001-060-160-0 |
from US $0.41 |
||
|
19
|
19
98200-41000 FuseMINI(10A) |
98200-41000 |
from US $0.52 |
