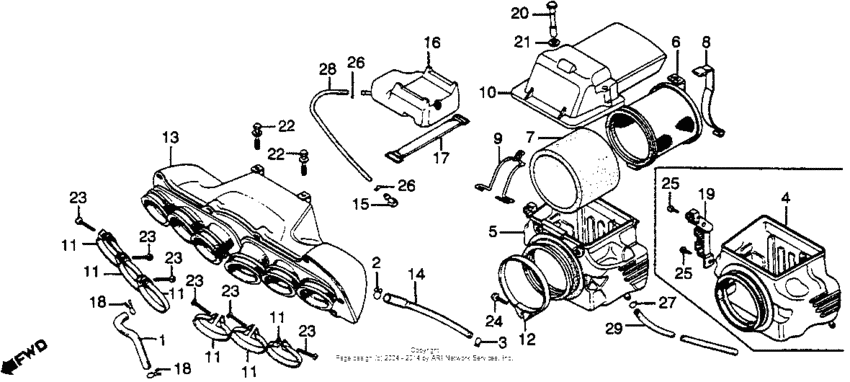

Air cleaner Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15763-422-000
Tube,breather
|
15763-422-000 |
— | ||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
3
|
3
15772-500-010 Clip, breather tube |
15772-500-010 |
from US $4.44 |
||
|
4
|
4
17205-422-305
Case assy,air/c.
|
17205-422-305 |
— | ||
|
6
|
6
17211-422-000
Trap comp.,flame
|
17211-422-000 |
— | ||
|
7
|
7
17213-422-000 Element,air/c. |
17213-422-000 |
US $25.98 |
||
|
8
|
8
17217-422-000
Spring,elmt.set
|
17217-422-000 |
— | ||
|
10
|
10
17240-422-000
Duct,air/c. in.
|
17240-422-000 |
— | ||
|
11
|
11
9501860250 Band (60) |
9501860250 |
from US $3.26 |
||
|
12
|
12
17256-HB9-000
Band
|
17256-HB9-000 |
— | ||
|
13
|
13
17300-MA2-000
Chamber,air/c.
|
17300-MA2-000 |
— | ||
|
14
|
14
17358-422-670
Tube assy.,drain
|
17358-422-670 |
— | ||
|
15
|
15
17370-419-700 Plug, breather tube |
17370-419-700 |
from US $3.48 |
||
|
16
|
16
17551-422-670
Tank,storage
|
17551-422-670 |
— | ||
|
17
|
17
17552-422-670
Band,storage tank
|
17552-422-670 |
— | ||
|
18
|
18
18534-634-670 ClipAIR HOSE, 16MM |
18534-634-670 |
from US $1.68 |
||
|
19
|
19
32411-422-000
Holder b,coupler
|
32411-422-000 |
— | ||
|
20
|
20
90126-422-000 Nut,air/c duct |
90126-422-000 |
US $10.23 |
||
|
21
|
21
90501-310-000 Washer (7x12) |
90501-310-000 |
from US $2.07 |
||
|
22
|
22
93481-060-350-0 Bolt-washer, 6x35 |
93481-060-350-0 |
US $0.59 |
||
|
23
|
23
93500-040200G Screw, pan, 4x20 |
93500-040200G |
from US $0.37 |
||
|
24
|
24
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
25
|
25
93901-35210 Screw, tapping, 5x12 |
93901-35210 |
from US $0.37 |
||
|
26
|
26
9500202130 Clip, tube (b12.5) |
9500202130 |
from US $0.52 |
||
|
27
|
27
9500280000 Clip, tube (c12) |
9500280000 |
from US $0.44 |
||
|
28
|
28
95005-800-0120M Bulk hose (8x1000) |
95005-800-0120M |
from US $11.25 |
||
|
29
|
29
95005-800-0130M Bulk hose (8x1000) |
95005-800-0130M |
from US $7.40 |
