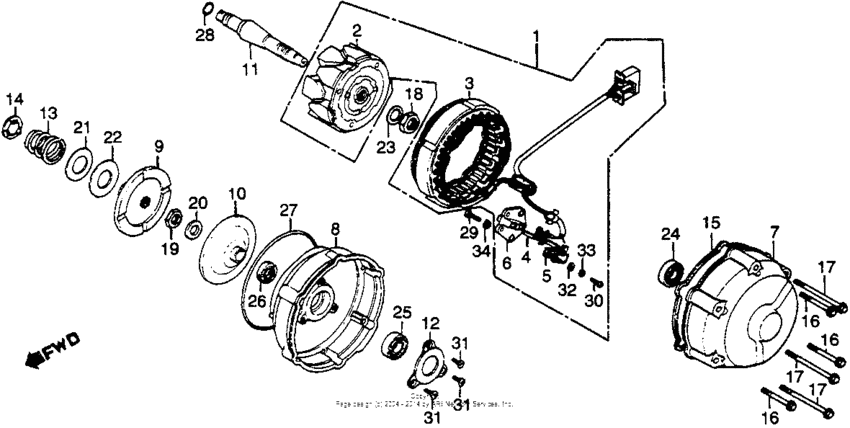

Alternator Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-422-415
Ac,gen assy
Use up to Engine SN 2009932 |
31100-422-415 |
— | ||
|
2
|
2
31110-422-005
Rotor comp
|
31110-422-005 |
— | ||
|
3
|
3
31120-422-415
Stator Comp
|
31120-422-415 |
— | ||
|
4
|
4
31124-MG5-000 Brush comp.a |
31124-MG5-000 |
from US $31.01 |
||
|
5
|
5
31125-MG5-005 Brush comp.b |
31125-MG5-005 |
from US $31.01 |
||
|
6
|
6
31126-422-015
Base,brush
Use up to Engine SN 2009932 |
31126-422-015 |
— | ||
|
7
|
7
31131-422-010
Cover a,a.c.gen.
|
31131-422-010 |
— | ||
|
8
|
8
31132-422-010
Cover b,a.c.g.
|
31132-422-010 |
— | ||
|
9
|
9
31133-422-000
Plate a,coupling
|
31133-422-000 |
— | ||
|
10
|
10
31134-422-000
Plate b,a.c.gen.
|
31134-422-000 |
— | ||
|
11
|
11
31135-422-000
Shaft,a.c.gen.
|
31135-422-000 |
— | ||
|
12
|
12
31136-422-000
Plate,bearing set
|
31136-422-000 |
— | ||
|
13
|
13
31138-422-010
Spg.,a.c.g.cprg
|
31138-422-010 |
— | ||
|
14
|
14
31139-422-000
Seat,cplg.spring
|
31139-422-000 |
— | ||
|
15
|
15
31140-422-306
Gasket
|
31140-422-306 |
— | ||
|
16
|
16
96000-060-650-2 Bolt,flange,6x65 |
96000-060-650-2 |
US $1.33 |
||
|
17
|
17
96000-060-900-2 Bolt,flange,6x90 |
96000-060-900-2 |
US $1.41 |
||
|
18
|
18
90201-611-010
Nut,hex 16mm
|
90201-611-010 |
— | ||
|
19
|
19
90233-701-010
Nut a,lock,14mm
|
90233-701-010 |
— | ||
|
20
|
20
90427-395-000
Washer,rotor set
|
90427-395-000 |
— | ||
|
21
|
21
90458-703-000
Washer,thrust,28
|
90458-703-000 |
— | ||
|
22
|
22
90466-422-000
Plate,special
|
90466-422-000 |
— | ||
|
23
|
23
90540-051-000
Washer,front fork
|
90540-051-000 |
— | ||
|
24
|
24
91004-422-003
B/brg rad n/com
|
91004-422-003 |
— | ||
|
25
|
25
91005-422-014
B/brg rad n/com
|
91005-422-014 |
— | ||
|
26
|
26
91216-PA0-003 Oil seal22X35X7 (ARAI) |
91216-PA0-003 |
from US $8.73 |
||
|
27
|
27
91302-422-000 Gasket,acg.case |
91302-422-000 |
US $7.40 |
||
|
28
|
28
91303-634-010 O-ring12.5X2.2MM |
91303-634-010 |
from US $5.18 |
||
|
29
|
29
92101-06016-0A BoltHEX., 6X16 |
92101-06016-0A |
from US $0.44 |
||
|
30
|
30
93500-040-120-H ScrewPAN, 4X12 |
93500-040-120-H |
from US $0.37 |
||
|
31
|
31
93600-060-160-A ScrewFLAT, 6X16 |
93600-060-160-A |
from US $0.44 |
||
|
32
|
32
94101-04800 WasherPLAIN, 4MM |
94101-04800 |
from US $0.37 |
||
|
33
|
33
94111-04800 WasherSPRING, 4MM |
94111-04800 |
from US $0.37 |
||
|
34
|
34
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
