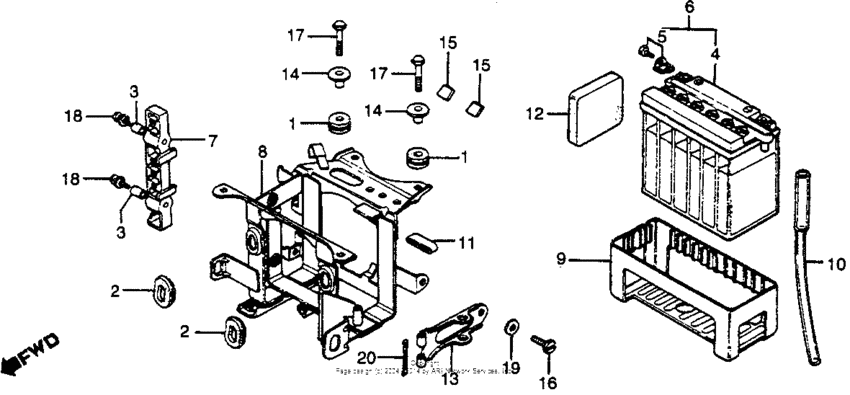

Battery Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
17247-303-000 Grommet a,cleaner |
17247-303-000 |
from US $5.48 |
||
|
3
|
3
18625-634-670
Coller,grommet
|
18625-634-670 |
— | ||
|
4
|
4
31500-ZB7-633 Battery (yb18l-a) (yuasa) |
31500-ZB7-633 |
US $109.62 |
||
|
4
|
4
31500-ZB7-633AH Battery (yb18l-a) |
31500-ZB7-633AH |
US $107.15 |
||
|
5
|
5
31509-422-810 Adapter set,bat(Optional). |
31509-422-810 |
US $13.52 |
||
|
6
|
6
31500-463-747AH Battery (y50-n18l-a)(Optional). |
31500-463-747AH |
US $120.02 |
||
|
7
|
7
32410-422-000
Holder a,coupler
|
32410-422-000 |
— | ||
|
8
|
8
50325-422-000
Box,battery
|
50325-422-000 |
— | ||
|
9
|
9
50326-422-000
Cushion,battery
|
50326-422-000 |
— | ||
|
10
|
10
50328-422-000
Tube,battery
|
50328-422-000 |
— | ||
|
11
|
11
50329-422-670
Rubber,bat.mount
|
50329-422-670 |
— | ||
|
12
|
12
50330-422-000
Spacer,battery
|
50330-422-000 |
— | ||
|
13
|
13
50333-MA2-000
Plate,bat.support
|
50333-MA2-000 |
— | ||
|
14
|
14
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
14
|
14
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
14
|
14
61105-428-000
Collar, rr. fender
|
61105-428-000 |
— | ||
|
15
|
15
80103-422-000
Rubber,rr.fend.mt
|
80103-422-000 |
— | ||
|
16
|
16
90152-422-000
Bolt,slotted,6x12
|
90152-422-000 |
— | ||
|
17
|
17
92101-06020-0A BoltHEX., 6X20 |
92101-06020-0A |
from US $1.58 |
||
|
18
|
18
93891-0401600 Screw-washer, 4x16 |
93891-0401600 |
from US $0.44 |
||
|
19
|
19
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
20
|
20
9420140550
Pin, cotter (4x55)
|
9420140550 |
— | ||
