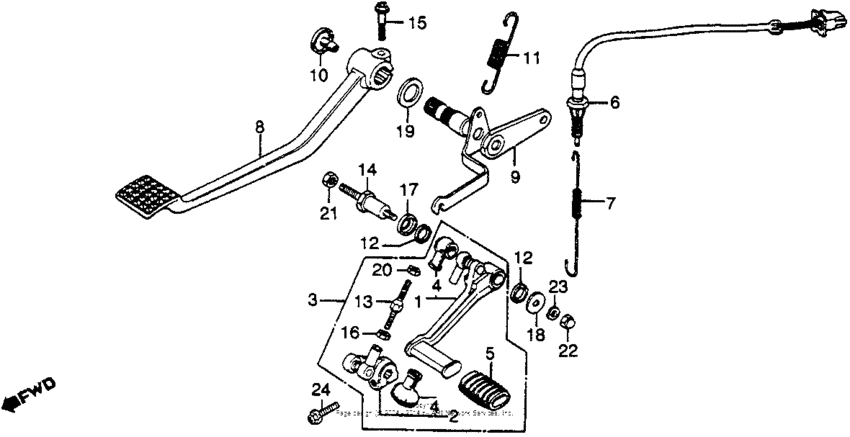

Brake pedal + shift pedal Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24700-422-670
Pedal, gearshift
|
24700-422-670 |
— | ||
|
2
|
2
24710-422-670
Arm, gearshift
|
24710-422-670 |
— | ||
|
3
|
3
24720-422-670
Pedal,gear change
|
24720-422-670 |
— | ||
|
4
|
4
24724-422-000 Cover, dust |
24724-422-000 |
from US $6.51 |
||
|
5
|
5
24781-371-000 Rubber |
24781-371-000 |
from US $3.47 |
||
|
6
|
6
35350-422-003
Switch,rr.stop
|
35350-422-003 |
— | ||
|
7
|
7
35357-358-000
Spring, stop sw.
|
35357-358-000 |
— | ||
|
8
|
8
46500-MA2-000
Pedal,brake
|
46500-MA2-000 |
— | ||
|
9
|
9
46510-422-670
Spindle, rr. brake
|
46510-422-670 |
— | ||
|
10
|
10
46511-422-000
Cap,rr.brk.pedal
|
46511-422-000 |
— | ||
|
11
|
11
46514-422-000
Spring,brake rtn.
|
46514-422-000 |
— | ||
|
12
|
12
46516-357-000
Dust seal,brake
|
46516-357-000 |
— | ||
|
13
|
13
90065-422-670
Bolt,tie rod
|
90065-422-670 |
— | ||
|
14
|
14
90101-422-000
Bolt,change pivot
|
90101-422-000 |
— | ||
|
15
|
15
90179-422-000
Bolt,flange,8x30
|
90179-422-000 |
— | ||
|
16
|
16
90201-700-000 Nut, governor arm fixing (left hand thread) |
90201-700-000 |
from US $0.74 |
||
|
17
|
17
90501-422-000
Wash.a,chng.pivot
|
90501-422-000 |
— | ||
|
18
|
18
90502-422-000
Wash.b,chng.pivot
|
90502-422-000 |
— | ||
|
19
|
19
90505-422-000
Wash,brk.thrust
|
90505-422-000 |
— | ||
|
20
|
20
94002-060200S Nut, hex. (6mm) |
94002-060200S |
from US $0.52 |
||
|
21
|
21
94002-100-200-S Nut,hex 10mm |
94002-100-200-S |
from US $0.59 |
||
|
22
|
22
94021-080-200-S NutCAP, 8MM |
94021-080-200-S |
from US $0.74 |
||
|
23
|
23
9410108200 Washer, plain, 8mm |
9410108200 |
from US $0.44 |
||
|
24
|
24
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
24
|
24
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
24
|
24
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
