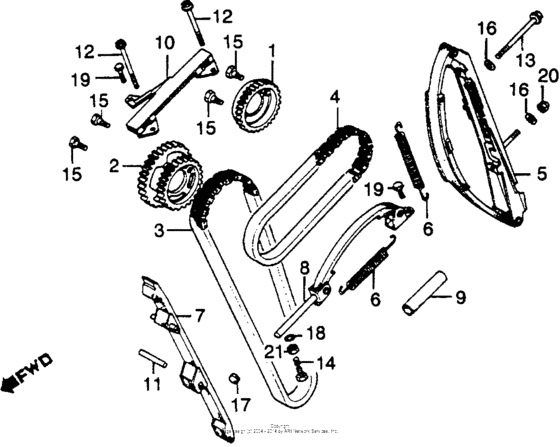

Cam chain + tensioner Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14321-422-000
Sprkt.,in.cam 38t
|
14321-422-000 |
— | ||
|
2
|
2
14322-422-000
Sprkt.,ex.cam 46t
|
14322-422-000 |
— | ||
|
3
|
3
14401-MA0-670 Chain,cam |
14401-MA0-670 |
US $208.59 |
||
|
4
|
4
14402-438-014
Chain b,cam
|
14402-438-014 |
— | ||
|
5
|
5
14510-422-010
Tensioner,cam chn
|
14510-422-010 |
— | ||
|
6
|
6
14514-422-000
Spring,tensioner
|
14514-422-000 |
— | ||
|
7
|
7
14520-422-000
Guide a,cam chain
|
14520-422-000 |
— | ||
|
8
|
8
14530-422-000
Tension b,cam chn
|
14530-422-000 |
— | ||
|
10
|
10
14541-422-000
Guide b,cam chain
|
14541-422-000 |
— | ||
|
11
|
11
14612-286-000
Pin,cam chain
|
14612-286-000 |
— | ||
|
12
|
12
90002-422-000
Bolt,flange,6x62
|
90002-422-000 |
— | ||
|
13
|
13
90011-422-000
Bolt b,ten.lock
|
90011-422-000 |
— | ||
|
14
|
14
90020-469-305
Bolt set,tens.adj
|
90020-469-305 |
— | ||
|
15
|
15
90086-413-000 Bolt (7x12) |
90086-413-000 |
from US $2.59 |
||
|
16
|
16
90441-706-000 Washer, sealing, 6mm |
90441-706-000 |
from US $1.04 |
||
|
17
|
17
91208-422-003 Plug,selg.11.5x7 |
91208-422-003 |
from US $7.31 |
||
|
18
|
18
91313-MA6-005 O-ring (4.8x1.9) |
91313-MA6-005 |
from US $3.03 |
||
|
19
|
19
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
19
|
19
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
19
|
19
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
20
|
20
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
21
|
21
9403108000 Nut, hex. (8mm) |
9403108000 |
from US $0.45 |
||
