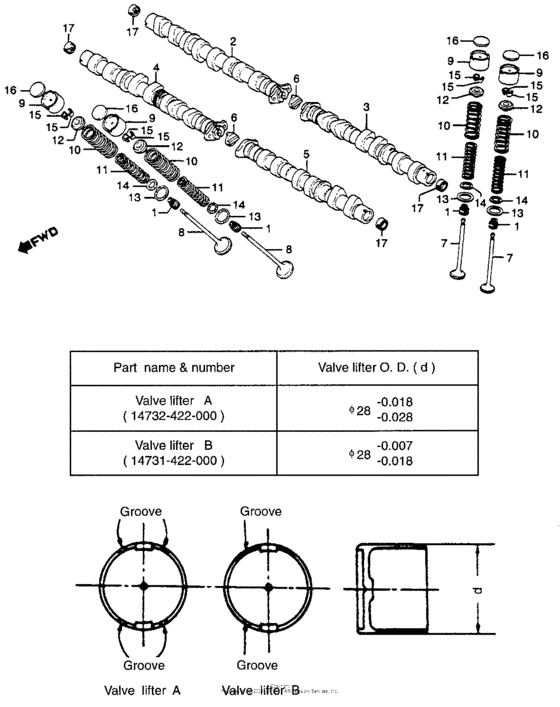

Camshaft + vavle Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12209-422-005 Seal, valve stem |
12209-422-005 |
from US $6.12 |
||
|
2
|
2
14111-422-010
Camshaft,in.r.
|
14111-422-010 |
— | ||
|
3
|
3
14121-422-010
Camshaft,in.l.
|
14121-422-010 |
— | ||
|
4
|
4
14131-422-010
Camshaft,ex.r.
|
14131-422-010 |
— | ||
|
5
|
5
14141-422-010
Camshaft,ex.l.
|
14141-422-010 |
— | ||
|
6
|
6
14207-422-000
Joint,cam
|
14207-422-000 |
— | ||
|
7
|
7
14711-MA2-003
Valve,in.
|
14711-MA2-003 |
— | ||
| replacement | |||||
|
7
|
7
14711-MA4-770 Valve,in. |
14711-MA4-770 |
US $31.01 |
||
|
7
|
7
14711-MA4-770 Valve,in. |
14711-MA4-770 |
US $31.01 |
||
|
7
|
7
14711-422-000
Valve,in.
|
14711-422-000 |
— | ||
| replacement | |||||
|
7
|
7
14711-MA4-770 Valve,in. |
14711-MA4-770 |
US $31.01 |
||
|
8
|
8
14721-422-000
Valve,ex.
|
14721-422-000 |
— | ||
|
9
|
9
14731-422-000
Lifter b,valve
|
14731-422-000 |
— | ||
|
9
|
9
14732-422-000
Lifter,valve
|
14732-422-000 |
— | ||
|
10
|
10
14751-422-004
Spring,valve out
|
14751-422-004 |
— | ||
|
10
|
10
14751-422-005 Spring,valve out |
14751-422-005 |
US $18.14 |
||
|
11
|
11
14761-422-004
Spring,valve inn
|
14761-422-004 |
— | ||
|
11
|
11
14761-422-005
Spring,valve inn
|
14761-422-005 |
— | ||
|
12
|
12
14771-329-000
Retainer,vlv.spg.
|
14771-329-000 |
— | ||
|
13
|
13
14775-422-000 Seat,vlv out spg. |
14775-422-000 |
from US $3.47 |
||
|
14
|
14
14776-422-000
Seat,vlv.inn.spg.
|
14776-422-000 |
— | ||
|
15
|
15
14781-107-003 Cotter, valve (sanko) |
14781-107-003 |
from US $3.18 |
||
|
16
|
16
14901-422-000
Shim,tappet 2.30
|
14901-422-000 |
— | ||
|
16
|
16
14903-422-000
Shim,tappet(2.35)
|
14903-422-000 |
— | ||
|
16
|
16
14905-422-000
Shim,tappet(2.40)
|
14905-422-000 |
— | ||
|
16
|
16
14907-422-000
Shim,tappet(2.450
|
14907-422-000 |
— | ||
|
16
|
16
14909-422-000
Shim,tappet(2.50)
|
14909-422-000 |
— | ||
|
16
|
16
14911-422-000 Shim,tappet(2.550 |
14911-422-000 |
US $7.72 |
||
|
16
|
16
14913-422-000
Shim,tappet(2.60)
|
14913-422-000 |
— | ||
|
16
|
16
14915-422-000
Shim,tappet(2.650
|
14915-422-000 |
— | ||
|
16
|
16
14917-422-000
Shim,tappet(2.70)
|
14917-422-000 |
— | ||
|
16
|
16
14919-422-000
Shim,tappet(2.750
|
14919-422-000 |
— | ||
|
16
|
16
14921-422-000
Shim,tappet(2.80)
|
14921-422-000 |
— | ||
|
16
|
16
14923-422-000
Shim,tappet(2.850
|
14923-422-000 |
— | ||
|
16
|
16
14925-422-000
Shim,tappet(2.90)
|
14925-422-000 |
— | ||
|
16
|
16
14927-422-000
Shim,tappet(2.950
|
14927-422-000 |
— | ||
|
16
|
16
14929-422-000
Shim,tappet(3.00)
|
14929-422-000 |
— | ||
|
16
|
16
14931-422-000 Shim tappet(3.050 |
14931-422-000 |
US $7.28 |
||
|
16
|
16
14933-422-000
Shim,tappet(3.10)
|
14933-422-000 |
— | ||
|
16
|
16
14935-422-000
Shim,tappet(3.150
|
14935-422-000 |
— | ||
|
16
|
16
14937-422-000
Shim,tappet(3.20)
|
14937-422-000 |
— | ||
|
16
|
16
14939-422-000
Shim,tappet(3.250
|
14939-422-000 |
— | ||
|
16
|
16
14941-422-000
Shim,tappet(3.30)
|
14941-422-000 |
— | ||
|
16
|
16
14943-422-000
Shim,tappet(3.350
|
14943-422-000 |
— | ||
|
16
|
16
14945-422-000
Shim,tappet(3.40)
|
14945-422-000 |
— | ||
|
16
|
16
14947-422-000
Shim,tappet(3.450
|
14947-422-000 |
— | ||
|
16
|
16
14949-422-000
Shim,tappet(3.50)
|
14949-422-000 |
— | ||
|
17
|
17
91203-422-005
Guide,oil
|
91203-422-005 |
— | ||
