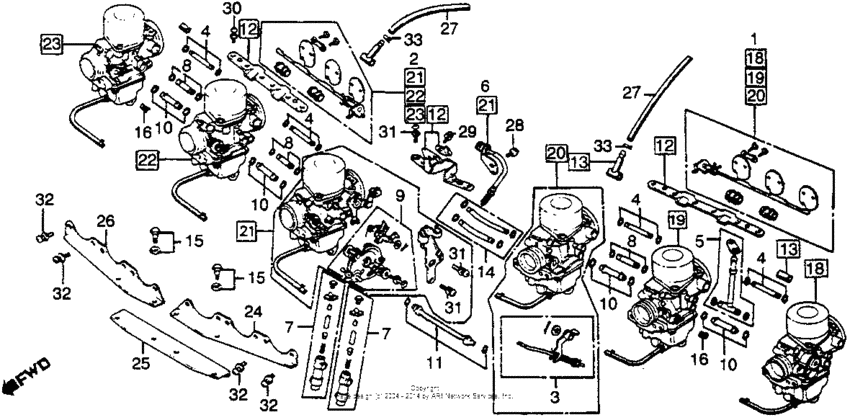

Carburetor assy. 79 Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16017-422-305
Link set a,choke
|
16017-422-305 |
— | ||
|
2
|
2
16018-422-305
Link set b,choke
|
16018-422-305 |
— | ||
|
3
|
3
16019-422-004
Rod set,pump
|
16019-422-004 |
— | ||
|
4
|
4
16026-422-004
Joint set a,fuel
|
16026-422-004 |
— | ||
|
5
|
5
16027-422-004
Joint set b,fuel
|
16027-422-004 |
— | ||
|
6
|
6
16028-422-004
Screw set b
|
16028-422-004 |
— | ||
|
7
|
7
16030-422-004
Holder set,adj.
|
16030-422-004 |
— | ||
|
8
|
8
16031-469-004
Joint set c,fuel
|
16031-469-004 |
— | ||
|
9
|
9
16032-422-004
Link set,throttle
|
16032-422-004 |
— | ||
|
10
|
10
16033-422-004
Joint set e,fuel
|
16033-422-004 |
— | ||
|
11
|
11
16034-422-004
Joint set f,fuel
|
16034-422-004 |
— | ||
|
12
|
12
16035-422-004
Plat set,rr.stay
|
16035-422-004 |
— | ||
|
13
|
13
16036-422-004
Joint set d,fuel
|
16036-422-004 |
— | ||
|
14
|
14
16037-422-004
Joint set g,fuel
|
16037-422-004 |
— | ||
|
15
|
15
16049-422-004
Screw set e
|
16049-422-004 |
— | ||
|
16
|
16
16051-413-004
Spg,comprn.coil
|
16051-413-004 |
— | ||
|
18
|
18
16101-422-305
Carburetor assy.1
|
16101-422-305 |
— | ||
|
19
|
19
16102-422-305
Carburetor assy. 2
|
16102-422-305 |
— | ||
|
20
|
20
16103-422-305
Carburetor assy.3
|
16103-422-305 |
— | ||
|
21
|
21
16104-422-305
Carburetor assy. 4
|
16104-422-305 |
— | ||
|
22
|
22
16105-422-305
Carburetor assy. 5
|
16105-422-305 |
— | ||
|
23
|
23
16106-422-305
Carburetor assy. 6
|
16106-422-305 |
— | ||
|
24
|
24
16119-422-004
Plate,stay
|
16119-422-004 |
— | ||
|
25
|
25
16120-422-004
Plate,l.stay
|
16120-422-004 |
— | ||
|
26
|
26
16121-422-004
Plate,r.stay
|
16121-422-004 |
— | ||
|
27
|
27
16198-ML4-405
Tube
|
16198-ML4-405 |
— | ||
|
28
|
28
93892-0400800 Screw-washer, 4x8 |
93892-0400800 |
from US $0.47 |
||
|
29
|
29
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
30
|
30
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.47 |
||
|
31
|
31
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
32
|
32
93892-060-140-0 Screw-washer,6x14 |
93892-060-140-0 |
from US $0.52 |
||
|
33
|
33
95002-02080 ClipTUBE(B8) |
95002-02080 |
from US $0.44 |
