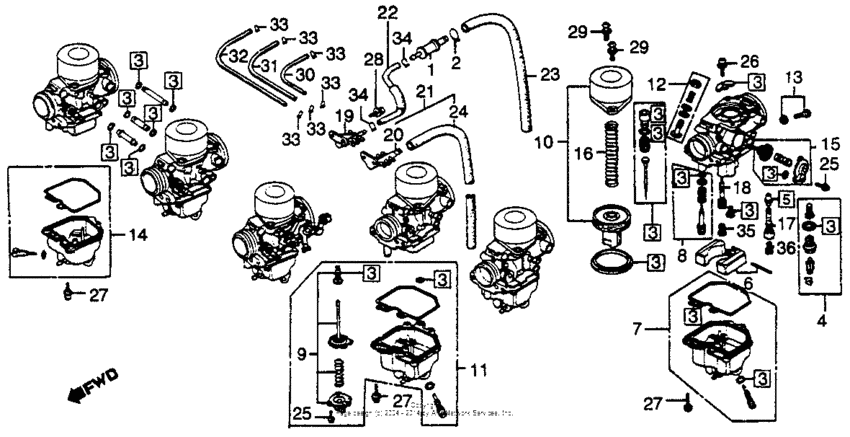

Carburetor comp. parts 79 Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15312-422-000 Joint,over flowUse up to Engine SN 2022358 |
15312-422-000 |
US $8.47 |
||
|
2
|
2
15772-292-010 Clip, breather tube |
15772-292-010 |
from US $2.44 |
||
|
3
|
3
16010-422-004 Packing set |
16010-422-004 |
US $65.61 |
||
|
4
|
4
16011-422-004 Valve set,float |
16011-422-004 |
US $96.56 |
||
|
5
|
5
16012-422-004
Needle set,jet
|
16012-422-004 |
— | ||
|
6
|
6
16013-679-005 Float set |
16013-679-005 |
US $85.68 |
||
|
7
|
7
16015-422-004
Chbr.set a,float
|
16015-422-004 |
— | ||
|
8
|
8
16016-410-601 Screw set a |
16016-410-601 |
from US $19.98 |
||
|
9
|
9
16021-422-004
Diaph.set,pump
|
16021-422-004 |
— | ||
|
10
|
10
16022-422-004
Piston set,vacuum
|
16022-422-004 |
— | ||
|
11
|
11
16023-422-004
Chbr.set b,float
|
16023-422-004 |
— | ||
|
12
|
12
16029-PC6-005
Screw set
|
16029-PC6-005 |
— | ||
|
13
|
13
16038-422-004
Screw set d
|
16038-422-004 |
— | ||
|
14
|
14
16045-422-004
Chbr.set c,float
|
16045-422-004 |
— | ||
|
15
|
15
16048-MA2-004
Valve set,air cut
|
16048-MA2-004 |
— | ||
|
16
|
16
16050-422-004
Spring,vac.piston
|
16050-422-004 |
— | ||
|
17
|
17
16165-422-004
Holder,needle jet
|
16165-422-004 |
— | ||
|
18
|
18
16166-422-004
Nozzle,main
|
16166-422-004 |
— | ||
|
19
|
19
16310-422-000 Joint,over.tubeUse up to Engine SN 2022358 |
16310-422-000 |
US $11.59 |
||
|
20
|
20
16310-422-010
Joint,over tube
Use from Engine SN 2022359 |
16310-422-010 |
— | ||
|
21
|
21
16310-422-305
Joint,over tube
Use up to Engine SN 2022358 |
16310-422-305 |
— | ||
|
22
|
22
16315-422-000 Tube a,over flowUse up to Engine SN 2022358 |
16315-422-000 |
US $14.55 |
||
|
23
|
23
16316-422-000 Tube b,over flowUse up to Engine SN 2022358 |
16316-422-000 |
US $12.60 |
||
|
24
|
24
16316-422-010
Tube b,over flow
Use from Engine SN 2022359 |
16316-422-010 |
— | ||
|
25
|
25
93892-040-120-0 Screw-washer4X12 |
93892-040-120-0 |
from US $0.44 |
||
|
26
|
26
93892-0401400 Screw-washer (4x12) |
93892-0401400 |
from US $0.44 |
||
|
27
|
27
93892-0401600 Screw-washer (4x16) |
93892-0401600 |
from US $0.44 |
||
|
28
|
28
93892-050-120-0 Screw-washer5X12 |
93892-050-120-0 |
from US $0.47 |
||
|
29
|
29
93892-0501600 Screw-washer, 5x16 |
93892-0501600 |
from US $0.44 |
||
|
30
|
30
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
31
|
31
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
32
|
32
95001-350-0360M Bulk hose (3.5x3000) |
95001-350-0360M |
from US $13.99 |
||
|
33
|
33
95002-02070 ClipTUBE(B7) |
95002-02070 |
from US $0.44 |
||
|
34
|
34
95002-02100 ClipTUBE(B10) |
95002-02100 |
from US $0.52 |
||
|
35
|
35
99101-393-0650 Jet primr min #65 |
99101-393-0650 |
US $4.44 |
||
|
36
|
36
99101-GHB0980 Jet, main (#98) |
99101-GHB0980 |
from US $5.33 |
