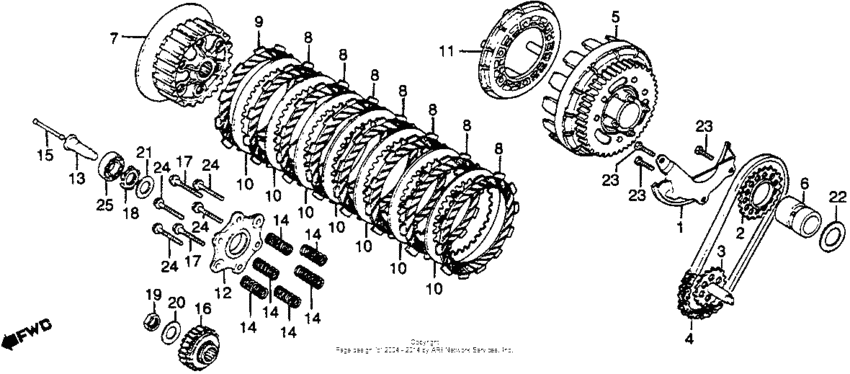

Clutch Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11140-422-000
Plate, oil separate
|
11140-422-000 |
— | ||
|
2
|
2
15131-422-000
Sprket,oil drive
|
15131-422-000 |
— | ||
|
3
|
3
15134-422-000
Sprkt,oil driven
|
15134-422-000 |
— | ||
|
4
|
4
15136-422-003
Chain,oil pump
|
15136-422-003 |
— | ||
|
5
|
5
22100-MA2-P00
Outer comp., clutch
Use up to Engine SN 2008074 |
22100-MA2-P00 |
— | ||
|
6
|
6
22116-422-000
Guide,clch.outer
|
22116-422-000 |
— | ||
|
7
|
7
22120-422-000
Center,clutch
|
22120-422-000 |
— | ||
|
8
|
8
22201-422-000 Disk a,clch.frict |
22201-422-000 |
US $23.39 |
||
|
9
|
9
22202-422-000
Disk b,clch.frict
|
22202-422-000 |
— | ||
|
10
|
10
22321-422-000 Plate,clutch |
22321-422-000 |
US $32.37 |
||
|
11
|
11
22350-422-020
Pl clth pressure
|
22350-422-020 |
— | ||
|
12
|
12
22360-422-000
Plate,clch.lifter
|
22360-422-000 |
— | ||
|
13
|
13
22366-422-000
Pin,clch.lift gid
|
22366-422-000 |
— | ||
|
14
|
14
22401-MB0-000 Spring, clutch |
22401-MB0-000 |
from US $8.58 |
||
|
15
|
15
22850-422-000
Rod,clutch lifter
|
22850-422-000 |
— | ||
|
16
|
16
23120-422-010
Gear,prim,driven
|
23120-422-010 |
— | ||
|
17
|
17
90008-415-000
Bolt, special (6x30)
|
90008-415-000 |
— | ||
|
18
|
18
90050-MB6-000
Nut,lock,25mm
|
90050-MB6-000 |
— | ||
|
19
|
19
90201-MB0-770 Nut, lock (22mm) |
90201-MB0-770 |
US $6.36 |
||
|
20
|
20
90432-422-000
Washer,spg,22mm
|
90432-422-000 |
— | ||
|
21
|
21
90434-422-000
Washer,spg,25mm
|
90434-422-000 |
— | ||
|
22
|
22
90458-422-000
Washr,thrust,30.1
|
90458-422-000 |
— | ||
|
23
|
23
92101-06012
Bolt, hex. (6x12)
|
92101-06012 |
— | ||
| replacement | |||||
|
23
|
23
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
23
|
23
92101-06012-0A BoltHEX., 6X12 |
92101-06012-0A |
from US $0.44 |
||
|
24
|
24
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
25
|
25
96100-6004000 Bearing, radial ball, 6004 |
96100-6004000 |
from US $6.66 |
||
