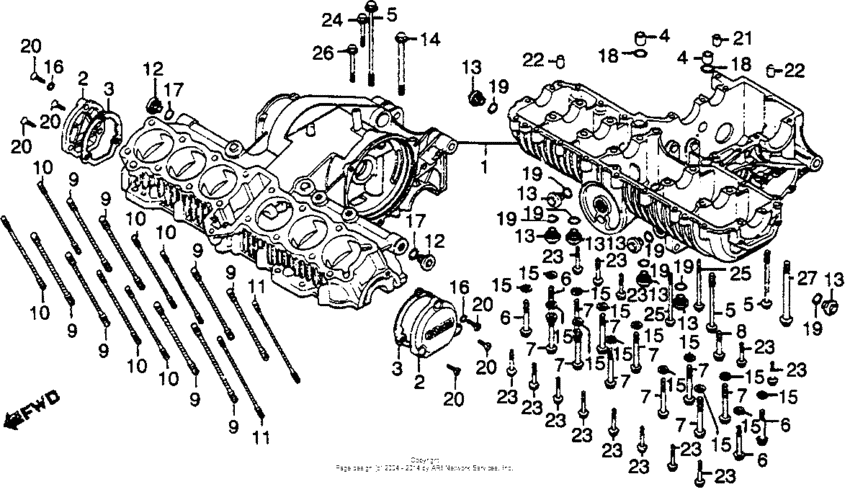

Crankcase Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-422-030
Crankcase set
Use up to Engine SN 2017146 |
11000-422-030 |
— | ||
|
2
|
2
11631-422-000 Cap, crankshaft |
11631-422-000 |
US $47.18 |
||
|
3
|
3
11636-422-306 Gasket, crank cap |
11636-422-306 |
from US $9.28 |
||
|
4
|
4
15326-300-000
Collar,oil path
|
15326-300-000 |
— | ||
|
5
|
5
90003-302-000
Bolt,hex 8x135
|
90003-302-000 |
— | ||
|
6
|
6
90003-422-000
Bolt,ubs,8x70
|
90003-422-000 |
— | ||
|
7
|
7
90004-HC4-000
Bolt, ubs (8x100)
|
90004-HC4-000 |
— | ||
|
8
|
8
90017-333-000
Bolt,frange,8x60
|
90017-333-000 |
— | ||
|
9
|
9
90031-422-003
Bolta,stud,10mm
Use up to Engine SN 2003478 |
90031-422-003 |
— | ||
|
10
|
10
90034-422-003
Bolta,stud,8mm
Use up to Engine SN 2003478 |
90034-422-003 |
— | ||
|
11
|
11
90039-422-003
Boltc,stud,8mm
Use up to Engine SN 2003478 |
90039-422-003 |
— | ||
|
12
|
12
90040-422-000
Cap,oil path
|
90040-422-000 |
— | ||
|
13
|
13
90043-422-000
Cap,sealing,18mm
|
90043-422-000 |
— | ||
|
14
|
14
90052-422-000 Bolt, flange (8x105) |
90052-422-000 |
US $2.74 |
||
|
15
|
15
90457-422-000 Washer,8.5mm |
90457-422-000 |
US $3.62 |
||
|
16
|
16
91301-216-000 O-ring, 5.5x1.5 |
91301-216-000 |
from US $3.40 |
||
|
17
|
17
91310-PH7-000 O-ring19.8X2.4 |
91310-PH7-000 |
from US $2.15 |
||
|
18
|
18
91307-KF0-003 O-ring (18x3) |
91307-KF0-003 |
from US $1.42 |
||
|
18
|
18
91307-035-000 O-ring (18x3) |
91307-035-000 |
from US $4 |
||
|
19
|
19
91310-PH3-003 O-ring18X2.4 Use from Engine SN 2001588 |
91310-PH3-003 |
from US $1.70 |
||
|
19
|
19
91333-KE5-003 O-ring (17.0x2.5)Use up to Engine SN 2001587 |
91333-KE5-003 |
from US $2.89 |
||
|
19
|
19
91333-422-003 O-ring (17.8x2.4)Use from Engine SN 2001588 |
91333-422-003 |
US $2.31 |
||
| replacement | |||||
|
19
|
19
91310-PH3-003 O-ring18X2.4 Use from Engine SN 2001588 |
91310-PH3-003 |
from US $1.70 |
||
|
20
|
20
93700-060250B Screw, oval (6x25) |
93700-060250B |
from US $0.74 |
||
|
21
|
21
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
22
|
22
94303-10160 Dowel pin10X16 |
94303-10160 |
from US $1.04 |
||
|
23
|
23
95701-0603500 Bolt, flange, 6x35 |
95701-0603500 |
from US $0.59 |
||
|
24
|
24
95701-0606500 Bolt, flange, 6x65 |
95701-0606500 |
from US $0.81 |
||
|
25
|
25
95701-0612500 Bolt, flange, 6x125 |
95701-0612500 |
US $1.48 |
||
|
26
|
26
95701-0807000 Bolt, flange, 8x70 |
95701-0807000 |
from US $0.89 |
||
|
27
|
27
95701-101-400-0 Bolt, flg (10x140) |
95701-101-400-0 |
US $1.85 |
||
