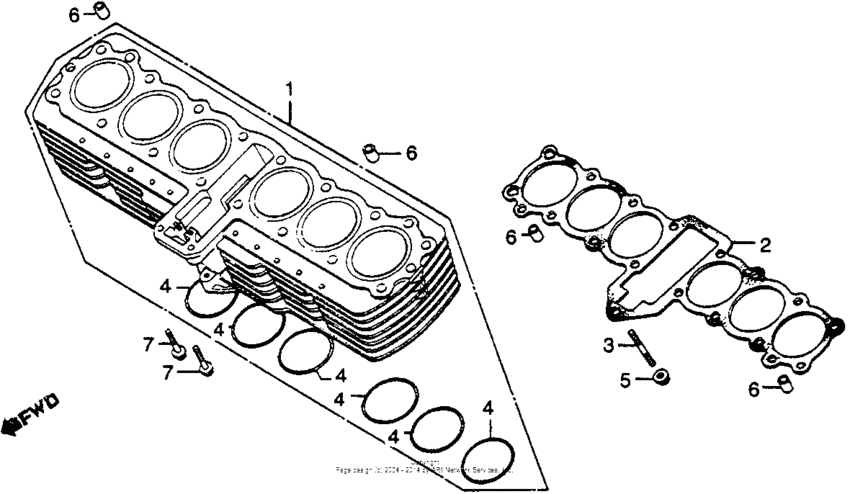

Cylinder Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12100-422-000
Cylinder
Use up to Engine SN 2017146 |
12100-422-000 |
— | ||
|
1
|
1
12100-422-010
Cylinder
Use from Engine SN 2017147 |
12100-422-010 |
— | ||
|
2
|
2
12191-422-306
Gasket, cylinder
|
12191-422-306 |
— | ||
|
3
|
3
90034-KR3-000 Bolt, stud (6x33) |
90034-KR3-000 |
from US $3.55 |
||
|
4
|
4
91304-287-000 O ring,69.8x2.0 |
91304-287-000 |
from US $6.51 |
||
|
5
|
5
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
6
|
6
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
7
|
7
95700-060-280-0 BoltFLANGE, 6X28 |
95700-060-280-0 |
from US $0.59 |
||
| replacement | |||||
|
7
|
7
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
|
7
|
7
95701-0602800 Bolt, flange, 6x28 |
95701-0602800 |
from US $0.59 |
||
