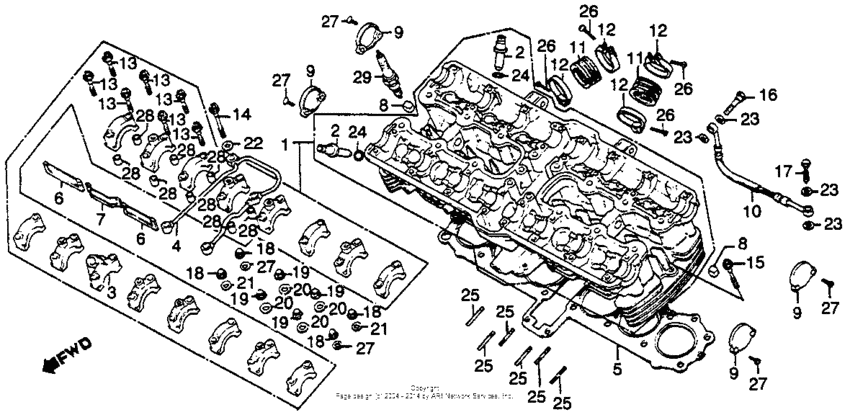

Cylinder head Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12010-422-000
Cylinder head assy
|
12010-422-000 |
— | ||
|
2
|
2
12204-461-405 Guide, valve |
12204-461-405 |
US $24.51 |
||
|
3
|
3
12216-422-305
Holder f, camshaft
|
12216-422-305 |
— | ||
|
4
|
4
12230-422-000
Pipe, oil passage
|
12230-422-000 |
— | ||
|
5
|
5
12251-422-306
Gasket, cyl hd
|
12251-422-306 |
— | ||
|
6
|
6
12261-422-000
Plate a, oil pool
|
12261-422-000 |
— | ||
|
7
|
7
12262-422-000
Plate b, oil pool
|
12262-422-000 |
— | ||
|
8
|
8
12295-422-000
Rubber, insert
|
12295-422-000 |
— | ||
|
9
|
9
12315-422-000 Cap, head cover |
12315-422-000 |
US $75.48 |
||
|
10
|
10
15520-422-003
Pipe comp.,oil
|
15520-422-003 |
— | ||
|
11
|
11
16211-422-000 Insulator,carb. |
16211-422-000 |
from US $36.20 |
||
|
12
|
12
16219-422-000 Band, insulator |
16219-422-000 |
from US $8.73 |
||
|
13
|
13
90001-422-000 Bolt,flange,6x48 |
90001-422-000 |
US $3.93 |
||
|
14
|
14
90002-422-000
Bolt,flange,6x62
|
90002-422-000 |
— | ||
|
15
|
15
90012-422-000
Bolt,ubs,8x50
|
90012-422-000 |
— | ||
|
16
|
16
90025-422-000
Bolt,oil
|
90025-422-000 |
— | ||
|
17
|
17
90045-422-000
Bolt comp.,oil
|
90045-422-000 |
— | ||
|
18
|
18
90203-422-000
Nut,cap,8mm
|
90203-422-000 |
— | ||
|
19
|
19
90204-422-000 Nut,cap,10mm |
90204-422-000 |
US $5.40 |
||
|
20
|
20
90403-438-003 Washer,seal.10mm |
90403-438-003 |
from US $5.92 |
||
|
21
|
21
90441-422-000 Washer (8mm) |
90441-422-000 |
US $7.67 |
||
|
22
|
22
90442-035-000 Washer (6mm) |
90442-035-000 |
from US $2.29 |
||
|
23
|
23
90545-300-000 Washer |
90545-300-000 |
from US $3.18 |
||
|
24
|
24
91301-200-000 O-ring (10x1.6) |
91301-200-000 |
from US $2.37 |
||
|
25
|
25
92700-06050-0E Bolt,stud,6x50 |
92700-06050-0E |
from US $0.74 |
||
|
26
|
26
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
27
|
27
93700-050-160-B Screw,cross 5x16 |
93700-050-160-B |
from US $0.52 |
||
|
28
|
28
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
29
|
29
98069-57717 Plug,spark(Optional). |
98069-57717 |
from US $3.57 |
||
|
29
|
29
98069-57727 Plug,spark (x22es(Optional). |
98069-57727 |
from US $2.28 |
||
|
29
|
29
98069-58717 Plug,spark |
98069-58717 |
US $3.57 |
||
|
29
|
29
98069-58727 Plug,spark |
98069-58727 |
from US $3.21 |
||
|
29
|
29
98069-59717 Plug,(d9ea ngk)(Optional). |
98069-59717 |
from US $3.81 |
||
|
29
|
29
98069-59727 Plug(x27es-u)(Optional). |
98069-59727 |
US $6.66 |
