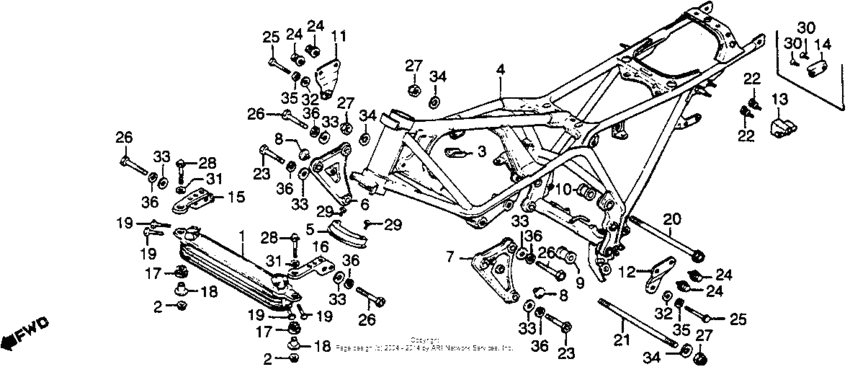

Frame + oil cooler Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15600-422-003
Cooler comp.,oil
|
15600-422-003 |
— | ||
|
1
|
1
15600-422-004
Cooler comp.,oil
|
15600-422-004 |
— | ||
|
2
|
2
94050-06070 Nut |
94050-06070 |
from US $0.52 |
||
|
3
|
3
31511-107-300 RubberUse from Frame SN 2007031 |
31511-107-300 |
from US $4.74 |
||
|
4
|
4
50100-422-020ZA
Frame *nh1*
Use up to Frame SN 2000978 |
50100-422-020ZA |
— | ||
|
5
|
5
50341-422-000 Cover,handle stpr |
50341-422-000 |
US $17.32 |
||
|
6
|
6
50351-422-000
Brkt,r.eng.hanger
|
50351-422-000 |
— | ||
|
7
|
7
50352-422-000
Brkt,l.eng.hanger
|
50352-422-000 |
— | ||
|
8
|
8
50354-422-000 Plug, engine hanger |
50354-422-000 |
US $4 |
||
|
9
|
9
50356-422-000
Collar a,eng.side
|
50356-422-000 |
— | ||
|
10
|
10
50357-422-010
Collar b,eng.hngr
Use up to Frame SN 2000049 |
50357-422-010 |
— | ||
|
11
|
11
50361-422-000
Brkt,r.eng.hanger
|
50361-422-000 |
— | ||
|
12
|
12
50362-422-000
Brkt,l.eng.hanger
|
50362-422-000 |
— | ||
|
13
|
13
50710-086-007 Holder assy., helmet |
50710-086-007 |
from US $24.77 |
||
|
14
|
14
50715-149-300
Cover,pan screw
|
50715-149-300 |
— | ||
|
15
|
15
55105-422-010
Stay,r.oil cooler
|
55105-422-010 |
— | ||
|
16
|
16
55106-422-010
Stay,l.oil cooler
|
55106-422-010 |
— | ||
|
17
|
17
55107-422-000
Rub,oil cooler mt
|
55107-422-000 |
— | ||
|
18
|
18
85202-371-000
Collar,radia set
|
85202-371-000 |
— | ||
|
19
|
19
96001-0603507 Bolt, flange (6x35) |
96001-0603507 |
from US $0.74 |
||
|
20
|
20
90102-422-000
Bolt,eng.hanger
|
90102-422-000 |
— | ||
|
21
|
21
90103-422-010
Bolt,rr.eng.hang.
|
90103-422-010 |
— | ||
|
23
|
23
90149-422-010
Bolt,socket,10x40
Use up to Frame SN 2004639 |
90149-422-010 |
— | ||
|
24
|
24
90173-422-000
Bolt-washer,8x20
|
90173-422-000 |
— | ||
|
25
|
25
95301-080-450-0 Bolt, hex. (8x45) |
95301-080-450-0 |
US $0.74 |
||
|
26
|
26
90175-422-010
Bolt,10x42
Use up to Frame SN 2004639 |
90175-422-010 |
— | ||
|
27
|
27
90354-422-000
Nut,self lock14mm
|
90354-422-000 |
— | ||
|
28
|
28
92600-06025-0G
Bolt,hex.cap,6x25
|
92600-06025-0G |
— | ||
|
29
|
29
93000-040060G Bolt, hex. (4x6) |
93000-040060G |
US $0.37 |
||
|
30
|
30
93500-060-080-H ScrewPAN, 6X8 |
93500-060-080-H |
from US $0.44 |
||
|
30
|
30
93500-06008 Screw, pan, 6x8 |
93500-06008 |
from US $0.44 |
||
|
30
|
30
93500-060080A Screw, pan, 6x8 |
93500-060080A |
from US $0.44 |
||
|
31
|
31
94101-06700 WasherPLAIN, 6MM |
94101-06700 |
from US $0.37 |
||
|
32
|
32
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
33
|
33
9410110000 Washer, plain, 10mm |
9410110000 |
from US $0.44 |
||
|
34
|
34
90600-422-000
Washer,plain,14mm
Use from Frame SN 2005675 |
90600-422-000 |
— | ||
|
34
|
34
9410214000 Washer, plain, 14mmUse up to Frame SN 2005674 |
9410214000 |
from US $0.41 |
||
|
35
|
35
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
36
|
36
94111-10000 WasherSPRING, 10MM |
94111-10000 |
from US $0.44 |
