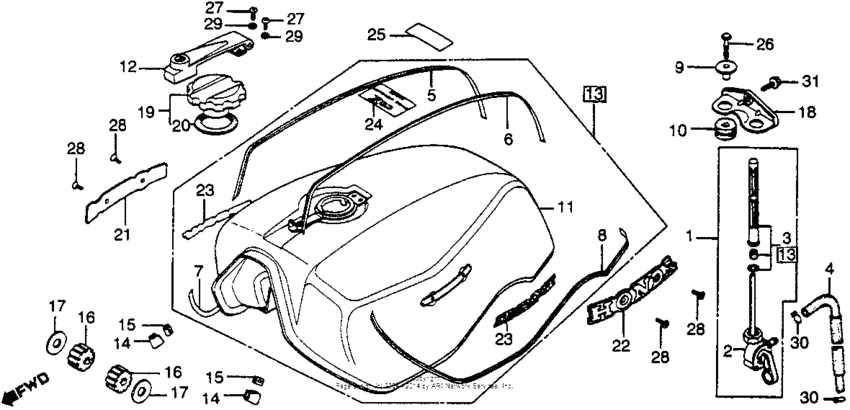

Fuel tank Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16950-422-015 Fuel Cock Assy (for the Fuel tank)Use up to Frame SN 2012453 |
16950-422-015 |
from US $125.31 |
||
|
1
|
1
16950-469-005
Cock assy.,fuel
(Optional). |
16950-469-005 |
— | ||
|
2
|
2
16951-422-015
Body comp.,cock
Use up to Frame SN 2012453 |
16951-422-015 |
— | ||
|
2
|
2
16951-469-005
Body comp.,cock
(Optional). |
16951-469-005 |
— | ||
|
3
|
3
16952-422-005 Strn.set,fuel |
16952-422-005 |
US $57.99 |
||
| replacement | |||||
|
3
|
3
16952-469-005 Filter set, fuel |
16952-469-005 |
US $93.93 |
||
|
3
|
3
16952-469-005 Filter set, fuel |
16952-469-005 |
US $93.93 |
||
|
4
|
4
16955-469-000
Tube,fuel,7.3x190
(Optional). |
16955-469-000 |
— | ||
|
5
|
5
17503-422-300
Stripe,tank,r,upp
|
17503-422-300 |
— | ||
|
6
|
6
17504-422-300
Stripe,tank,l,upp
|
17504-422-300 |
— | ||
|
7
|
7
17506-422-300ZA
Stripe tank*a-71*
|
17506-422-300ZA |
— | ||
|
7
|
7
17506-422-300ZB
Stripe,tank*a-23*
|
17506-422-300ZB |
— | ||
|
8
|
8
17507-422-300ZA
Stripe tank*a-71*
|
17507-422-300ZA |
— | ||
|
8
|
8
17507-422-300ZB
Stripe tank*a-23*
|
17507-422-300ZB |
— | ||
|
9
|
9
17508-422-000
Collar,tank rr.
|
17508-422-000 |
— | ||
|
10
|
10
17509-422-000
Cush,fuel tank rr
|
17509-422-000 |
— | ||
|
11
|
11
17520-422-010ZA
Tank *nh-101m-u*
|
17520-422-010ZA |
— | ||
|
11
|
11
17520-422-010ZB
Tank *r-101c-u*
|
17520-422-010ZB |
— | ||
|
11
|
11
17520-422-010ZC
Tank,fuel *nh-1*
|
17520-422-010ZC |
— | ||
|
12
|
12
17530-443-305
Lid set,fuel tank
|
17530-443-305 |
— | ||
|
14
|
14
17541-422-000
Mole,fuel tank fr
|
17541-422-000 |
— | ||
|
15
|
15
17545-323-010 Clip b,tank mole |
17545-323-010 |
from US $2.48 |
||
|
16
|
16
17611-422-000
Cush,fuel tank fr
|
17611-422-000 |
— | ||
|
17
|
17
17613-422-000
Washer,tank cush.
|
17613-422-000 |
— | ||
|
18
|
18
17615-422-000
Stay,fuel tank rr
|
17615-422-000 |
— | ||
|
19
|
19
17620-469-000
Cap comp filler
|
17620-469-000 |
— | ||
|
20
|
20
17632-422-000 Packing,fuel cap |
17632-422-000 |
US $11.54 |
||
|
21
|
21
87121-422-010
Emblem,r.tank
Use up to Frame SN 2006885 |
87121-422-010 |
— | ||
|
22
|
22
87122-422-010
Emblem,l.tank
Use up to Frame SN 2006885 |
87122-422-010 |
— | ||
|
23
|
23
87123-422-000
Mark,fuel tank.
|
87123-422-000 |
— | ||
|
24
|
24
87126-422-000
Mark,tank top
|
87126-422-000 |
— | ||
|
25
|
25
87560-422-300
Mark,caution
|
87560-422-300 |
— | ||
|
26
|
26
92101-06025-0A Bolt, hex., 6x25 |
92101-06025-0A |
from US $0.52 |
||
|
27
|
27
93500-040-060-A ScrewPAN, 4X6 |
93500-040-060-A |
from US $0.37 |
||
|
28
|
28
93700-030-060-G Screw,oval,3x6 |
93700-030-060-G |
from US $0.37 |
||
|
29
|
29
94111-04000 WasherSPRING, 4MM |
94111-04000 |
from US $0.37 |
||
|
30
|
30
95002-02120 ClipTUBE (B12) (Optional). |
95002-02120 |
from US $0.52 |
||
|
31
|
31
95701-080-160-8 BoltFLANGE, 8X16 |
95701-080-160-8 |
from US $0.59 |
||
