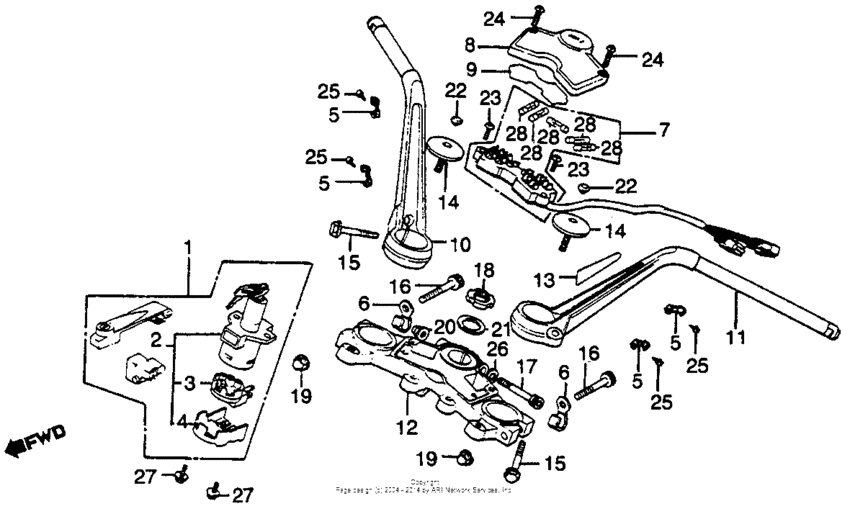

Handlebar + top bridge Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35010-449-860
Key set
Use up to Frame SN 2007079 |
35010-449-860 |
— | ||
|
2
|
2
35100-422-017
Switch assy
Use up to Frame SN 2007079 |
35100-422-017 |
— | ||
|
3
|
3
35101-422-007
Base comp,contact
|
35101-422-007 |
— | ||
|
4
|
4
35102-431-007 Cover,switch |
35102-431-007 |
US $5.48 |
||
|
5
|
5
35205-422-000
Clip,wire cord
|
35205-422-000 |
— | ||
|
6
|
6
35210-422-000
Clamp,switch cord
|
35210-422-000 |
— | ||
|
7
|
7
38200-KE8-000
Plate assy.,fuse
|
38200-KE8-000 |
— | ||
|
8
|
8
38210-422-000
Cover,fuse plate
|
38210-422-000 |
— | ||
|
9
|
9
38215-MA2-300
Label,fuse
|
38215-MA2-300 |
— | ||
|
10
|
10
53120-422-671
Pipe r strg hndl
|
53120-422-671 |
— | ||
|
11
|
11
53160-422-671
Pipe l strg hndl
|
53160-422-671 |
— | ||
|
12
|
12
53230-422-000
Bridge,fork top
|
53230-422-000 |
— | ||
|
14
|
14
90107-422-000
Bolt,hndl.setting
|
90107-422-000 |
— | ||
|
15
|
15
90118-VM6-000 Bolt, flange (8x40) |
90118-VM6-000 |
from US $3.40 |
||
|
16
|
16
90167-422-000
Bolt,socket,7x55
|
90167-422-000 |
— | ||
|
17
|
17
90168-422-000
Bolt,socket,8x75
|
90168-422-000 |
— | ||
|
18
|
18
90304-371-000
Nut, steering stem
|
90304-371-000 |
— | ||
|
19
|
19
90360-428-900
Nut, cap. (7mm)
|
90360-428-900 |
— | ||
|
20
|
20
90443-KF9-900 Nut, cap (8mm) |
90443-KF9-900 |
from US $5.33 |
||
|
21
|
21
90503-283-000 Washer |
90503-283-000 |
from US $4.29 |
||
|
22
|
22
91456-371-770 Cap, socket bolt |
91456-371-770 |
from US $3.33 |
||
|
23
|
23
93500-050-160-A Screw |
93500-050-160-A |
from US $0.37 |
||
|
24
|
24
93500-050-200-G ScrewPAN, 5X20 |
93500-050-200-G |
from US $0.37 |
||
|
25
|
25
93901-34180 ScrewTAPPING, 4X8 |
93901-34180 |
US $0.37 |
||
|
26
|
26
94102-08700 WasherPLAIN, 8MM |
94102-08700 |
from US $0.37 |
||
|
27
|
27
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
28
|
28
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
