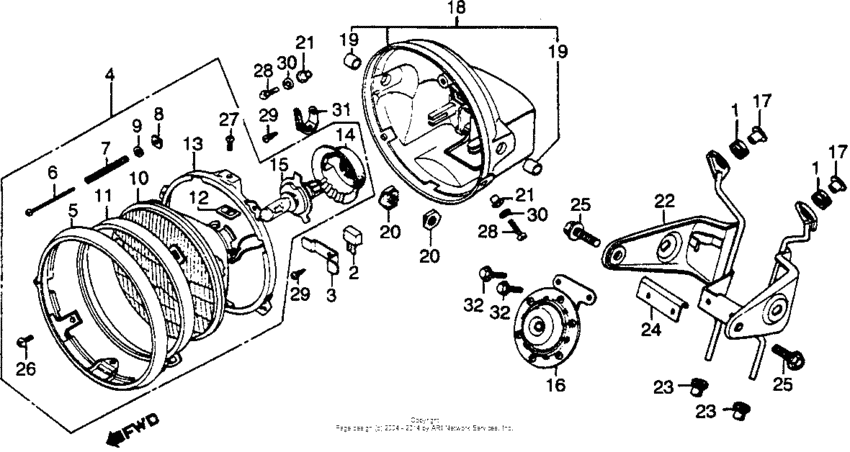

Headlight Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17245-107-010 Rubber |
17245-107-010 |
from US $2.23 |
||
|
2
|
2
31700-124-003
Rectifier assy., silicon (stanley)
|
31700-124-003 |
— | ||
| replacement | |||||
|
2
|
2
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
2
|
2
31700-124-008 Rectifier assy., silicon (shindengen) |
31700-124-008 |
from US $25.02 |
||
|
3
|
3
32901-422-000
Plate,coupler set
|
32901-422-000 |
— | ||
|
4
|
4
33100-422-671
Headlight assy
|
33100-422-671 |
— | ||
|
5
|
5
33101-422-671
Rim,headlight
|
33101-422-671 |
— | ||
|
6
|
6
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
6
|
6
33103-346-670 Screw |
33103-346-670 |
from US $6.82 |
||
| replacement | |||||
|
6
|
6
33103-MW3-610 Screw,beam adjust |
33103-MW3-610 |
from US $9.98 |
||
|
7
|
7
33107-300-003 Spring |
33107-300-003 |
from US $3.40 |
||
|
8
|
8
33117-001-023 Nut, headlight beam adjusting |
33117-001-023 |
from US $2.59 |
||
|
9
|
9
33119-371-003 Washer |
33119-371-003 |
from US $2.81 |
||
|
10
|
10
33120-431-671
Unit, headlight.
|
33120-431-671 |
— | ||
|
11
|
11
33121-405-671
Ring, retaining
|
33121-405-671 |
— | ||
|
12
|
12
33128-292-670 Nut, unit holder |
33128-292-670 |
from US $3.51 |
||
|
13
|
13
33153-422-003
Ring,mounting
|
33153-422-003 |
— | ||
|
14
|
14
33180-422-003 Cover, rubber |
33180-422-003 |
US $19.16 |
||
|
15
|
15
34901-MC7-601AH Bulb (12v60/55w) |
34901-MC7-601AH |
US $38.35 |
||
| replacement | |||||
|
15
|
15
34901-MC7-602 Bulb (12v 60/55w) |
34901-MC7-602 |
from US $45.32 |
||
|
16
|
16
38110-KJ9-730
Horn assy. (high)
|
38110-KJ9-730 |
— | ||
|
17
|
17
61104-422-000 Collar, setting |
61104-422-000 |
from US $5.18 |
||
|
18
|
18
61301-469-000
Case,headlight
Use up to Frame SN 2006840 |
61301-469-000 |
— | ||
|
19
|
19
61302-300-000 Collar,light case |
61302-300-000 |
US $6.66 |
||
|
20
|
20
61303-422-000
Nut,hd/lt case
|
61303-422-000 |
— | ||
|
21
|
21
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
22
|
22
61311-422-020
Stay,headlight
Use up to Frame SN 2002869 |
61311-422-020 |
— | ||
|
23
|
23
61313-422-000 Grommet b, headlight |
61313-422-000 |
from US $6.17 |
||
|
24
|
24
61315-422-303
Guard, harness
Use up to Frame SN 2002869 |
61315-422-303 |
— | ||
|
25
|
25
90151-422-000 Bolt,hd/lt case |
90151-422-000 |
US $10.42 |
||
|
26
|
26
93500-030-080-A ScrewPAN, 3X8 |
93500-030-080-A |
from US $0.37 |
||
|
27
|
27
93500-050-080-H ScrewPAN, 5X8 |
93500-050-080-H |
from US $0.37 |
||
|
28
|
28
93500-050-160-B ScrewPAN, 5X16 |
93500-050-160-B |
from US $0.52 |
||
|
29
|
29
93901-34310 ScrewTAPPING, 4X12 |
93901-34310 |
from US $0.37 |
||
|
30
|
30
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
31
|
31
9459145000 Clip, wire, 4x50 |
9459145000 |
from US $1.04 |
||
|
32
|
32
95701-060-120-0 BoltFLANGE, 6X12 Use from Frame SN 2002870 |
95701-060-120-0 |
from US $0.52 |
||
|
32
|
32
95701-060-160-0 BoltFLANGE, 6X16 Use up to Frame SN 2002869 |
95701-060-160-0 |
from US $0.52 |
||
