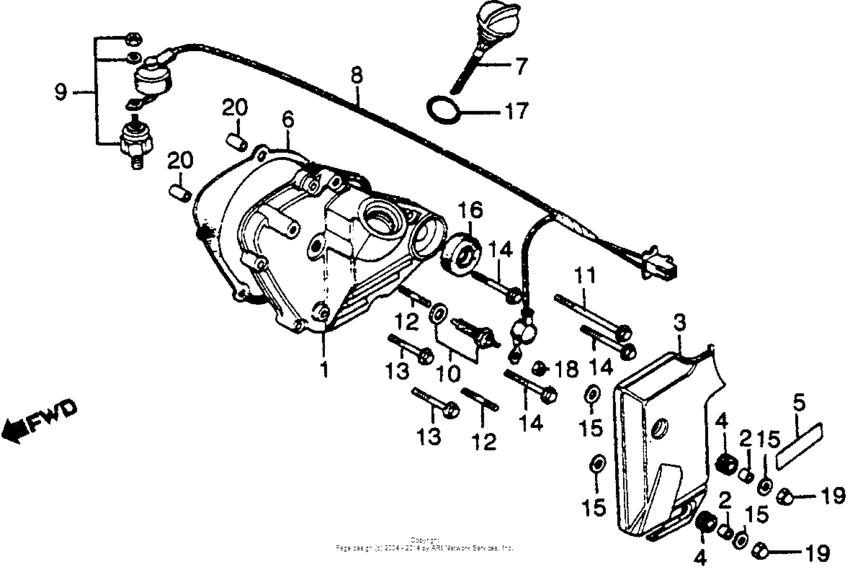

Left cover Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11341-422-000
Cover, l
|
11341-422-000 |
— | ||
|
2
|
2
11346-371-300 Collar |
11346-371-300 |
from US $5.76 |
||
|
3
|
3
11346-422-000
Cover, l. oil hose
|
11346-422-000 |
— | ||
|
4
|
4
11347-371-300 GrommetADJUSTING COVER |
11347-371-300 |
from US $2.59 |
||
|
5
|
5
11347-422-000
Label
|
11347-422-000 |
— | ||
|
6
|
6
11395-422-306
Gasket, l
|
11395-422-306 |
— | ||
|
7
|
7
15650-422-000
Gauge,oil level
|
15650-422-000 |
— | ||
|
8
|
8
32974-422-000
Cord,oil press.sw
|
32974-422-000 |
— | ||
|
9
|
9
37240-P13-013 Switch assyOIL PRESSURE (DENSO) |
37240-P13-013 |
from US $20.67 |
||
|
10
|
10
35600-MM5-003 Switch, neutral |
35600-MM5-003 |
from US $14.28 |
||
|
11
|
11
96000-0605502 Bolt, flange (6x55) |
96000-0605502 |
from US $1.04 |
||
| replacement | |||||
|
11
|
11
96001-0605502 Bolt, flange (6x55) |
96001-0605502 |
from US $1.04 |
||
|
12
|
12
90022-422-000
Bolt,stud,6x25
|
90022-422-000 |
— | ||
|
13
|
13
96001-0602802 Bolt, flange (6x28) |
96001-0602802 |
from US $0.89 |
||
|
14
|
14
96001-0603502 Bolt, flange (6x35) |
96001-0603502 |
from US $0.74 |
||
|
15
|
15
90439-422-000
Washer,hose cover
|
90439-422-000 |
— | ||
|
16
|
16
91206-286-013 Oil seal, 14x28x7 (arai) |
91206-286-013 |
from US $4.44 |
||
|
17
|
17
91307-425-003 O-ring21.5X3.2 |
91307-425-003 |
from US $1.67 |
||
|
18
|
18
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
19
|
19
9402106020 Nut, cap (6mm) |
9402106020 |
from US $0.74 |
||
|
20
|
20
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
