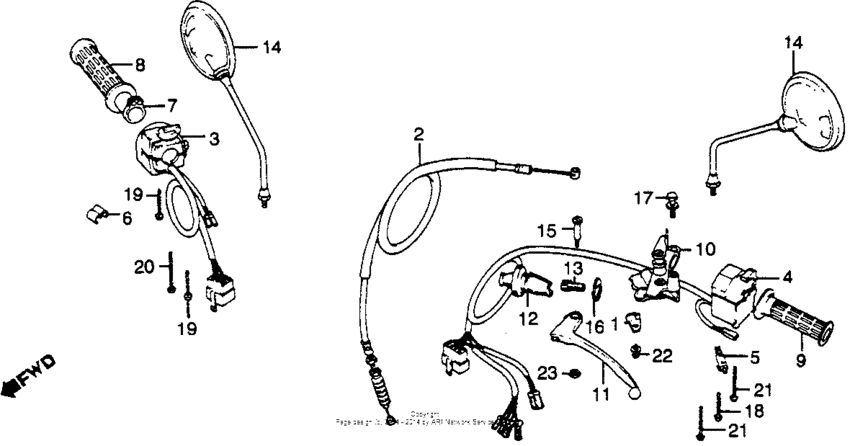

Levers + switch + cable Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17963-422-000
Holder,choke
|
17963-422-000 |
— | ||
|
2
|
2
22870-MG5-405
Cable, clutch
|
22870-MG5-405 |
— | ||
|
3
|
3
35130-422-672
Switch assy,start
Use up to Frame SN 2012607 |
35130-422-672 |
— | ||
|
4
|
4
35200-422-672
Switch,winker
Use up to Frame SN 2012607 |
35200-422-672 |
— | ||
|
5
|
5
35330-413-003 Switch, fr. lever |
35330-413-003 |
from US $14.96 |
||
|
6
|
6
46465-422-000
Clip,cable
|
46465-422-000 |
— | ||
|
7
|
7
53141-422-000 Pipe, throttle grip |
53141-422-000 |
from US $12.64 |
||
|
8
|
8
53165-422-000 Grip, r. handle |
53165-422-000 |
from US $8.21 |
||
|
9
|
9
53166-422-305 Grip, l. handle |
53166-422-305 |
from US $16.08 |
||
|
10
|
10
53170-422-010
Bracket,hndl,lev.
|
53170-422-010 |
— | ||
|
11
|
11
53178-422-010
Lever,l.handl
Use up to Frame SN 2000934 |
53178-422-010 |
— | ||
|
12
|
12
53180-422-020 Cover,hndl.leverUse up to Frame SN 2024115 |
53180-422-020 |
US $16.33 |
||
|
13
|
13
53192-422-000
Bolt,cable adj.
|
53192-422-000 |
— | ||
|
14
|
14
88120-422-000
Mirror,l.back
|
88120-422-000 |
— | ||
|
15
|
15
90113-422-000 Bolt,hndl,lever |
90113-422-000 |
from US $7.10 |
||
|
16
|
16
90321-422-000
Nut,fixing
|
90321-422-000 |
— | ||
|
17
|
17
93401-0602507 Bolt-washer (6x25) |
93401-0602507 |
US $0.59 |
||
|
18
|
18
93500-050320G Screw, pan (5x32)Use up to Frame SN 2012607 |
93500-050320G |
from US $0.44 |
||
|
18
|
18
93891-050-280-7 Screw-washer, 5x28Use from Frame SN 2012608 |
93891-050-280-7 |
from US $0.52 |
||
|
19
|
19
93500-050350G Screw, pan (5x35)Use up to Frame SN 2012607 |
93500-050350G |
from US $0.44 |
||
|
19
|
19
93891-050-450-7 Screw-washer, 5x45Use from Frame SN 2012608 |
93891-050-450-7 |
from US $0.59 |
||
|
20
|
20
93500-050450G Screw, pan (5x45)Use up to Frame SN 2012607 |
93500-050450G |
US $0.52 |
||
|
20
|
20
93891-050-280-7 Screw-washer, 5x28Use from Frame SN 2012608 |
93891-050-280-7 |
from US $0.52 |
||
|
21
|
21
93500-050-500-G Screw,pan,5x50Use up to Frame SN 2012607 |
93500-050-500-G |
US $0.52 |
||
|
21
|
21
93891-050-450-7 Screw-washer, 5x45Use from Frame SN 2012608 |
93891-050-450-7 |
from US $0.59 |
||
|
22
|
22
93892-050-120-7 Screw-washer5X12 |
93892-050-120-7 |
from US $0.44 |
||
|
23
|
23
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
