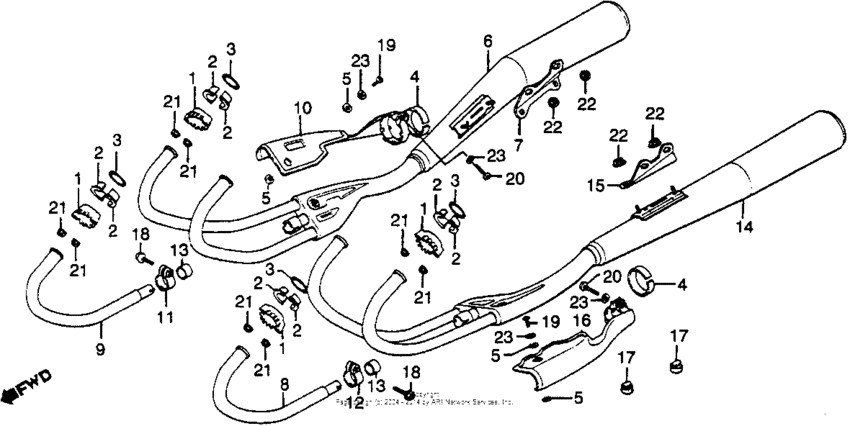

Muffler Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18231-422-000
Joint,ex.pipe
|
18231-422-000 |
— | ||
|
2
|
2
18233-422-000 Collar,ex.pipe |
18233-422-000 |
US $8.14 |
||
|
3
|
3
18291-MN4-920 Gasket, ex. pipe |
18291-MN4-920 |
from US $5.33 |
||
|
4
|
4
18292-422-010
Gasket, protector
|
18292-422-010 |
— | ||
|
5
|
5
18293-MCA-780 Packing, protector |
18293-MCA-780 |
from US $3.92 |
||
|
6
|
6
18300-422-007
Muffler comp.,ex.
|
18300-422-007 |
— | ||
|
7
|
7
18316-422-000
Stay,r.muffler
|
18316-422-000 |
— | ||
|
8
|
8
18322-422-003
Pipe 2.ex
|
18322-422-003 |
— | ||
|
9
|
9
18332-422-003
Pipe 5,ex
|
18332-422-003 |
— | ||
|
10
|
10
18350-422-003
Protector,r.chbr.
|
18350-422-003 |
— | ||
|
11
|
11
18375-MA2-405
Band r ex pipe
|
18375-MA2-405 |
— | ||
|
12
|
12
18376-MA2-405
Band l ex pipe
|
18376-MA2-405 |
— | ||
|
13
|
13
18391-MN5-650 Gasket, muffler |
18391-MN5-650 |
from US $14.14 |
||
|
14
|
14
18400-422-007
Muffler comp.,ex.
|
18400-422-007 |
— | ||
|
15
|
15
18416-422-000
Stay,l.muffler
|
18416-422-000 |
— | ||
|
16
|
16
18450-422-003
Protector,l.chbr.
|
18450-422-003 |
— | ||
|
17
|
17
50524-MG9-000 Rubber |
50524-MG9-000 |
from US $4.28 |
||
|
18
|
18
90179-422-000
Bolt,flange,8x30
|
90179-422-000 |
— | ||
|
19
|
19
93500-060104J Screw, pan, 6x10 |
93500-060104J |
US $0.81 |
||
|
20
|
20
93500-060-160-A ScrewPAN, 6X16 |
93500-060-160-A |
from US $0.44 |
||
|
21
|
21
94050-06000 NutFLANGE, 6MM |
94050-06000 |
from US $0.52 |
||
|
22
|
22
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
23
|
23
9410106200 Washer, plain, 6mm |
9410106200 |
from US $0.44 |
