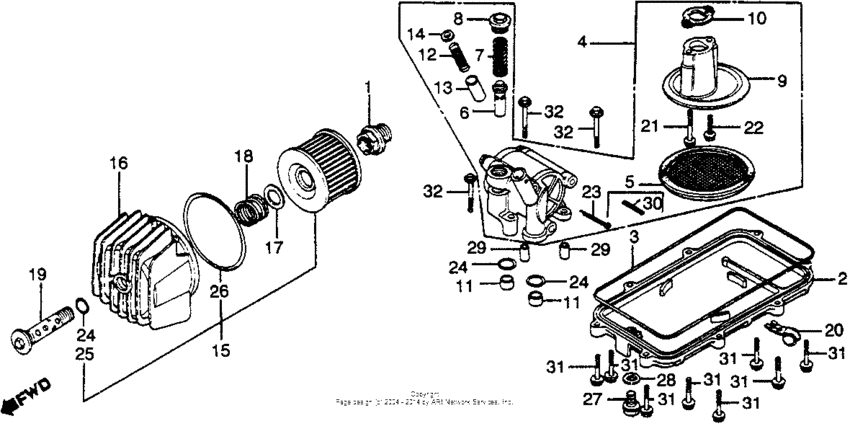

Oil filter + oil pump Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11209-422-000
Boss, oil filter
|
11209-422-000 |
— | ||
|
2
|
2
11210-422-000
Pan, oil
|
11210-422-000 |
— | ||
|
3
|
3
11315-422-000
Gasket, oil pan
|
11315-422-000 |
— | ||
|
4
|
4
15100-422-000
Pump assy.,oil
|
15100-422-000 |
— | ||
|
5
|
5
15129-422-000
Screen,oil filter
|
15129-422-000 |
— | ||
|
6
|
6
15144-422-000
Valve,relife
|
15144-422-000 |
— | ||
|
7
|
7
15145-300-000
Spring,relief
|
15145-300-000 |
— | ||
|
8
|
8
15147-300-000
Cap,relief spring
|
15147-300-000 |
— | ||
|
9
|
9
15151-422-000
Case,oil strainer
|
15151-422-000 |
— | ||
|
10
|
10
15153-422-306
Gasket, oil strainer
|
15153-422-306 |
— | ||
|
11
|
11
15155-300-000 Collar, o-ring |
15155-300-000 |
from US $3.11 |
||
|
12
|
12
15165-422-000
Spring,relief vlv
|
15165-422-000 |
— | ||
|
13
|
13
15231-413-020 ValveRELIEF |
15231-413-020 |
from US $14.21 |
||
|
14
|
14
15233-413-000 Seat, relief valve |
15233-413-000 |
US $3.09 |
||
|
15
|
15
15410-426-010 Element, oil filter |
15410-426-010 |
from US $11.51 |
||
|
16
|
16
15411-422-000
Case,oil filter
|
15411-422-000 |
— | ||
|
17
|
17
15414-300-000 Seat |
15414-300-000 |
from US $2.44 |
||
|
18
|
18
15415-300-000 Spring |
15415-300-000 |
from US $7.67 |
||
|
19
|
19
15420-300-020 Bolt |
15420-300-020 |
US $56.71 |
||
|
21
|
21
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
22
|
22
96001-060-180-0 BoltFLANGE, 6X18 |
96001-060-180-0 |
from US $0.59 |
||
|
24
|
24
91301-MY9-003 O-ring,15x2.5 |
91301-MY9-003 |
from US $2.59 |
||
|
26
|
26
91316-300-003 O ring |
91316-300-003 |
US $3.84 |
||
| replacement | |||||
|
26
|
26
91316-425-003 O-ring (89x4.5) |
91316-425-003 |
from US $7.06 |
||
|
26
|
26
91316-425-003 O-ring (89x4.5) |
91316-425-003 |
from US $7.06 |
||
|
27
|
27
92800-12000 BoltDRAIN PLUG, 12MM |
92800-12000 |
from US $1.30 |
||
|
28
|
28
94109-12000 WasherDRAIN PLUG, 12MM |
94109-12000 |
from US $0.34 |
||
|
29
|
29
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
30
|
30
94305-30202 PinSPRING, 3X20 |
94305-30202 |
from US $0.74 |
||
|
31
|
31
95700-060-250-8 BoltFLANGE, 6X25 |
95700-060-250-8 |
US $27.50 |
||
| replacement | |||||
|
31
|
31
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
31
|
31
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
32
|
32
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
