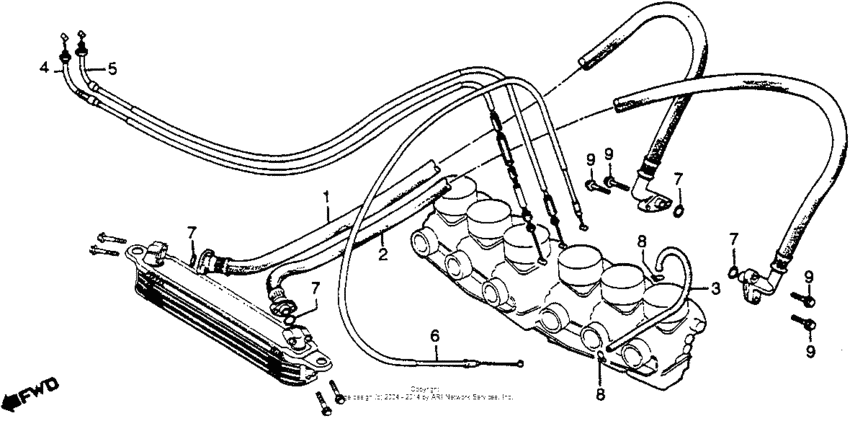

Oil hose + cable Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15510-422-000
Hose comp.,r.oil
|
15510-422-000 |
— | ||
|
2
|
2
15516-422-000
Hose comp.,l.oil
|
15516-422-000 |
— | ||
|
3
|
3
16955-422-000
Tube,fuel 6.5x140
|
16955-422-000 |
— | ||
|
4
|
4
17910-422-671
Cable a throttle
|
17910-422-671 |
— | ||
|
5
|
5
17920-445-700
Cable B, Throttle
|
17920-445-700 |
— | ||
|
6
|
6
17950-422-671
Cable comp,choke
|
17950-422-671 |
— | ||
|
7
|
7
91301-MY9-003 O-ring,15x2.5 |
91301-MY9-003 |
from US $2.59 |
||
|
8
|
8
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
9
|
9
95701-060-250-0 BoltFLANGE, 6X25 |
95701-060-250-0 |
from US $0.59 |
