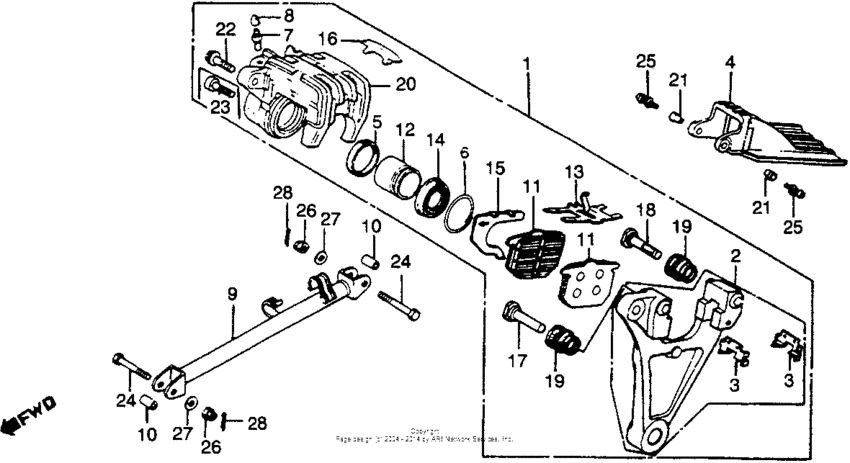

Rear brake caliper Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
NI
|
NI
06435-461-405
Pad set, brake
|
06435-461-405 |
— | ||
|
1
|
1
43100-422-016 Caliper assy.,rr. |
43100-422-016 |
US $356.25 |
||
|
2
|
2
43110-410-006
Bracket,rr
|
43110-410-006 |
— | ||
|
3
|
3
43112-410-006
Retainer,rr bkt
|
43112-410-006 |
— | ||
|
4
|
4
43140-410-000
Cover,rr.disk
|
43140-410-000 |
— | ||
|
5
|
5
43209-371-006 SealPISTON (38MM) |
43209-371-006 |
from US $8.88 |
||
|
6
|
6
43218-371-006 Clip,dust cover |
43218-371-006 |
from US $10.80 |
||
|
7
|
7
43352-568-003 SCREW, BLEEDER (NISSIN) |
43352-568-003 |
from US $4.22 |
||
|
8
|
8
43353-548-003 CapBLEEDER SCREW |
43353-548-003 |
from US $2.25 |
||
|
9
|
9
43431-422-000
Link comp.,torque
|
43431-422-000 |
— | ||
|
10
|
10
43435-392-000 Collar, link |
43435-392-000 |
from US $5.21 |
||
|
11
|
11
45105-410-005 Pad comp |
45105-410-005 |
US $55.35 |
||
|
12
|
12
45107-410-006 Piston |
45107-410-006 |
US $50.73 |
||
|
13
|
13
45108-410-006
Pad,spring
|
45108-410-006 |
— | ||
|
14
|
14
45109-371-006 Boot,piston |
45109-371-006 |
from US $17.41 |
||
|
15
|
15
45116-371-006 Shim b,pad |
45116-371-006 |
US $11.40 |
||
|
16
|
16
45119-371-000 Cap,indicater |
45119-371-000 |
US $9.70 |
||
|
17
|
17
45131-410-006
Pin a
|
45131-410-006 |
— | ||
|
18
|
18
45132-410-006
Pin b comp.
|
45132-410-006 |
— | ||
|
19
|
19
45133-371-006 Cover, dust |
45133-371-006 |
from US $9.61 |
||
|
20
|
20
45201-442-701
Caliper,r.
|
45201-442-701 |
— | ||
|
21
|
21
61304-292-000 Collar |
61304-292-000 |
from US $3.40 |
||
|
23
|
23
90116-422-006
Bolt
|
90116-422-006 |
— | ||
|
24
|
24
90124-392-000
Bolt, rr
|
90124-392-000 |
— | ||
|
25
|
25
93892-050-180-7 Screw-washer,5x18 |
93892-050-180-7 |
US $0.44 |
||
|
26
|
26
94011-080000S Nut, self-lock (8mm) |
94011-080000S |
from US $0.65 |
||
|
27
|
27
94101-08000 WasherPLAIN, 8MM |
94101-08000 |
from US $0.37 |
||
|
28
|
28
94201-20150 Pin |
94201-20150 |
from US $0.37 |
