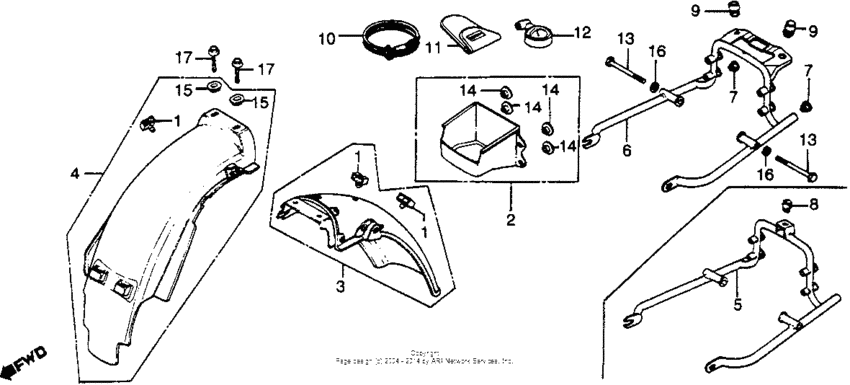

Rear fender Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32985-422-000 Grommet, cable |
32985-422-000 |
US $3.25 |
||
|
3
|
3
80100-422-670
Fender a,rr.
|
80100-422-670 |
— | ||
|
4
|
4
80105-422-000
Fender b,rr.
|
80105-422-000 |
— | ||
|
5
|
5
84101-422-000
Pipe comp.,rr.
|
84101-422-000 |
— | ||
|
7
|
7
84102-422-000
Cap,rr.pipe end
|
84102-422-000 |
— | ||
|
8
|
8
84104-422-000
Rub.,rr.cowl.cush
|
84104-422-000 |
— | ||
|
13
|
13
90120-422-000
Bolt,rr.pipe set.
|
90120-422-000 |
— | ||
|
15
|
15
90513-323-000 Washer (6x9) |
90513-323-000 |
from US $2.34 |
||
|
16
|
16
94111-08000 WasherSPRING, 8MM |
94111-08000 |
from US $0.37 |
||
|
17
|
17
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
