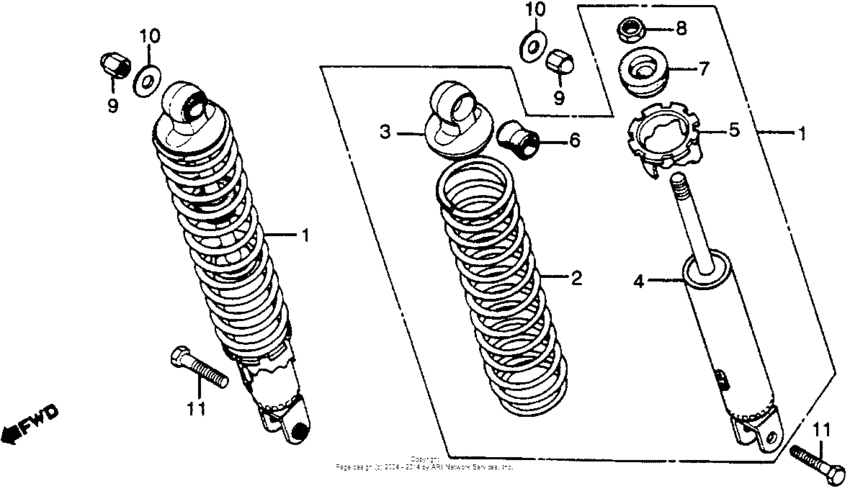

Rear shock absorber 79 Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
52400-422-013
Cushion assy,rear
|
52400-422-013 |
— | ||
|
2
|
2
52401-422-013
Spring,rr.cushion
|
52401-422-013 |
— | ||
|
3
|
3
52403-410-013
Joint comp,upper
|
52403-410-013 |
— | ||
|
4
|
4
52410-422-003
Damper comp.,rr.
|
52410-422-003 |
— | ||
|
5
|
5
52422-422-003
Adjuster,spring
|
52422-422-003 |
— | ||
|
6
|
6
52484-292-000 Rubber, joint |
52484-292-000 |
from US $4 |
||
|
7
|
7
52517-410-003
Rubber, stopper
|
52517-410-003 |
— | ||
|
8
|
8
90301-376-003
Nut, hex. (11mm)
|
90301-376-003 |
— | ||
|
9
|
9
90309-315-000 Nut, flange (10mm) |
90309-315-000 |
from US $4.97 |
||
|
10
|
10
90521-292-000 Washer (10.3mm) |
90521-292-000 |
from US $3.63 |
||
|
11
|
11
93201-100-320-B Bolt, hex. (10x32) |
93201-100-320-B |
from US $0.96 |
