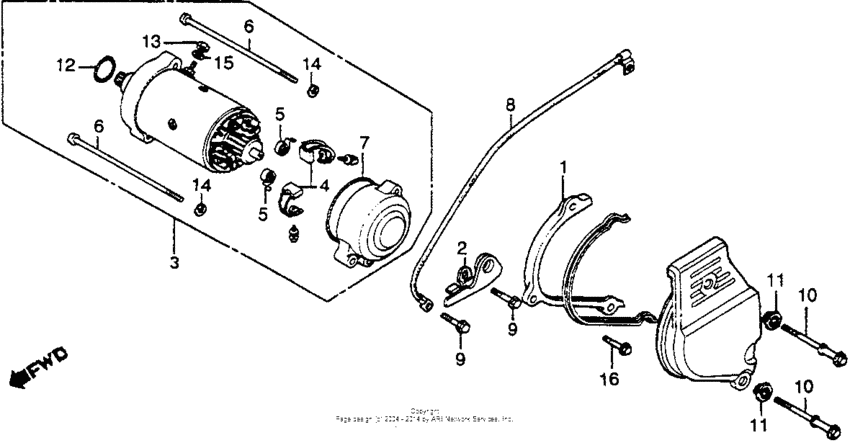

Starter motor Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11342-422-000
Spacer, l. rr. cover
|
11342-422-000 |
— | ||
|
2
|
2
11344-422-000
Protector, chain
|
11344-422-000 |
— | ||
|
3
|
3
31200-MA2-405
Motor assy,start
|
31200-MA2-405 |
— | ||
|
4
|
4
31201-292-158 Brush.set,motor |
31201-292-158 |
from US $31.88 |
||
|
5
|
5
31204-292-158 Spring, carbon brush |
31204-292-158 |
from US $6.07 |
||
|
6
|
6
31205-413-780
Bolt,start.cover
|
31205-413-780 |
— | ||
|
7
|
7
31206-402-008 O-ring (60x1.4) |
31206-402-008 |
US $11.40 |
||
|
8
|
8
32601-422-000
Cable,bat.earth
|
32601-422-000 |
— | ||
|
9
|
9
96001-0602807 Bolt, flange (6x28) |
96001-0602807 |
from US $0.74 |
||
|
10
|
10
90048-422-003
Bolt,special,6x64
|
90048-422-003 |
— | ||
|
11
|
11
90542-422-000
Rubber b,mount
|
90542-422-000 |
— | ||
|
12
|
12
91312-MG7-003 O-ring (24.4x3.1) |
91312-MG7-003 |
from US $7.99 |
||
|
13
|
13
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
14
|
14
94111-05000 WasherSPRING, 5MM |
94111-05000 |
from US $0.37 |
||
|
15
|
15
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
16
|
16
95701-060-200-0 Bolt |
95701-060-200-0 |
from US $0.52 |
