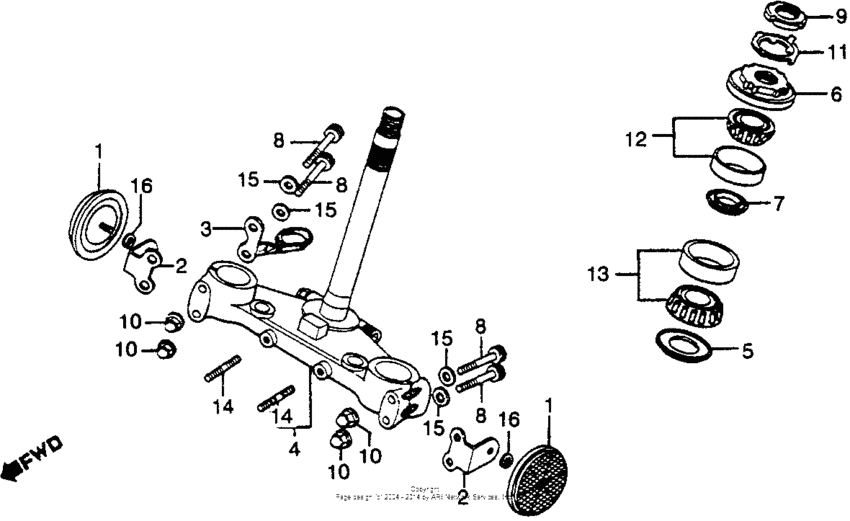

Steering stem Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33742-HB9-641 Reflector, fr. |
33742-HB9-641 |
from US $11.20 |
||
|
2
|
2
33750-422-000
Stay,fr.reflector
|
33750-422-000 |
— | ||
|
3
|
3
37265-422-000
Clamp,tach.cable
|
37265-422-000 |
— | ||
|
4
|
4
53200-422-000
Stem comp,strg.
|
53200-422-000 |
— | ||
|
5
|
5
53214-371-010 Dust seal |
53214-371-010 |
from US $6.50 |
||
|
6
|
6
53220-422-000 Thread |
53220-422-000 |
from US $14.69 |
||
|
7
|
7
53223-371-010
Holder, grease
|
53223-371-010 |
— | ||
|
8
|
8
90166-422-000 Bolt,socket,8x55 |
90166-422-000 |
US $10.74 |
||
|
10
|
10
90443-107-000 Nut, cap, 8mm |
90443-107-000 |
from US $2.23 |
||
|
12
|
12
91015-371-000
R/brg tap n/com
|
91015-371-000 |
— | ||
|
13
|
13
91016-371-000 Bearing, head pipe |
91016-371-000 |
from US $37.94 |
||
|
14
|
14
92700-06032-3B
Bolt,stud,6x32
|
92700-06032-3B |
— | ||
|
15
|
15
94102-08000 Washer, plain, 8mm |
94102-08000 |
from US $0.37 |
||
|
16
|
16
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
