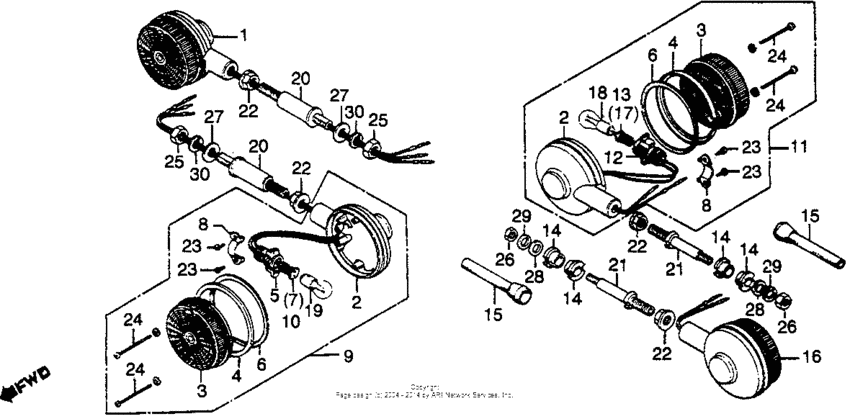

Turn signal Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-422-679
Winker assy,90
Use up to Frame SN 2003180 |
33400-422-679 |
— | ||
|
2
|
2
33401-422-672
Base comp.,winker
Use up to Frame SN 2003180 |
33401-422-672 |
— | ||
|
3
|
3
33402-422-003
Lens,winker
|
33402-422-003 |
— | ||
|
4
|
4
33404-422-003
Rim,winker
|
33404-422-003 |
— | ||
|
5
|
5
33405-422-671
Socket a,winker
|
33405-422-671 |
— | ||
|
6
|
6
33406-377-671
Packing,wink.lens
|
33406-377-671 |
— | ||
|
7
|
7
33406-422-671
Cord,r.winker
|
33406-422-671 |
— | ||
|
8
|
8
33407-422-003
Holder
|
33407-422-003 |
— | ||
|
9
|
9
33400-422-679
Winker assy,90
Use up to Frame SN 2003180 |
33400-422-679 |
— | ||
|
10
|
10
33456-422-671
Cord,l.winker
|
33456-422-671 |
— | ||
|
11
|
11
33600-422-679
Winker assy,90
Use up to Frame SN 2003180 |
33600-422-679 |
— | ||
|
12
|
12
33605-422-003
Socket b,winker
|
33605-422-003 |
— | ||
|
13
|
13
33606-422-003
Cord,r.winker
|
33606-422-003 |
— | ||
|
14
|
14
33607-422-000
Rub,rr.winker mt.
|
33607-422-000 |
— | ||
|
15
|
15
33619-422-000
Protr.,cord tube
|
33619-422-000 |
— | ||
|
16
|
16
33600-422-679
Winker assy,90
Use up to Frame SN 2003180 |
33600-422-679 |
— | ||
|
17
|
17
33656-422-003
Cord,l.winker
|
33656-422-003 |
— | ||
|
18
|
18
34905-268-671 Bulb (12v23w32cp) |
34905-268-671 |
from US $3.26 |
||
|
19
|
19
34901-504-003 Pilot lump bulb |
34901-504-003 |
US $57.50 |
||
|
19
|
19
34906-313-671 Bulb (12v23/8w) |
34906-313-671 |
from US $3.85 |
||
|
20
|
20
90129-422-611
Bolt, fr
|
90129-422-611 |
— | ||
|
21
|
21
90155-422-611
Bolt, rr
|
90155-422-611 |
— | ||
|
22
|
22
90156-422-000
Nut,winker
|
90156-422-000 |
— | ||
|
23
|
23
93901-32120 ScrewTAPPING, 3X8 |
93901-32120 |
from US $0.37 |
||
|
24
|
24
9390134710 Screw, tap (4x30) |
9390134710 |
from US $0.37 |
||
|
25
|
25
94001-140-000-S Nut, hex., 14mm |
94001-140-000-S |
from US $0.74 |
||
|
26
|
26
94002-120-000-S NutHEX., 12MM |
94002-120-000-S |
from US $0.59 |
||
|
27
|
27
94101-14000 Washer, plain, 14mm |
94101-14000 |
from US $0.44 |
||
|
28
|
28
94102-12000 WasherPLAIN, 12MM |
94102-12000 |
from US $0.44 |
||
|
29
|
29
94111-12000 WasherSPRING, 12MM |
94111-12000 |
from US $0.44 |
||
|
30
|
30
94111-14000
Spg-washer 14mm
|
94111-14000 |
— |
