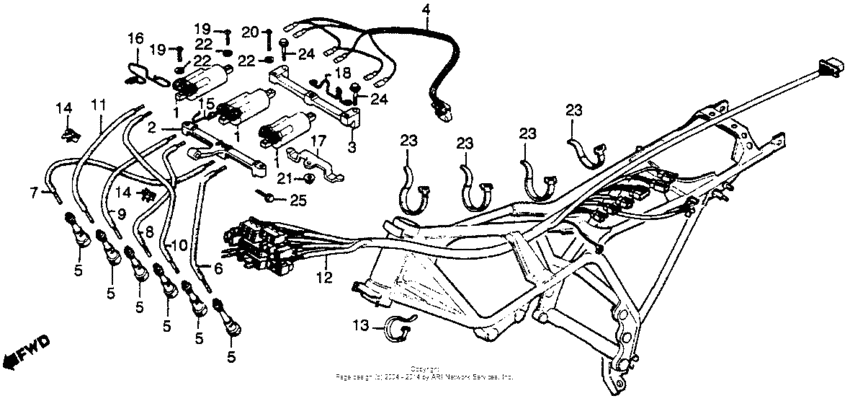

Wire harness + ignition coil Diagram Honda CBX A
- Year
- 1979
- Model code
- CBX A
- Sales region
- USA
- Frame
- CB12000042 - CB12023175
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30500-422-013 Coil,ignition |
30500-422-013 |
from US $140.80 |
||
|
2
|
2
30511-422-000
Stay a,ign.coil
|
30511-422-000 |
— | ||
|
3
|
3
30512-422-000
Stay b,ign.coil
|
30512-422-000 |
— | ||
|
4
|
4
30550-422-000
Sub cord,ignition
|
30550-422-000 |
— | ||
|
5
|
5
30700-MW3-000 Cap assy. |
30700-MW3-000 |
from US $13.55 |
||
|
6
|
6
30750-196-P00
Cord comp,h/t
|
30750-196-P00 |
— | ||
|
7
|
7
30750-MG9-P00 Cord comp h/t |
30750-MG9-P00 |
from US $19.16 |
||
|
8
|
8
30750-MA0-P00
Wire, ignition
|
30750-MA0-P00 |
— | ||
|
9
|
9
30750-MA0-P00
Wire, ignition
|
30750-MA0-P00 |
— | ||
|
10
|
10
30750-196-P00
Cord comp,h/t
|
30750-196-P00 |
— | ||
|
11
|
11
30750-MA0-P00
Wire, ignition
|
30750-MA0-P00 |
— | ||
|
12
|
12
32100-422-000
Harness,wire
|
32100-422-000 |
— | ||
|
13
|
13
32161-404-000 Band b1, wireUse from Frame SN 2002761 |
32161-404-000 |
from US $1.73 |
||
|
14
|
14
32981-422-000
Clamp,high/t cord
|
32981-422-000 |
— | ||
|
15
|
15
50462-422-000
Guide,high/t cord
|
50462-422-000 |
— | ||
|
16
|
16
50463-422-000 Guide,clch.cable |
50463-422-000 |
US $13.52 |
||
|
17
|
17
50464-422-000
Clamper,oil hose
|
50464-422-000 |
— | ||
|
18
|
18
50465-422-000
Guide,throt.cable
|
50465-422-000 |
— | ||
|
19
|
19
93500-060-250-H ScrewPAN, 6X25 |
93500-060-250-H |
from US $0.52 |
||
|
20
|
20
93500-060-350-H ScrewPAN, 6X35 |
93500-060-350-H |
US $0.52 |
||
|
21
|
21
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
22
|
22
94111-06800 WasherSPRING, 6MM |
94111-06800 |
from US $0.37 |
||
|
23
|
23
9501461200 Band a2, wire |
9501461200 |
from US $1.24 |
||
|
24
|
24
95701-060-320-8 BoltFLANGE, 6X32 |
95701-060-320-8 |
from US $0.59 |
||
|
25
|
25
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
