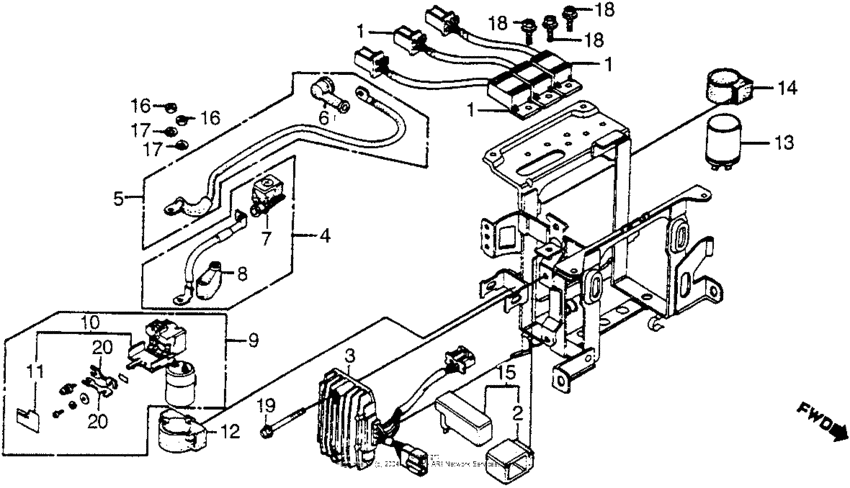

Spark unit + rectifier Diagram Honda CBX A
- Year
- 1982
- Model code
- CBX A
- Sales region
- USA
- Frame
- JH2SC060*CC400001 -
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30400-MA4-601
Unit assy.,spark
|
30400-MA4-601 |
— | ||
|
2
|
2
30401-GB4-770 Cushion.cdi unit |
30401-GB4-770 |
from US $7.10 |
||
|
3
|
3
31600-MA2-008
Reg.rect.assy.
|
31600-MA2-008 |
— | ||
|
4
|
4
32401-MA2-000
Cable,starter bat
|
32401-MA2-000 |
— | ||
|
5
|
5
32410-MA2-000
Cable,start.motor
|
32410-MA2-000 |
— | ||
|
6
|
6
32411-230-000 Cover |
32411-230-000 |
from US $5.33 |
||
|
7
|
7
32412-MA2-000 Cover, battery |
32412-MA2-000 |
from US $6.94 |
||
|
8
|
8
32413-MA2-000 Cover b, magnetic switch |
32413-MA2-000 |
from US $3.21 |
||
|
9
|
9
35850-MB0-007 Sw assy,start.mag |
35850-MB0-007 |
from US $111.52 |
||
|
10
|
10
35852-425-017
Cover,fuse
|
35852-425-017 |
— | ||
|
11
|
11
35853-425-300
Label,fuse cover
|
35853-425-300 |
— | ||
|
12
|
12
35856-425-000 Rubber |
35856-425-000 |
from US $5.92 |
||
|
13
|
13
38300-MG2-008 Relay,assy winker |
38300-MG2-008 |
US $53.72 |
||
|
14
|
14
38306-292-000 Suspension |
38306-292-000 |
from US $4.07 |
||
|
15
|
15
38900-MA2-000
Control unit
|
38900-MA2-000 |
— | ||
|
16
|
16
94002-060-000-S NutHEX., 6MM |
94002-060-000-S |
from US $0.44 |
||
|
17
|
17
94111-06000 WasherSPRING, 6MM |
94111-06000 |
from US $0.37 |
||
|
18
|
18
95700-060-100-8 BoltFLANGE, 6X10 |
95700-060-100-8 |
US $24.80 |
||
| replacement | |||||
|
18
|
18
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
18
|
18
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
19
|
19
95701-0604000 Bolt, flange, 6x40 |
95701-0604000 |
from US $0.62 |
||
|
20
|
20
9820053000 Fuse f (30a) |
9820053000 |
from US $0.74 |
||
