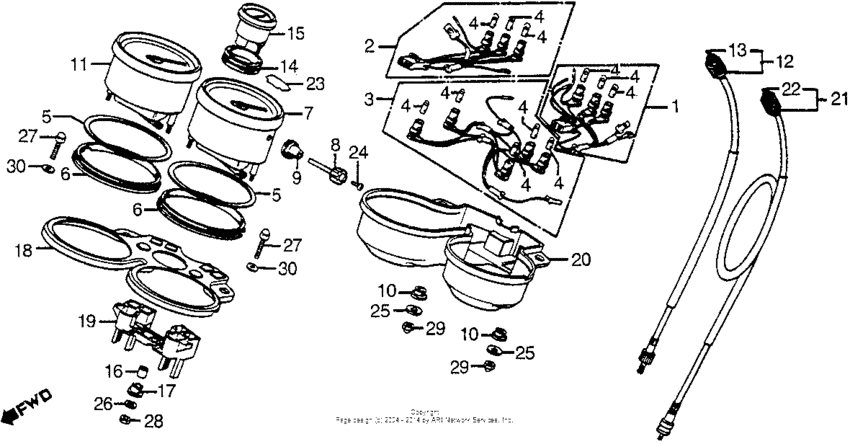

Speedometer + tachometer Diagram Honda CBX A
- Year
- 1982
- Model code
- CBX A
- Sales region
- USA
- Frame
- JH2SC060*CC400001 -
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32108-MA2-008
Sub harness h
|
32108-MA2-008 |
— | ||
|
2
|
2
32109-MA2-008
Sub harness i
|
32109-MA2-008 |
— | ||
|
3
|
3
32110-MA2-008
Sub harness j
|
32110-MA2-008 |
— | ||
|
4
|
4
34902-259-000 BulbDASH (12V 3.4W) (STANLEY) |
34902-259-000 |
US $3.03 |
||
| replacement | |||||
|
4
|
4
34902-259-003 Bulb (12v 3.4w) |
34902-259-003 |
from US $3.70 |
||
|
5
|
5
37114-422-008 Ring,meter |
37114-422-008 |
US $23.81 |
||
|
6
|
6
37115-469-000
Cushion,meter
|
37115-469-000 |
— | ||
|
7
|
7
37200-MA2-672
Speedometer (85)
|
37200-MA2-672 |
— | ||
|
8
|
8
37220-445-008 Knob, trip meter |
37220-445-008 |
US $6.96 |
||
|
9
|
9
37221-445-008 Grommet,trip knob |
37221-445-008 |
US $4.88 |
||
|
10
|
10
37244-422-000 Rubber,meter mt. |
37244-422-000 |
US $6.02 |
||
|
11
|
11
37250-MB7-830
Tachometer assy.
|
37250-MB7-830 |
— | ||
|
12
|
12
44830-165-415 Cable, speedometer |
44830-165-415 |
from US $13.58 |
||
|
13
|
13
37261-422-300 Cable,tach.inner |
37261-422-300 |
from US $7.04 |
||
|
14
|
14
37415-469-000
Cushion,voltmeter
|
37415-469-000 |
— | ||
|
15
|
15
37420-422-008
Voltmeter assy
|
37420-422-008 |
— | ||
|
16
|
16
37423-422-000
Collar,voltmeter
|
37423-422-000 |
— | ||
|
17
|
17
37424-422-000
Rub.,voltmeter mt
|
37424-422-000 |
— | ||
|
18
|
18
37610-MA2-008
Plate,meter stay
|
37610-MA2-008 |
— | ||
|
19
|
19
37611-MA2-008
Box comp.,pilot
|
37611-MA2-008 |
— | ||
|
20
|
20
37617-MA2-008
Cover,meter lower
|
37617-MA2-008 |
— | ||
|
21
|
21
44830-KB4-700 Cable,spdmt |
44830-KB4-700 |
from US $22.93 |
||
|
22
|
22
44831-356-000 Cable,spdmt.inner |
44831-356-000 |
US $8.09 |
||
|
23
|
23
87523-410-790
Label,brk.caution
|
87523-410-790 |
— | ||
|
24
|
24
90600-KJ9-700 Screw,pan,2x6 |
90600-KJ9-700 |
US $2.22 |
||
|
25
|
25
90508-MA2-000
Washer,plain,5mm
|
90508-MA2-000 |
— | ||
|
26
|
26
90555-357-000
Washer,spl.,4mm
|
90555-357-000 |
— | ||
|
27
|
27
92600-08025-0G Bolt,cap,8x25 |
92600-08025-0G |
US $1.48 |
||
|
28
|
28
94001-040-000-S NutHEX., 4MM |
94001-040-000-S |
from US $0.37 |
||
|
29
|
29
94021-050-700-S NutCAP, 5MM |
94021-050-700-S |
from US $0.47 |
||
|
30
|
30
94102-08700 WasherPLAIN, 8MM |
94102-08700 |
from US $0.37 |
||
