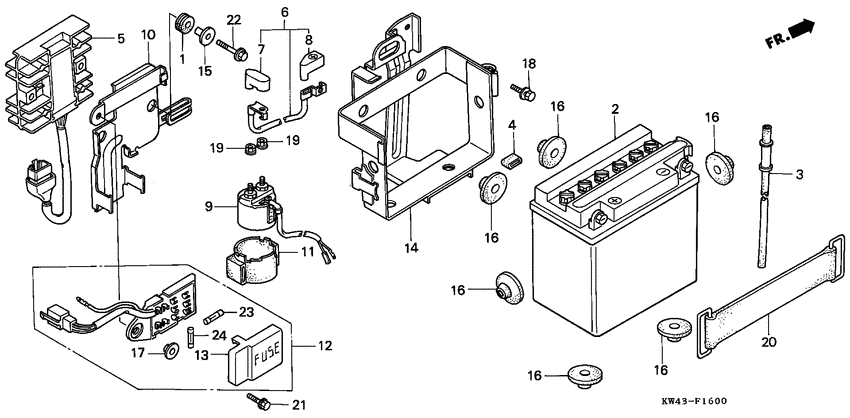

Battery Diagram Honda CD250
- Year
- 1989
- Model code
- CD250UK
- Sales region
- Australia
- Frame
- JH2MA02U*KK000002 - JH2MA02U*KK000865
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
15612-KV2-900
Grmt,oil cooler s
|
15612-KV2-900 |
— | ||
|
2
|
2
31500-KB4-612
Battery,12v9
|
31500-KB4-612 |
— | ||
|
3
|
3
31502-465-771 Tube,battery brea |
31502-465-771 |
US $6.81 |
||
|
4
|
4
31503-044-670 Rubber b |
31503-044-670 |
from US $2.22 |
||
|
5
|
5
31600-KW4-000 Rectifier assy.,r |
31600-KW4-000 |
US $209.79 |
||
|
6
|
6
32401-KW4-000
Cable,starter bat
|
32401-KW4-000 |
— | ||
|
7
|
7
32402-KR3-670 Cover a,magnetic |
32402-KR3-670 |
US $4.44 |
||
|
8
|
8
32411-ML4-000
Cover, battery terminal
|
32411-ML4-000 |
— | ||
|
9
|
9
35850-KR3-671 Sw.assy.,start ma |
35850-KR3-671 |
US $68 |
||
|
10
|
10
35851-KW4-000
Stay
|
35851-KW4-000 |
— | ||
|
11
|
11
35856-413-010 Shock rubber (mag |
35856-413-010 |
from US $8.58 |
||
|
12
|
12
38200-KR3-660 Box assy.,fuse |
38200-KR3-660 |
US $41.83 |
||
|
13
|
13
38210-KR3-671 Cover, fuse |
38210-KR3-671 |
from US $8.44 |
||
|
14
|
14
50325-402-730 Box,battery |
50325-402-730 |
US $43.52 |
||
|
15
|
15
61104-428-000
Collar, fr. fender
|
61104-428-000 |
— | ||
| replacement | |||||
|
15
|
15
61104-428-010 Collar, fr. fender |
61104-428-010 |
from US $4.07 |
||
|
16
|
16
83618-323-000 Rubber, battery box |
83618-323-000 |
from US $1.40 |
||
|
17
|
17
90522-028-000 Washer, chain case setting |
90522-028-000 |
from US $1.92 |
||
|
18
|
18
93411-060-120-0 Bolt-washer,6x12 |
93411-060-120-0 |
from US $0.52 |
||
| replacement | |||||
|
18
|
18
93401-0601200 Bolt-washer (6x12) |
93401-0601200 |
from US $0.52 |
||
|
19
|
19
94050-06080 NutFLANGE, 6MM - KK000277 |
94050-06080 |
from US $0.52 |
||
|
19
|
19
94070-06080 Nut-washer6MM KK000278 - |
94070-06080 |
from US $0.52 |
||
|
20
|
20
9501217001 Band f, battery |
9501217001 |
from US $4.74 |
||
|
21
|
21
96001-060-120-0 BoltFLANGE, 6X12 |
96001-060-120-0 |
from US $0.59 |
||
|
22
|
22
96001-060-350-0 Bolt, flange, 6x35 |
96001-060-350-0 |
from US $0.74 |
||
|
23
|
23
9820020700 Fuse b (7a) |
9820020700 |
from US $0.59 |
||
|
24
|
24
98200-21500 Fuse b15A |
98200-21500 |
from US $0.62 |
||
