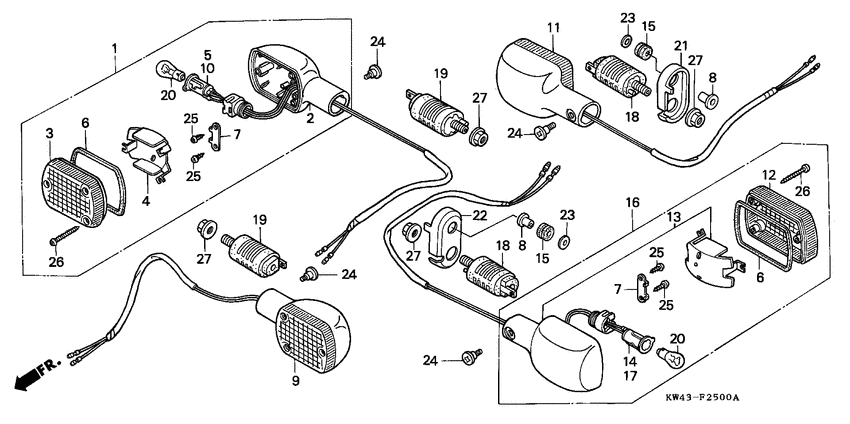

Winker Diagram Honda CD250
- Year
- 1989
- Model code
- CD250UK
- Sales region
- Australia
- Frame
- JH2MA02U*KK000002 - JH2MA02U*KK000865
- Engine Capacity
- 250
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33400-KW4-600
Winker assy.,r.fr
|
33400-KW4-600 |
— | ||
|
2
|
2
33401-MF8-003
Base winker
|
33401-MF8-003 |
— | ||
|
3
|
3
33402-MB1-003 Lens, turn signal |
33402-MB1-003 |
from US $10.01 |
||
|
4
|
4
33403-MB1-671
Reflector
|
33403-MB1-671 |
— | ||
|
5
|
5
33405-KW4-600 Cord comp.,r.fr.w |
33405-KW4-600 |
US $14.50 |
||
|
6
|
6
33407-MB1-003 Gasket, lens |
33407-MB1-003 |
from US $3.74 |
||
|
7
|
7
33408-MB1-003 Holder |
33408-MB1-003 |
US $5.19 |
||
|
8
|
8
33409-KW4-600
Collar
|
33409-KW4-600 |
— | ||
|
9
|
9
33450-KW4-600
Winker assy.,l.fr
|
33450-KW4-600 |
— | ||
|
10
|
10
33455-KW4-600 Cord comp.,l.fr.w |
33455-KW4-600 |
US $14.50 |
||
|
11
|
11
33600-KW4-600
Winker assy.,r.rr
|
33600-KW4-600 |
— | ||
|
12
|
12
33602-MB1-601
Lens,winker
|
33602-MB1-601 |
— | ||
|
13
|
13
33604-MB1-601
Base comp.,winker
|
33604-MB1-601 |
— | ||
|
14
|
14
33605-KW4-600 Cord comp.,r.rr.w |
33605-KW4-600 |
US $14.50 |
||
|
15
|
15
33606-428-610
Rubber
|
33606-428-610 |
— | ||
|
16
|
16
33650-KW4-600
Winker assy.,l.rr
|
33650-KW4-600 |
— | ||
|
17
|
17
33655-KW4-600 Cord comp.,l rr w |
33655-KW4-600 |
US $14.50 |
||
|
18
|
18
33690-ME5-840 Stay,rr.winker |
33690-ME5-840 |
US $28.15 |
||
|
19
|
19
33690-MJ1-971
Stay comp.,rr.win
|
33690-MJ1-971 |
— | ||
| replacement | |||||
|
19
|
19
33690-ME5-840 Stay,rr.winker |
33690-ME5-840 |
US $28.15 |
||
|
20
|
20
34908-634-611 Bulb12V 21W) (ECE) (STANLEY |
34908-634-611 |
from US $2.66 |
||
|
21
|
21
50356-KW4-600
Stay,r,rr winker
|
50356-KW4-600 |
— | ||
|
22
|
22
50357-KW4-600
Stay,l rr winker
|
50357-KW4-600 |
— | ||
|
23
|
23
90503-KN7-670 Washer 6.5mm |
90503-KN7-670 |
US $2.37 |
||
| replacement | |||||
|
23
|
23
90545-MJ1-971 Washer,6.5x18 |
90545-MJ1-971 |
US $2.52 |
||
|
24
|
24
90380-MB2-000 Screw, special, 6x8 |
90380-MB2-000 |
from US $3.33 |
||
|
25
|
25
93901-34320 ScrewTAPPING, 4X12 |
93901-34320 |
from US $0.37 |
||
|
26
|
26
9390134610 Screw, tap (4x25) |
9390134610 |
from US $0.37 |
||
|
27
|
27
94050-12000 Nut, flange, 12mm |
94050-12000 |
from US $0.81 |
||
