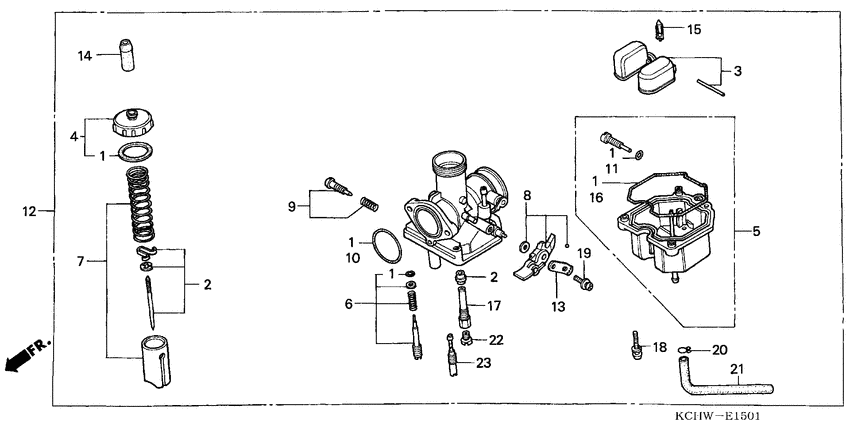

Carburetor (2) Diagram Honda CG125
- Year
- 2001
- Model code
- CG1251
- Sales region
- Total (km / h)
- Engine Capacity
- 125
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-KCH-780 Gasket set |
16010-KCH-780 |
from US $16.73 |
||
|
2
|
2
16012-KCH-780 Needle set,jet |
16012-KCH-780 |
US $21.41 |
||
|
3
|
3
16013-KEH-900 Float set |
16013-KEH-900 |
from US $36.72 |
||
|
4
|
4
16014-KCH-850 Top set |
16014-KCH-850 |
US $56.12 |
||
|
5
|
5
16015-KCH-780 Chamber set,float |
16015-KCH-780 |
US $102.09 |
||
|
6
|
6
16016-KCT-690
Screw set a
|
16016-KCT-690 |
— | ||
| replacement | |||||
|
6
|
6
16016-KC2-970 Screw set A |
16016-KC2-970 |
from US $15.10 |
||
|
7
|
7
16022-KCH-780
Valve set,thrott.
|
16022-KCH-780 |
— | ||
|
8
|
8
16025-KEH-900 Lever set, choke |
16025-KEH-900 |
US $74.44 |
||
| replacement | |||||
|
8
|
8
16046-KCH-890 Starter lever set |
16046-KCH-890 |
US $74.44 |
||
|
9
|
9
16028-KC2-761 Screw set b |
16028-KC2-761 |
US $13.87 |
||
|
10
|
10
16075-GHB-B70 O-ring (2.4x29) |
16075-GHB-B70 |
from US $6.07 |
||
|
11
|
11
16075-GHB-640 O-ring (1.3x4.3) |
16075-GHB-640 |
from US $1.78 |
||
|
12
|
12
16100-KCH-781
Carburetor assy
|
16100-KCH-781 |
— | ||
|
13
|
13
16119-440-004 Plate, stay |
16119-440-004 |
from US $7.55 |
||
|
14
|
14
16148-KB1-921 Cap, cable sealing |
16148-KB1-921 |
from US $6.96 |
||
|
15
|
15
16155-413-751 Valve, float |
16155-413-751 |
from US $25.16 |
||
|
16
|
16
16163-KCS-920 Gasket |
16163-KCS-920 |
from US $4.95 |
||
|
17
|
17
16165-KCH-780 Holder,needle jet |
16165-KCH-780 |
US $21.27 |
||
|
18
|
18
93892-040-161-8 Screw-washer4X16 |
93892-040-161-8 |
from US $0.44 |
||
| replacement | |||||
|
18
|
18
93892-040-160-8 Screw-washer4X16 |
93892-040-160-8 |
from US $0.44 |
||
|
19
|
19
93892-050-121-8 Screw-washer5X12 |
93892-050-121-8 |
from US $0.44 |
||
| replacement | |||||
|
19
|
19
93892-050-120-8 Screw-washer5X12 |
93892-050-120-8 |
from US $0.44 |
||
|
20
|
20
9500202659 Clip, tube (b6.5) |
9500202659 |
from US $0.44 |
||
|
21
|
21
95005-354-205-0 *95005-35001-50m |
95005-354-205-0 |
US $2.37 |
||
|
22
|
22
99101-GHB0950 Jet, main (#95) |
99101-GHB0950 |
from US $5.33 |
||
|
23
|
23
99104-KCH-0380 Jet comp,slow |
99104-KCH-0380 |
US $6.51 |
||
